Maintenance
Motorgrader System Five Operator’s Manual
6-10

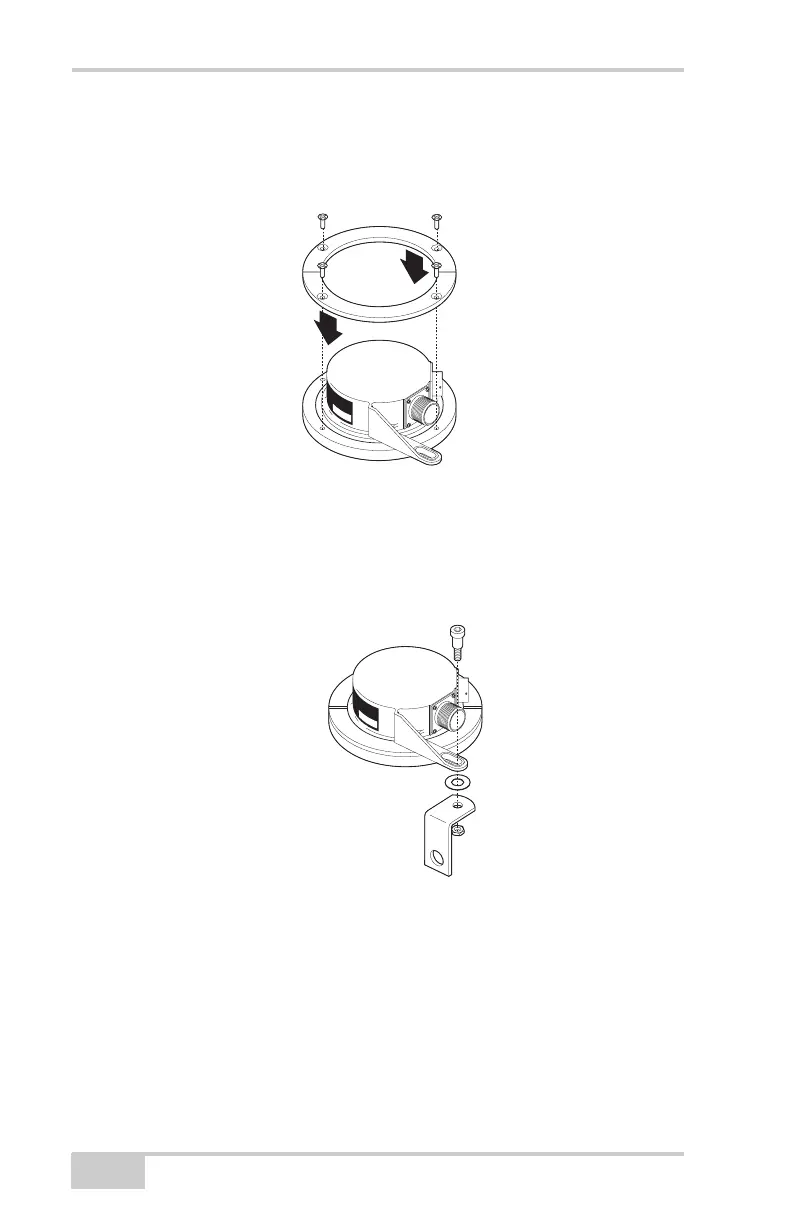

3. Place the two halves of the retaining rings on the base plate with
the screw holes aligned and replace the four screws. Tighten until
firm.
Figure 6-12.
4. Realign the Rotation Sensor arm with the "L" bracket and replace
the shoulder screw, washer, and jam nut. Tighten until firm.
Figure 6-13.
Before returning the Rotation Sensor to work, the Rotation Sensor
must be re-calibrated. Follow the procedures in the "Calibration
Rotation" section of this manual.
PLACE BOTH HALVES OF RETAINER RING
ON ROTATION SENSOR BASE
AND RE-INSTALL SCREWS
ROTATE SENSOR
UNTIL ARM LINES-UP
WITH "L"-BRACKET AND
INSTALL SHOULDER SCREW,
WASHER, AND JAM NUT
