Laser Receiver Setup
P/N 7010-0344
4-13
Raise the Trackerjack so that it's magnetic pickup sensor is above the
magnet on the bottom of the vibration pole. Once the sensor is above
the magnet, the operator can not accidentally lower the Trackerjack
off the pole using the grade adjustment knob on the Control Box.
Another magnet at the top of the vibration pole acts as an upper limit,
keeping the Trackerjack from climbing off the top of the pole.
Position the "L"-Bar horizontally so that the Laser Trackerjack is near
the end of the moldboard. Position the vibration pole vertically so the
Trackerjack is at an optimum height for the job application. It is
always best to keep the Laser Transmitter and Trackerjack as low as
possible. For most jobs, position the vibration pole so the receiver is
just above the machine frame when the Trackerjack is at the lowest
position.

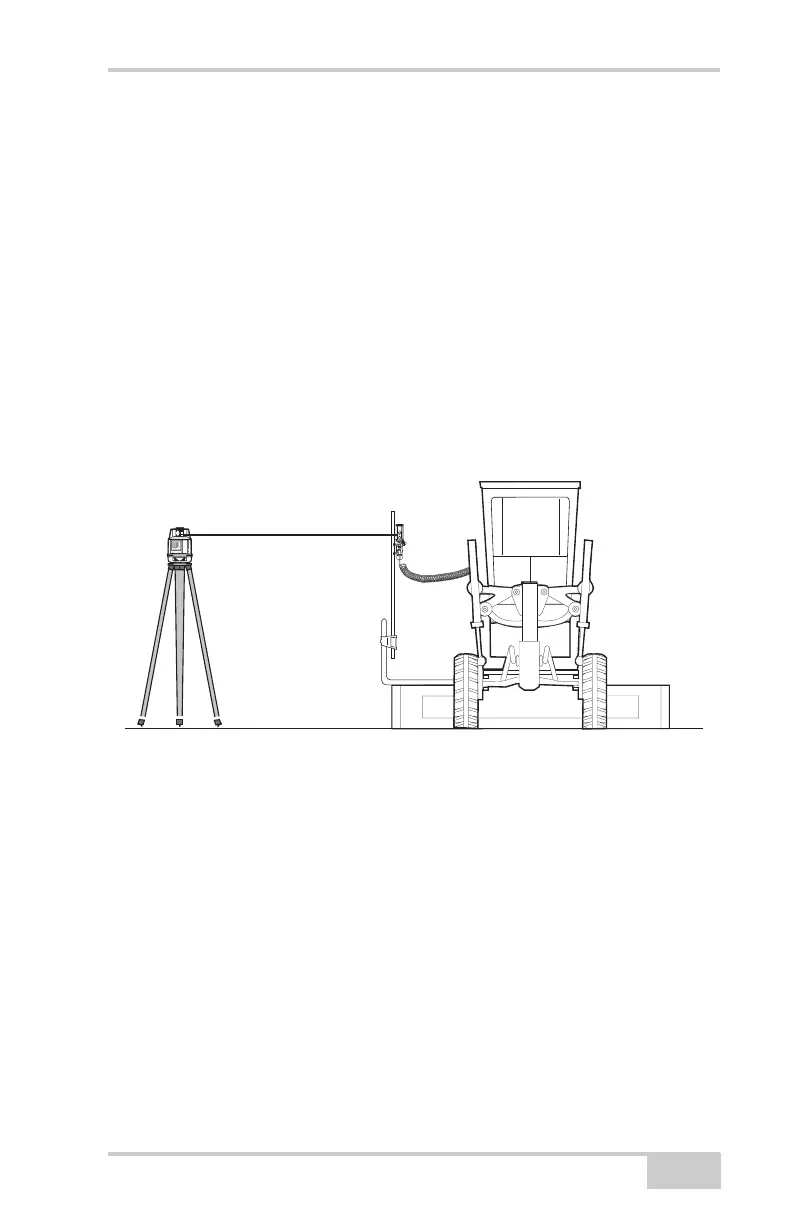

Figure 4-18.
+
