Maintenance
Motorgrader System Five Operator’s Manual
6-4

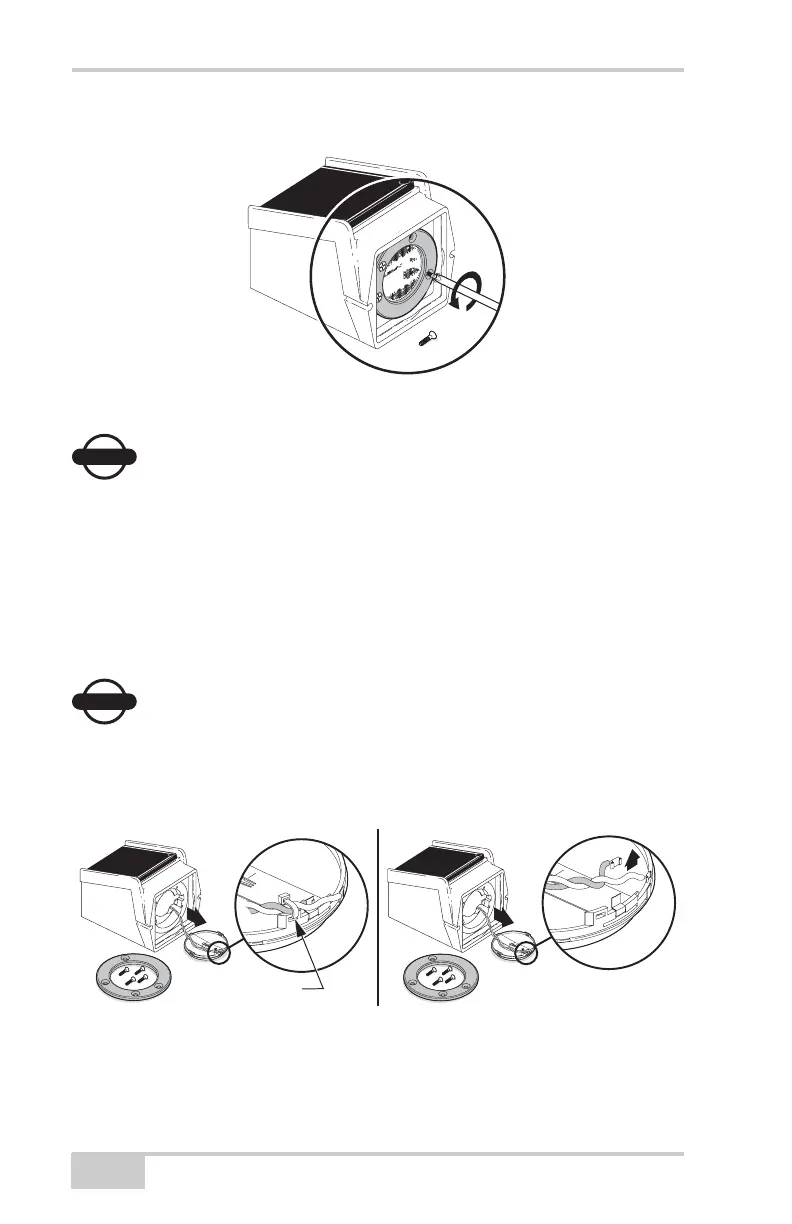

Figure 6-2.
NOTICE
NOTICE
Always remove and discard used "O"-Rings. Used "O"-
Rings will be distorted and may loose there elasticity due
to weather or exposure to diesel fumes.
3. The Transducer can now be gently pulled out. Use a SMALL pair
of dikes to gently cut the Ty-Wrap then remove the small wire
connectors from their tabs.
NOTICE
NOTICE
When cutting the Ty-Wrap, be careful not to cut or damage
the wires.
Figure 6-3.
CUT
TY-WRAP
CAREFULLY
REMOVE WIRE
CONNECTORS
