Calibration
Motorgrader System Five Operator’s Manual
3-6
3. Turn the machine around 180 degrees and line up the blade on the
previous mark (The blade can be rotated or side shifted to make
cutting edge match). This is position #2.
Push the "ENTER" button.
4. Wait 5 seconds until you hear a double beep, and the calibration is
complete.

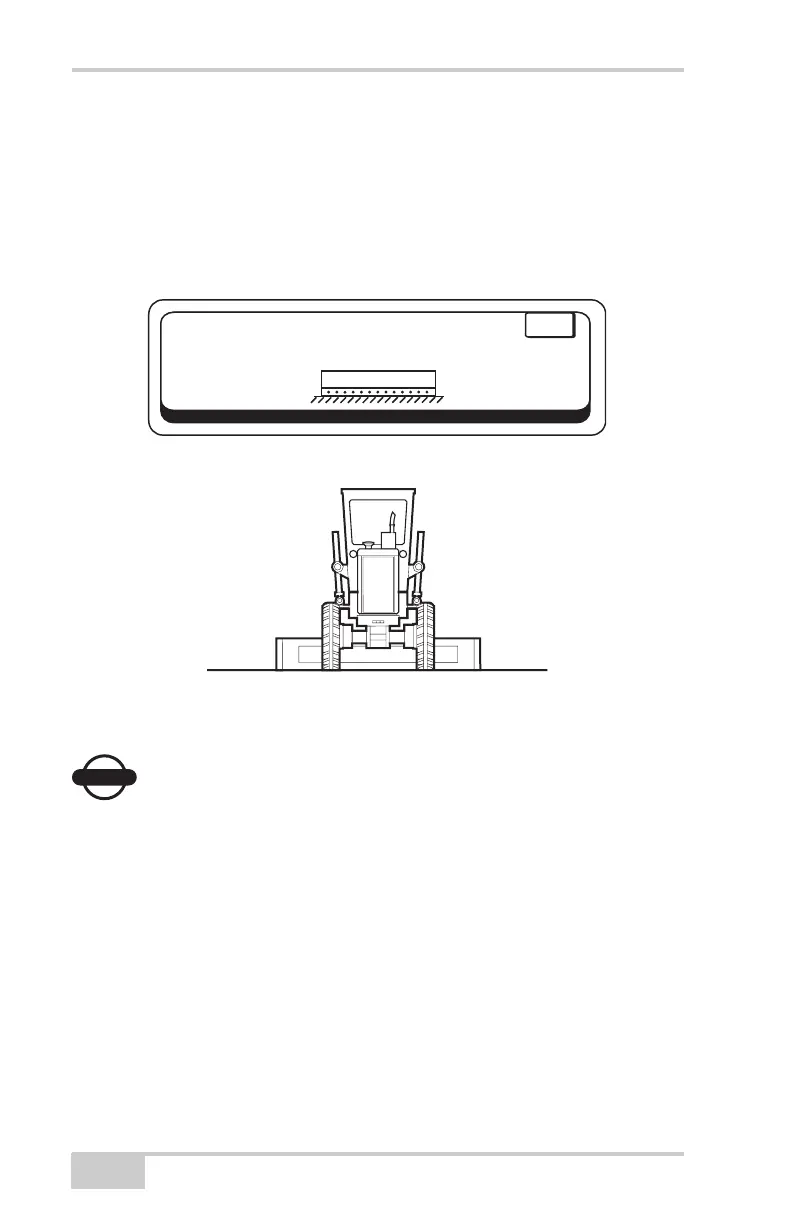

Figure 3-8.
NOTICE
NOTICE
This is a "rough" Blade Sensor Calibration and only needs
to be performed when the system is installed or if the Slope
Sensor has been removed. After this calibration has been
completed, always perform the Blade Wear (Trim)
Calibraton as your are cutting grade to make a fine
calibration adjustment.
CALIBRATE BLADE
E
NT
E
R
Turn around and place cutting
edge on same location.
POSITION 2
VIEW F
R
O
M
B
E
H
I
ND
G
RAD
E
R
