Grading Applications
Motorgrader System Five Operator’s Manual
5-38

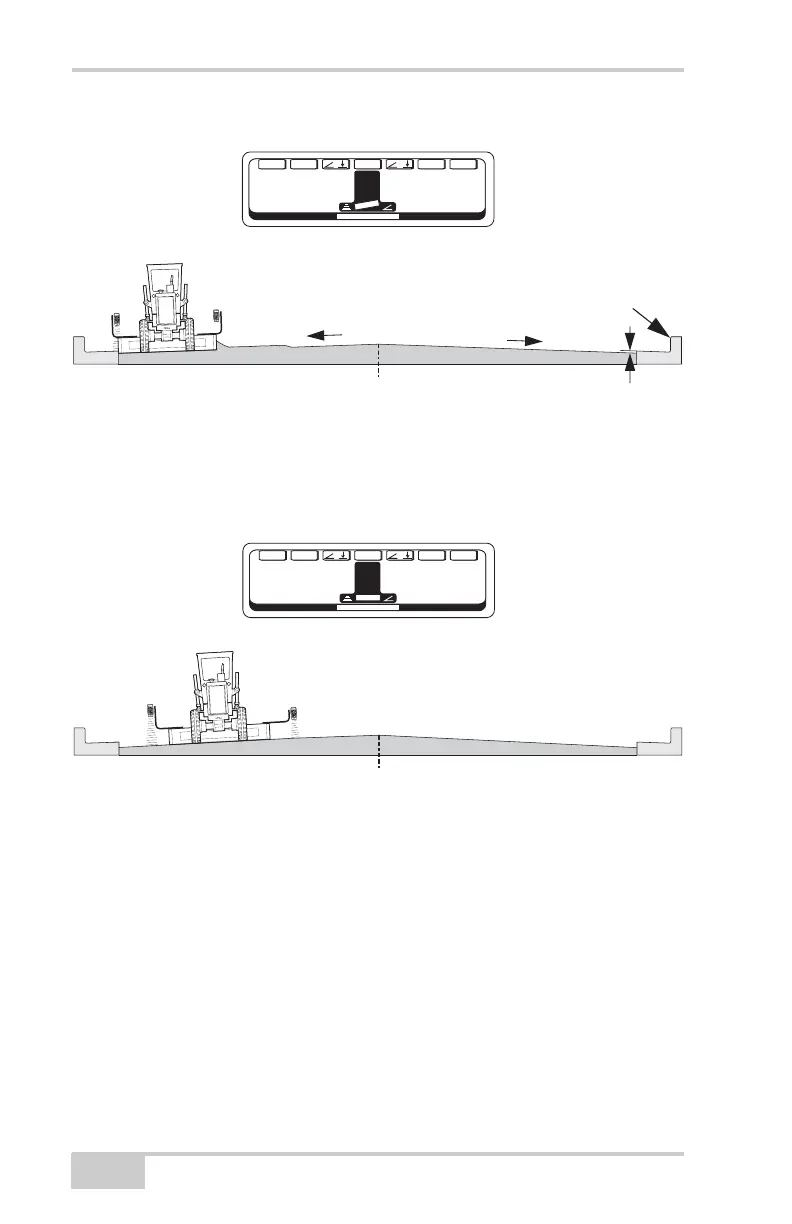

Figure 5-57.
After the windrow has been picked up, make a final "clean up" pass
using a Sonic Tracker on each side to complete the project.
Figure 5-58.
