Rotation Sensor Test
P/N 7010-0344
7-11
To check if the sensor is working properly:
1. Manually rotate the circle counterclockwise approximately 1foot.
2. Slowly rotate the circle back until the chisel mark is in line with
the "A"-frame and stop.

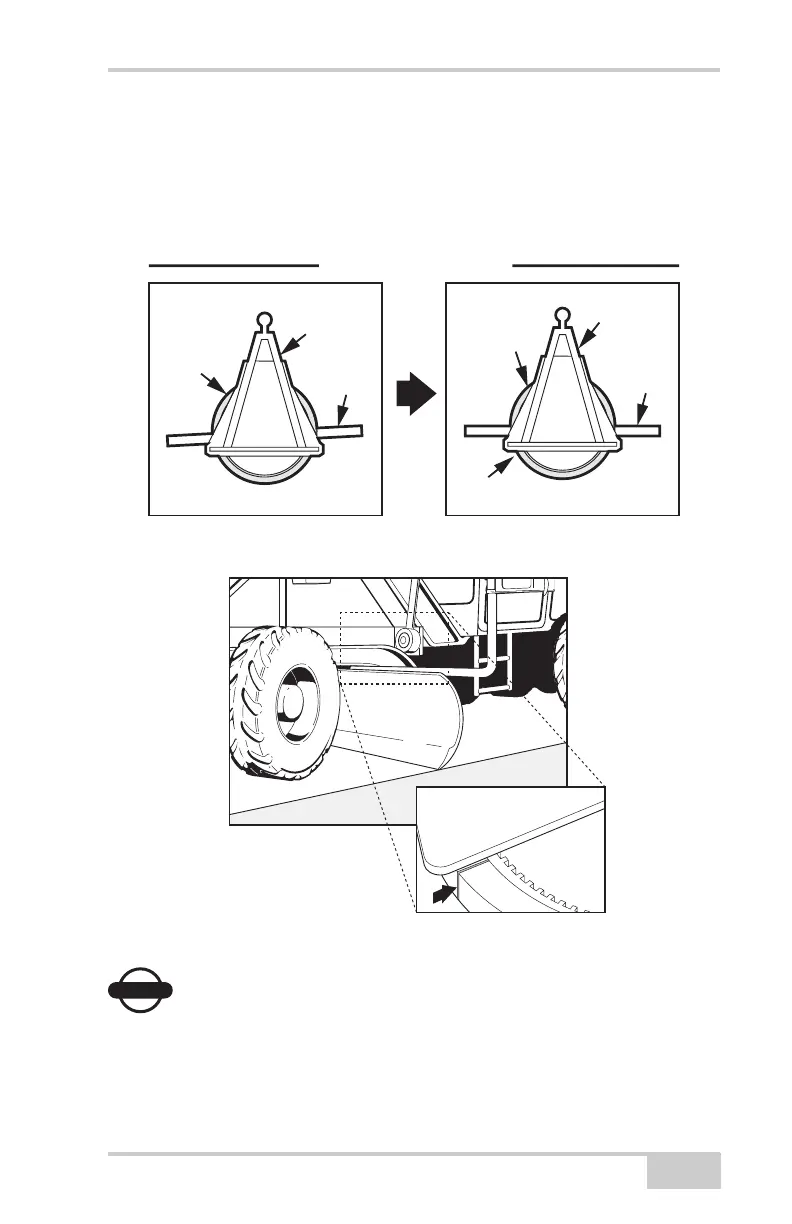

Figure 7-13.
NOTICE
NOTICE
If you go past the chisel mark, repeat the procedure
beginning with the circle rotated 1 foot beyond the chisel
mark.
BLADE
CIRCLE
"A"-FRAME
TOP VIEW OF "A"-FRAME
...Re-align the chisel mark
with the "A"-Frame
Manually rotate the circle
counter-clockwise 1'...
CIRCLE
"A"-FRAME
CHISEL
MARK
BLADE
