Control Box
P/N 7010-0344
2-15
– Sonic Tracker: switches the side of the machine controlling
elevation.
This is commonly used when turning the machine around at the
end of a pass.
Hold switch in for 1 second and swap occurs. A single beep tone
is heard when swap occurs.

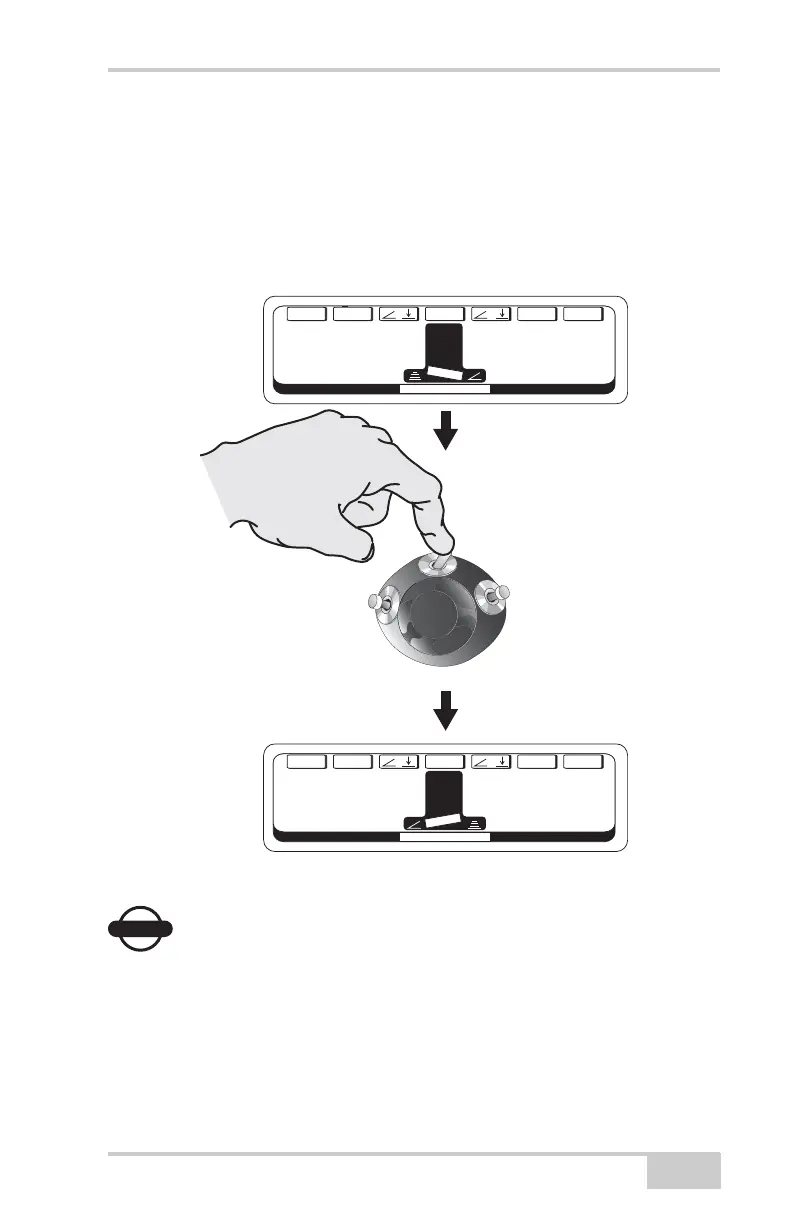

Figure 2-20.
NOTICE
NOTICE
Although swap will switch elevation & slope from left to
right side, it does not change the elevation grade setting
used previously on that side. If the current elevation setting
on the left side is 0.0 FT, pressing Swap will NOT change
the right elevation setting to 0.0 FT.
CONTROL MODE
G
A
INT
R
IM/
+
/
—
/S
E
TM
E
NU
2.0%
+
0.0
F
T
CONTROL MODE
G
A
INS
E
T/
+
/
—
/T
R
IMM
E
NU
2.0%
-
1.85
F
T
HOLD FOR
1 SECOND
LEFT SIDE
SMART KNOB
