Topcon Motorgrader - Page 78

Getting Ready to Grade
Motorgrader System Five Operator’s Manual
4-8

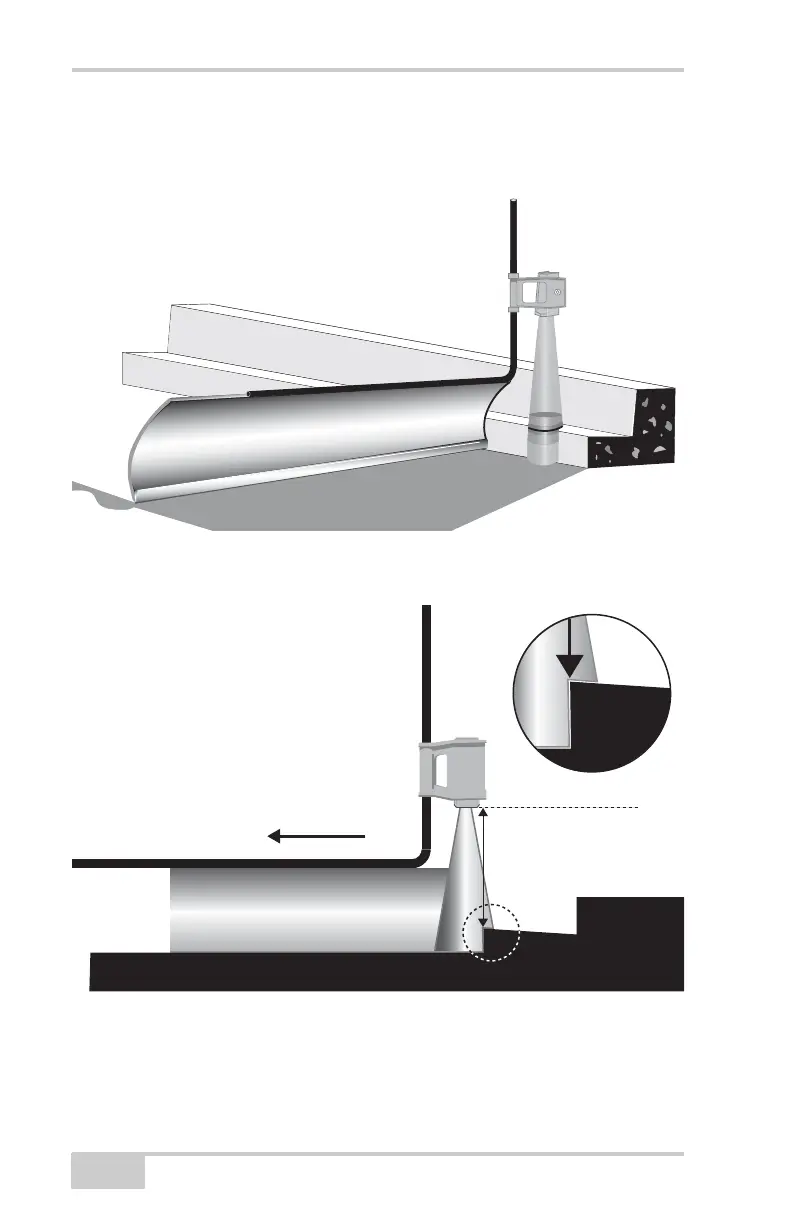

When tracking a curb, lower the tracker so it is just picking up the lip
of the curb. This will keep it from picking up the top of curb or
obstructions in the gutter.
Figure 4-10.
Figure 4-11.
CURB
14.0" to 18.0"
RECOMMENDED
DISTANCE
