Toro 31598 - Page 11

To Next Page

To Previous Page

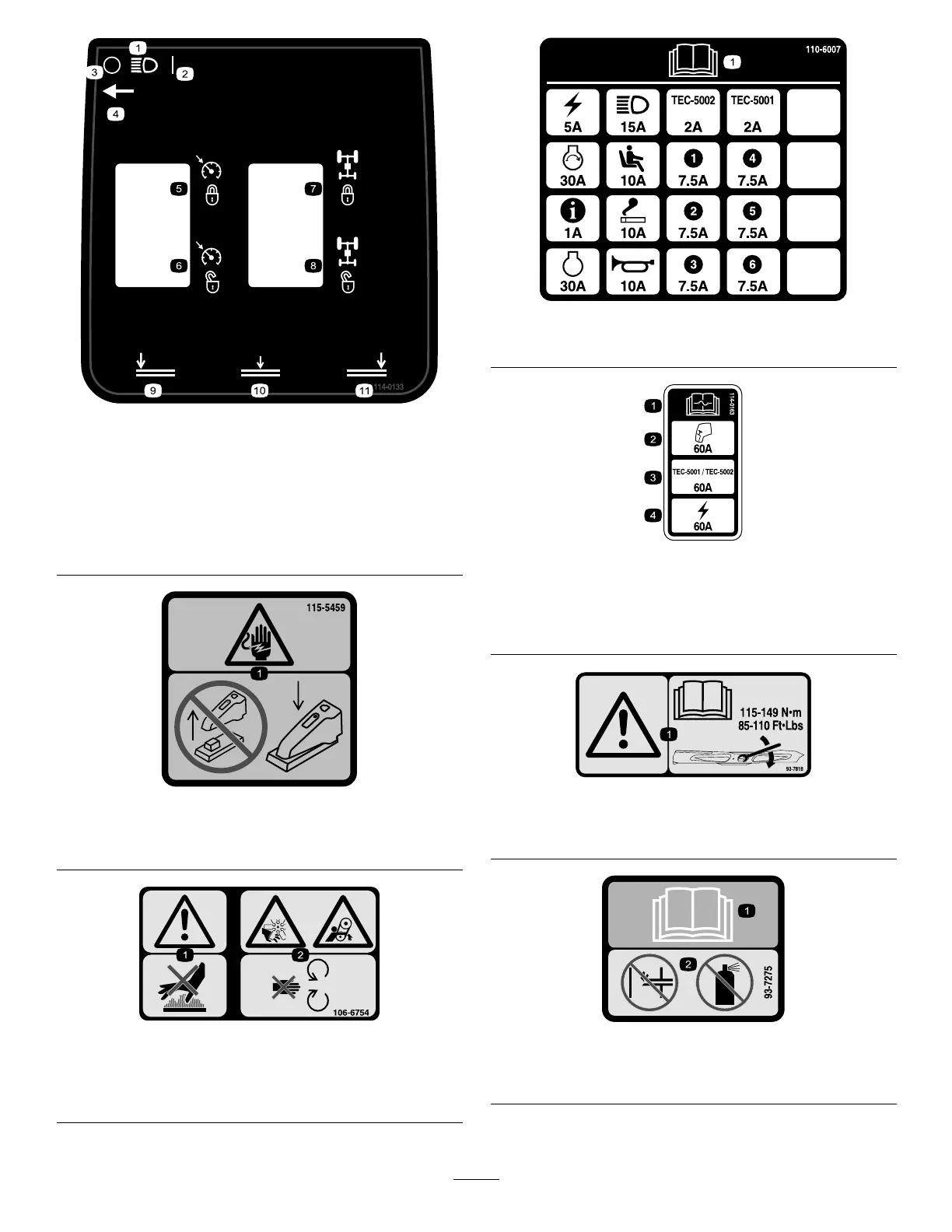

114-0133

1.Headlights7.Flowdivider—engage

2.On

8.Flowdivider—disengage

3.Off9.Lowercuttingunits—left

4.Headlightswitchlocation10.Lowercutting

units—center

5.Cruisecontrol—engage

11.Lowercuttingunits—right

6.Cruisecontrol—disengage

115-5459

1.Electricshockhazard—donotremovecover;keepcoverin

place.

106-6754

1.Warning—donottouchthehotsurface.

2.Cutting/dismembermenthazard,fanandentanglement

hazard,belt—stayawayfrommovingparts.

110-6007

1.ReadtheOperator’smanualforfuseinformation.

114-0163

1.ReadtheOperator’s

Manualforinformationon

fuses.

3.Controllers,60Afuse

2.Cab,60Afuse4.Mainpower,60Afuse

93-7818

1.Warning—readtheOperator’sManualforinstructionson

torquingthebladebolt/nutto115-149N-m(85-110ft-lb).

93–7275

1.ReadtheOperator’sManual—donotusestartinguidto

starttheengine.
