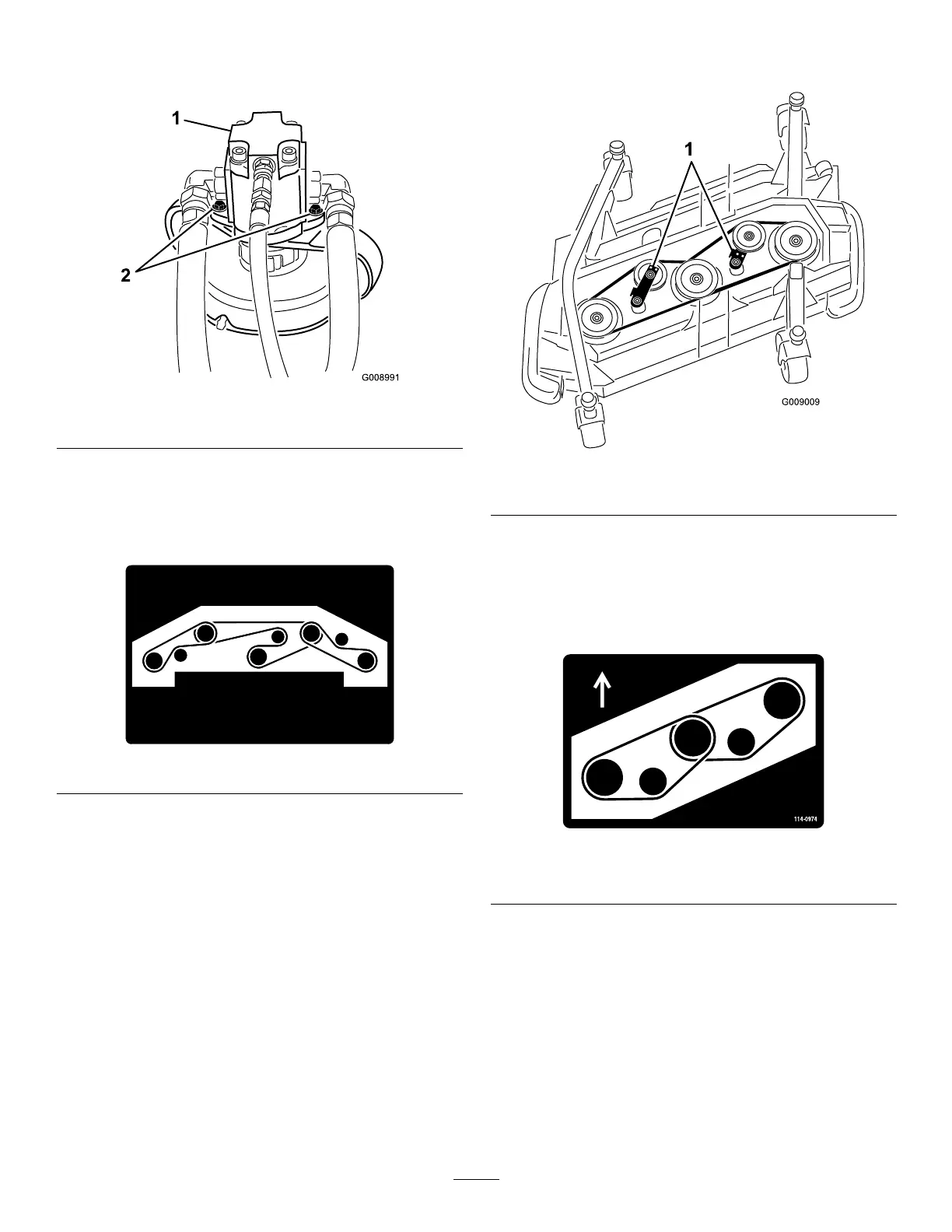

4.Removetheboltssecuringthehydraulicmotorto
thecuttingunit(Figure81).Liftthemotoroffofthe
cuttingunitandlayitontopofthecuttingunit.
Figure81
1.Hydraulicmotor2.Mountingbolts
5.Removetheoldbeltfromaroundthespindlepulleys
andidlerpulley.
6.Routethenewbeltaroundthespindlepulleysand
idlerpulleyassemblyasshowninFigure82.
114-0922
Figure82
7.Readjusttheidlerpulleystopscrewandtightenthe
jamnuts.
SideCuttingDecks
Note:Toremovethelowerbelt,theupperbeltmust
rstberemoved.
1.Lowerthecuttingunittotheshopoor.Remove
thebeltcoversfromthetopofthecuttingunitand
setthecoversaside.
2.Removetheboltssecuringthehydraulicmotorto
thecuttingunit(
Figure81).Liftthemotoroffofthe
cuttingunitandlayitontopofthecuttingunit.
3.Usingaratchetwrenchorsimilartool,movethe
idlerpulleys(Figure83)awayfromthedrivebelt
toreleasethebelttensionandallowthebelttobe
slippedoffthepulleys.
Figure83
1.Idlerpulleys
4.Removetheoldbeltfromaroundthespindlepulleys
andidlerpulley.
5.Routethenewbeltaroundthespindlepulleysand
idlerpulleyassemblyasshowninFigure84and
Figure85.
Figure84
Rightsidedeck
57
