travelingataveryslowspeed,lessthan2mph,toshift
toHiorLo.
HornButton
Pressthehornbutton(Figure10)toactivatethehorn.
ParkingBrakeLatch
Theknobontheleftsideoftheconsoleactuatesthe
parkingbrakelock(Figure10).Toengagetheparking
brake,connectthepedalswiththelockinglatch,push
downonbothpedals,andpulltheparkingbrakelatch
out.Toreleasetheparkingbrake,pressbothpedalsuntil
theparkingbrakelatchretracts.

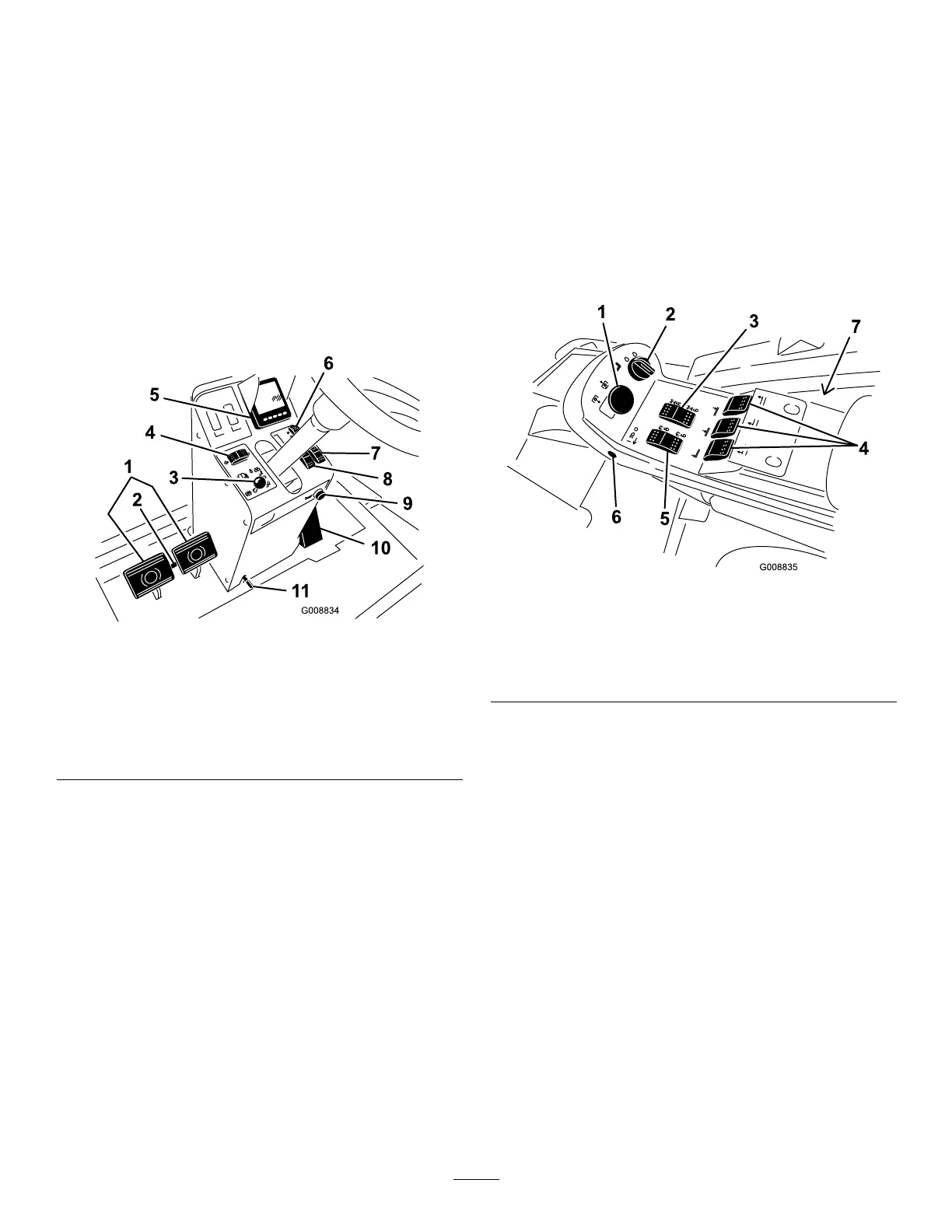

Figure10
1.Brakepedals7.Variablethrottleswitch
2.Pedallockinglatch8.Throttleswitch
3.Parkingbrakelatch9.Horn
4.Turnsignalswitch10.Tractionpedal
5.Infocenter
11.Tiltsteeringlever
6.Hi-lospeedcontrol
ThrottleSwitch
Thethrottleswitch(Figure11)hasthreepositionslow
idle,mididleandhighidle.
VariableThrottleSwitch
Thevariablethrottleswitch(Figure11)allowstheengine
speedtobeadjustedinsmallincrements.Pressthe“+”
oncetoincreasetheenginespeedandthe“-”onceto
decreasetheenginespeed.
Note:Movingthethrottleswitchwilloverrideand
cancelthevariablethrottlesetting.
Important:Donotoperatetheenginebelow1350
rpm.
LiftSwitches
Theliftswitches(Figure11)raiseandlowerthecutting
units.Presstheswitchesforwardtolowerthecutting
unitandbackwardtoraisethecuttingunits.
Note:ThedeckswillnotlowerwhileintheHispeed
range.andthedeckswillnotraiseorlowerifthe
operatorisoutoftheseatwhentheengineisrunning.
KeySwitch
Thekeyswitch(Figure11)hasthreepositions:Stop,
Run/Preheat,andStart.
Figure11
1.PTOswitch5.Cruisecontrol
2.Keyswitch6.Lightswitch
3.Tractionassistswitch
7.Powerpoint(ontheright
sideofconsole)
4.Liftswitches
PTOSwitch
ThePTOswitch(Figure11)hastwopositions:Out
(start)andIn(stop).PullthePTObuttonouttoengage
theimplementorcuttingunitblades.Pushinthebutton
todisengagetheimplementoperation.
TractionAssistSwitch
Whenoperatinginmow(low)speed,pressandhold
thetractionassistswitch(Figure11)toenhance
tractiondriveperformanceincompromisedoperating
conditions.
Note:ThetractionassistonlyengagesinMow-
Forward.Thetractionassistwillnotengagein
Mow-ReverseorHispeedrange.
CruiseControlSwitch
Thecruisecontrolswitch(Figure11)setsthespeedof
themachine.Pressingtherearoftheswitchturnsoff
20
