Toro 31598 - Light Switch; Seat Adjustments

thecruisecontrol,themiddlepositionoftheswitch
enablesthecruisecontrolfunctionandthefrontofthe
switchsetsthedesiredgroundspeed.
Note:Pressingeitherbrakepedalormovingthe
tractionpedalintothereverseposition,foronesecond,
willalsodisengagethecruisecontrol.
LightSwitch
Presstheloweredgeoftheswitch(Figure11)toturnon
thelights.Presstheupperedgeoftheswitchtoturn
offthelights.
AudibleAlarm(Console)
Thealarmisactivatedwhenafaultisdetected.
Thebuzzersounds:
•continuouswhentheenginesendsastopfault.
•withashortpulsewhentheenginesendsacheck
enginefault.
•whenthereislowfuel.
PowerPoint
Thepowerpoint,locatednexttotheconsoleontheside
ofthepowercenter,isusedtopoweroptionalelectrical
accessories(Figure11).
SeatAdjustments
Weightgauge
Indicateswhentheseatisadjustedtotheweightof
theoperator(Figure12).Heightadjustmentismade
bypositioningthesuspensionwithintherangeofthe
greenregion.

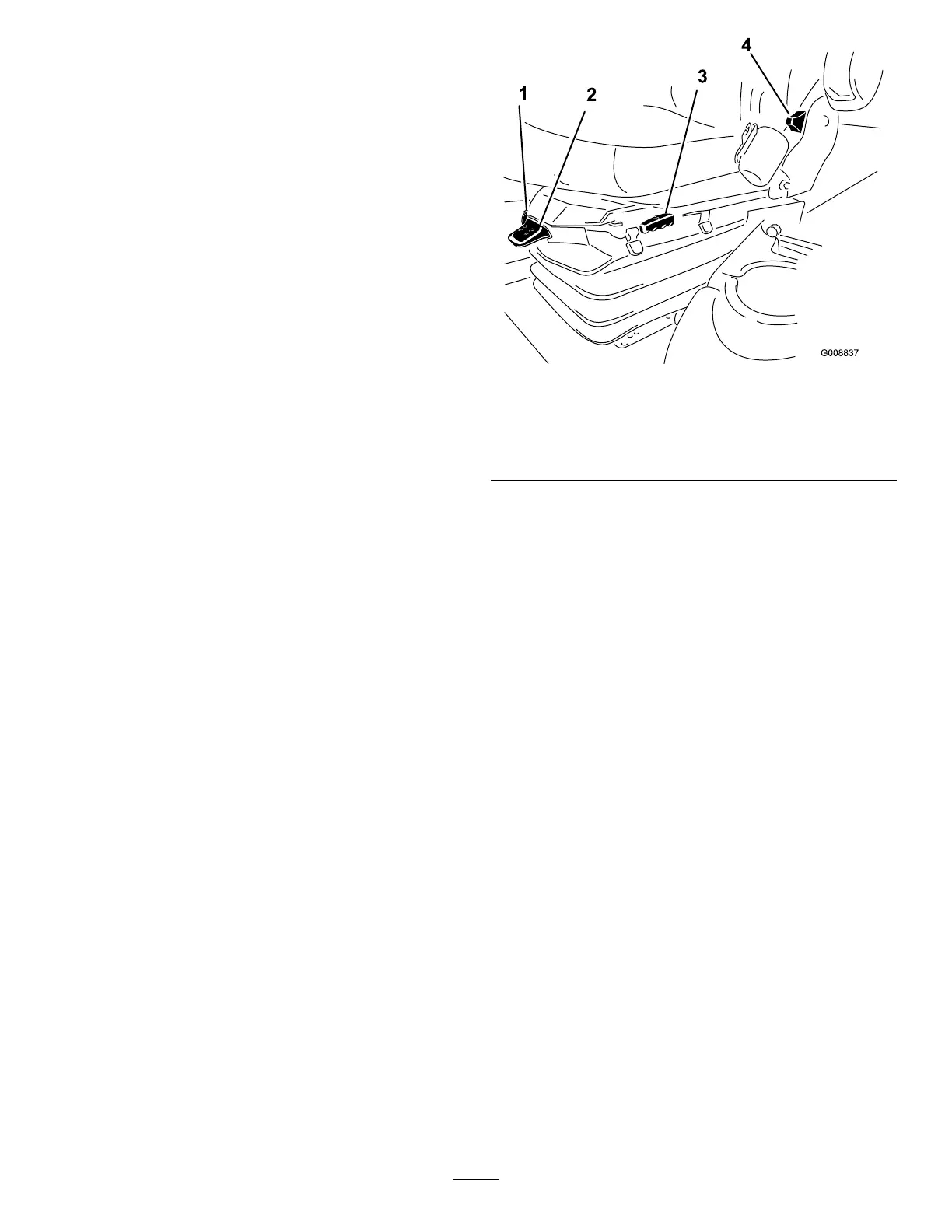

Figure12
1.Weightgauge
4.Seatbackadjustinglever
2.Weightadjustinglever5.Armrestadjustingknob
3.ForeandAftadjusting
lever
WeightAdjustingLever
Adjustforoperatorweight(Figure12).Pulluponthe
levertoincreasetheairpressureandpushdownto
decreasetheairpressure.Theproperadjustmentis
attainedwhentheweightgaugeisinthegreenregion.
ForeandAftAdjustingLever
Pulloutonthelevertoslidetheseatforeoraft
(Figure12).
SeatBackAdjustingLever
Movethelevertoadjusttheseatbackangle(Figure12).
SeatArmRestAdjustingKnob
Rotatetheknobtoadjusttheseatarmrestangle
(Figure12).
