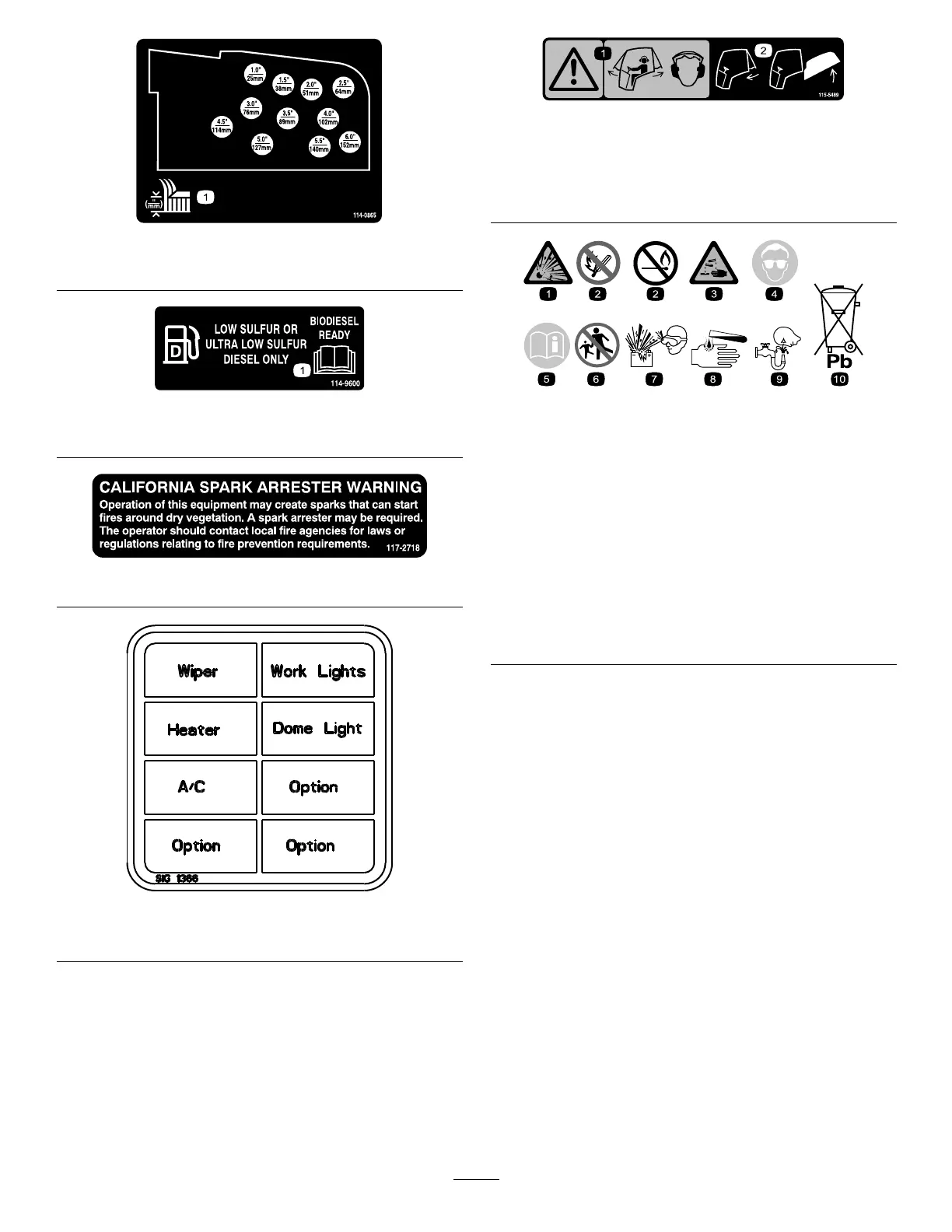

114-0865

1.Heightofcutadjustment

114-9600

1.ReadtheOperator’sManual.

117–2718

115-5509

(Model31599only)

115-5489

(Model31599only)

1.Warning—whenthecabwindowsareopenwearhearing

protection.

2.Closetherearwindowbeforeattemptingtoopenthehood.

BatterySymbols

Someorallofthesesymbolsareonyourbattery

1.Explosionhazard

6.Keepbystandersasafe

distancefromthebattery.

2.Nore,opename,or

smoking.

7.Weareyeprotection;

explosivegasescan

causeblindnessandother

injuries

3.Causticliquid/chemical

burnhazard

8.Batteryacidcancause

blindnessorsevereburns.

4.Weareyeprotection9.Flusheyesimmediately

withwaterandgetmedical

helpfast.

5.ReadtheOperator’s

Manual.

10.Containslead;donot

discard.
