Toro Multi Pro 1750 Operator's Manual

PreparingtoUsethe
Sprayer
CleaningtheSuctionFilter
ServiceInterval:Beforeeachuseordaily—Cleanthe
suctionlter.Cleanthesuctionlter
(moreoftenwhenusingwettable
powders).
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,shutoffthepump,shutoffthe
engine,andremovethekey.
2.Atthetopofthesprayertank,removethe
retainerthatsecuresthehosettingattachedto
thelargehosefromthelterhousing(Figure13).

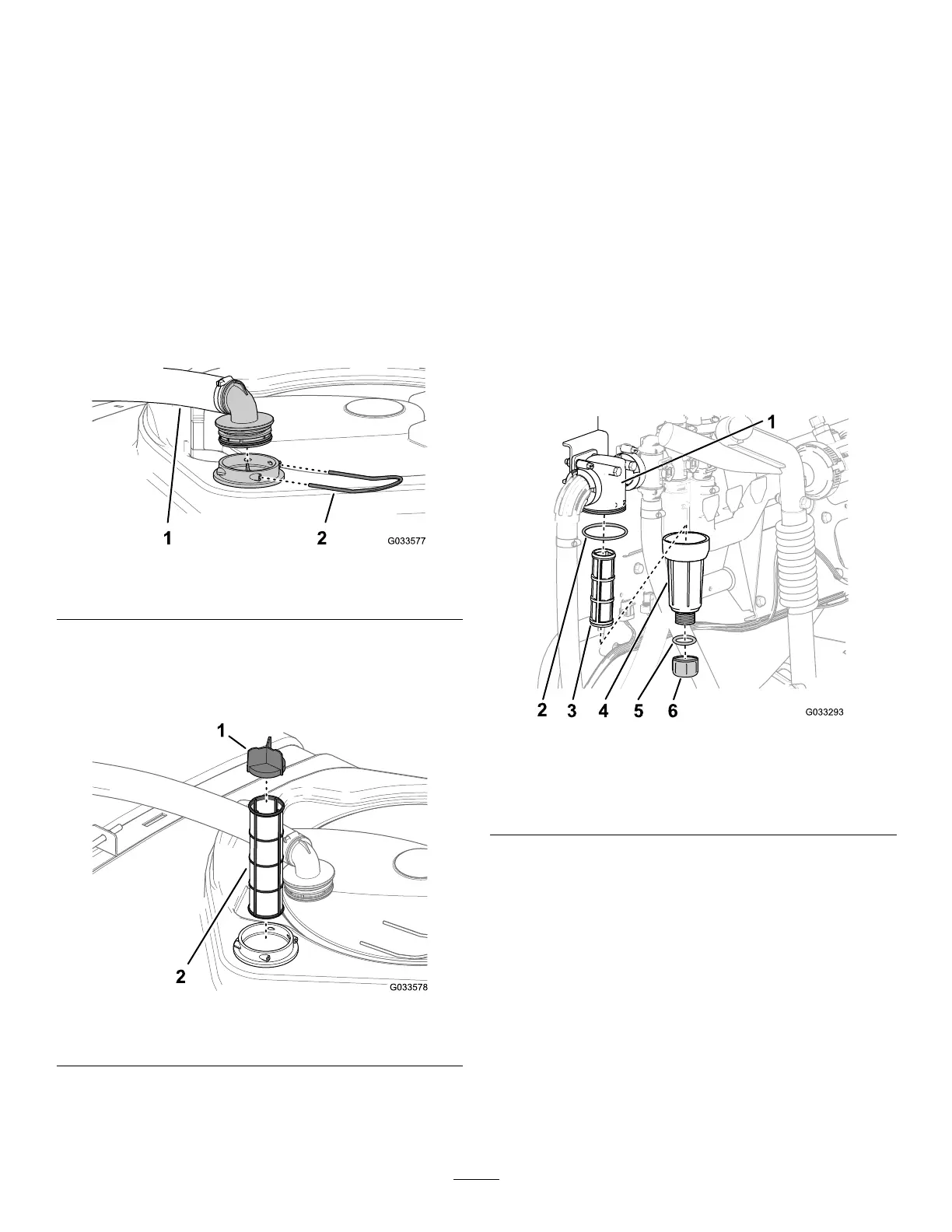

g033577
Figure13
1.Suctionhose
2.Retainer
3.Removethehoseandhosettingfromthelter
housing(Figure13).
4.Pullthesuctionstraineroutofthelterhousing
inthetank(Figure14).
g033578
Figure14
1.Screenvane2.Suctionstrainer
5.Cleanthesuctionlterwithcleanwater.
Important:Replacethelterifitisdamaged
orcannotbecleaned.
6.Insertthesuctionlterintothelterhousinguntil
thelterisfullyseated.
7.Alignthehoseandhosettingtothelter
housingatthetopofthetank,andsecuretting
andhousingwiththeretainerthatyouremoved
instep2.
CleaningthePressureFilter
ServiceInterval:Beforeeachuseordaily—Clean
thepressurelter.Cleanthe
pressurelter(moreoftenwhen
usingwettablepowders).
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,shutoffthesprayerpump,shut
offtheengine,andremovethekey.
2.Alignadrainpanunderthepressurelter
(Figure15).
g033293
Figure15
1.Filterhead
4.Gasket(drainplug)
2.Gasket(bowl)
5.Draincap
3.Filterelement6.Bowl
3.Rotatethedraincapcounterclockwiseand
removeitfromthebowlofthepressurelter
(Figure15).
Note:Allowthebowltodraincompletely.
4.Rotatethebowlcounterclockwiseandremove
thelterhead(Figure15).
5.Removethepressurelterelement(Figure15).
6.Cleanthepressurelterelementwithclean
water.
Important:Replacethelterifitisdamaged
orcannotbecleaned.
7.Checkthegasketforthedrainplug(located
insidethebowl)andthegasketforbowl(located
26
