Toro Multi Pro 1750 Operator's Manual

Changing
Transaxle/HydraulicFluid
ServiceInterval:Every800hours/Yearly(whichever
comesrst)
1.Positionthesprayeronalevelsurface,set
theparkingbrake,stopthepump,shutoffthe
engine,andremovetheignitionkey.
2.Placeadrainpanunderthedrainplugofthe
reservoir.
3.Removethedrainplugfromthesideofthe
reservoir,andletthehydraulicuidowintothe
drainpan(Figure50).

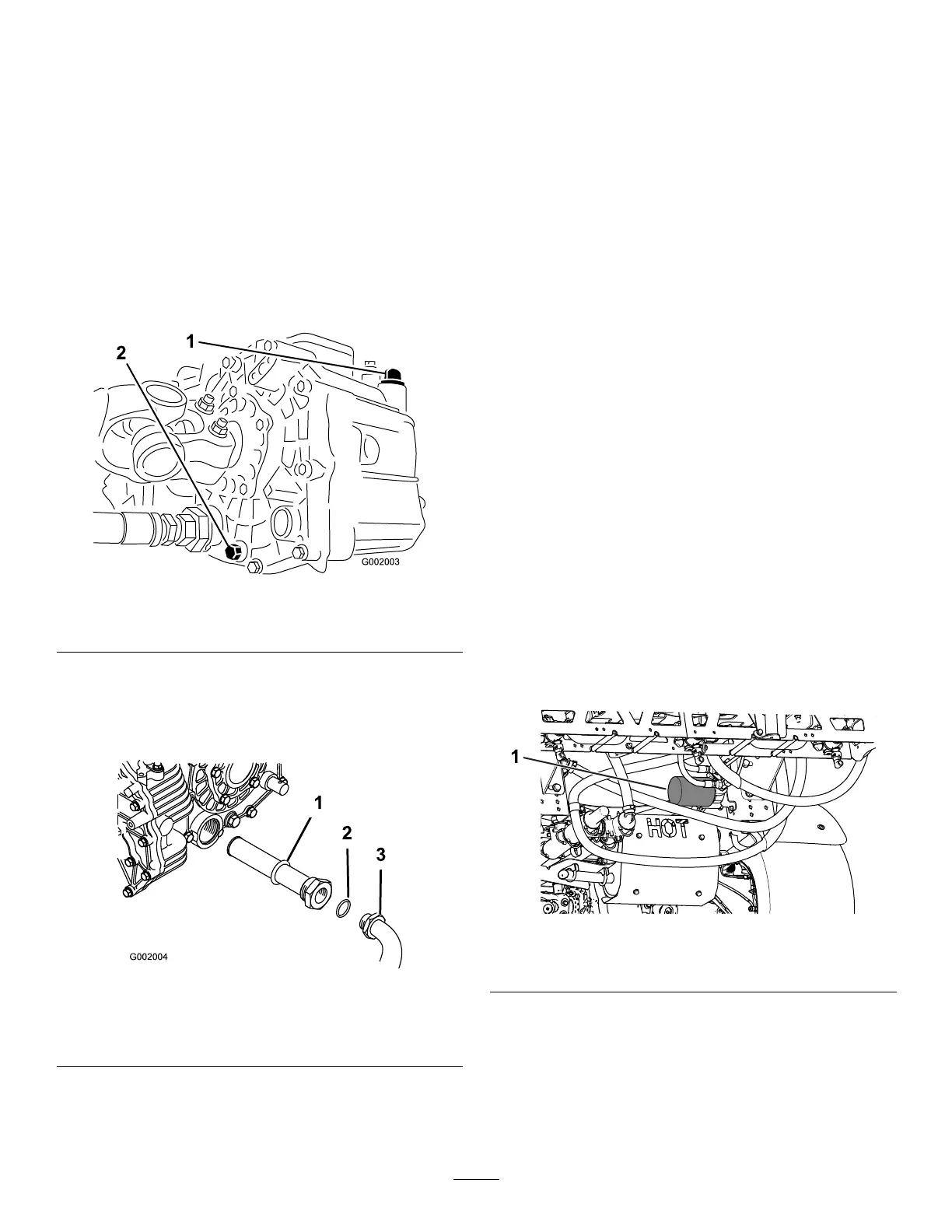

g002003
Figure50
1.Hydraulicdipstick2.Drainplug
4.Notetheorientationofthehydraulichoseand
90°ttingconnectedtothestrainer.
5.Removethehydraulichoseand90°tting
(Figure51).
g002004
Figure51
1.Hydraulicstrainer
3.90°tting
2.O-ring
6.Removethestrainerandcleanitbyback
ushingitwithacleandegreaser.
7.Allowthestrainertoairdry.
8.Installthestrainerwhentheoilisdraining.
9.Installthehydraulichoseand90°ttingtothe
strainer.
10.Installandtightenthedrainplug.
11.Fillthereservoirwithapproximately7L(7.5US
qt)ofDexronIIIATF.
Important:Useonlythehydraulicuids
specied.Otheruidscouldcausesystem
damage.
12.Starttheengineanddrivethesprayertollthe
hydraulicsystem.
13.Checktheoillevelandreplenishit,ifrequired.
ReplacingtheHydraulic
Filter
ServiceInterval:Aftertherst8hours
Every800hours/Yearly(whichevercomesrst)
UsetheTororeplacementlter(PartNo.54-0110).
Important:Useofanyotherltermayvoidthe
warrantyonsomecomponents.
1.Positionthesprayeronalevelsurface,set
theparkingbrake,stopthepump,shutoffthe
engine,andremovetheignitionkey.
2.Cleantheareaaroundtheltermountingarea.
3.Placeadrainpanunderthelter.
4.Removethelter(Figure52).
g204330
Figure52
1.Hydrauliclter
5.Lubricatethenewltergasket.
6.Ensurethattheltermountingareaisclean.
7.Screwthelteronuntilthegasketcontactsthe
mountingplate,thentightenthelter1/2turn.
8.Starttheengineandletitrunforabout2minutes
topurgeairfromthesystem.
52
