AdjustingtheParking
Brake
ServiceInterval:Every200hours—Checkthe
parkingbrake.
1.Removetheplasticgrip.
2.Loosenthesetscrewsecuringtheknobtothe
parking-brakelever(Figure48).
g023036

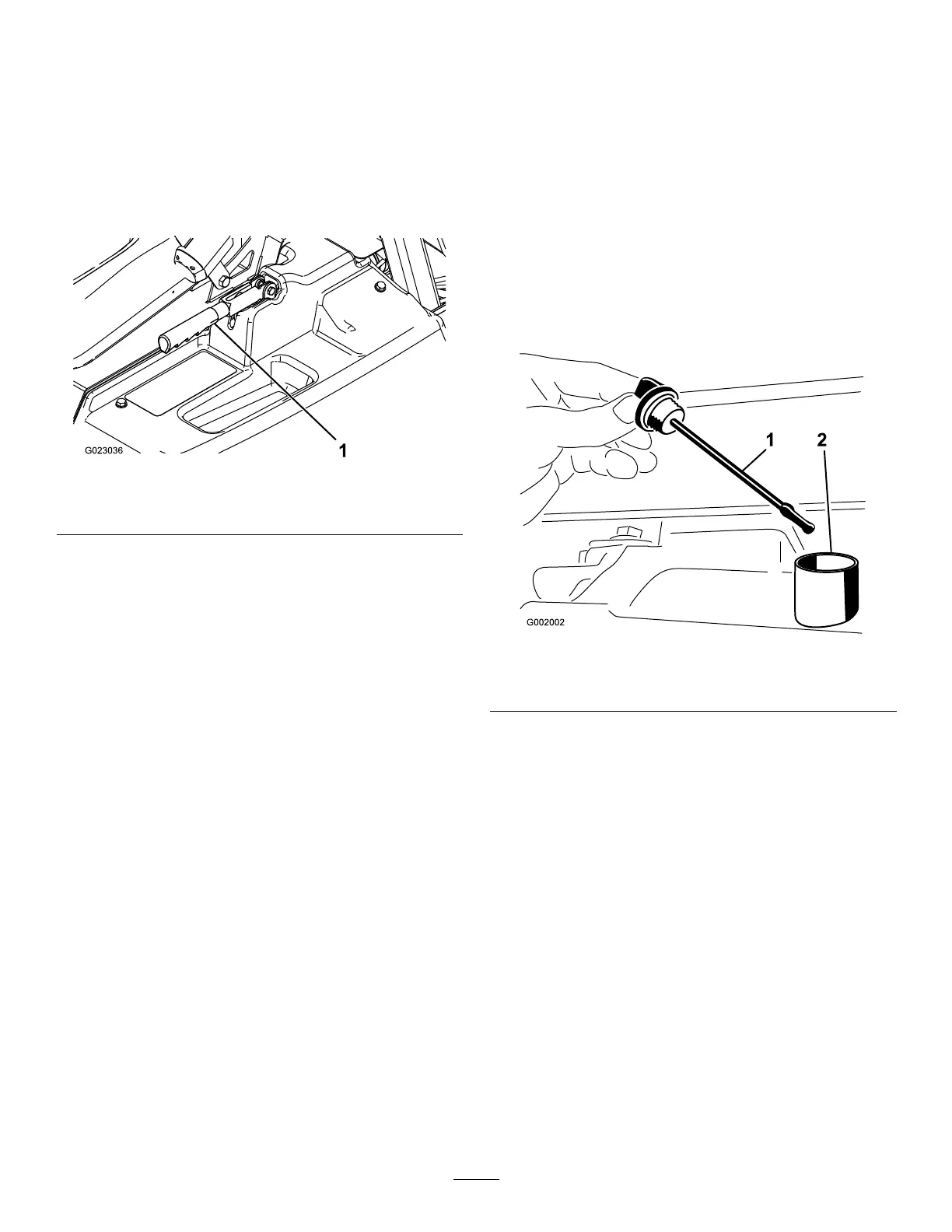

Figure48
1.Parking-brakelever
3.Rotatetheknobuntilaforceof18to23kg(40
to50lb)isrequiredtoactuatelever.
4.Tightenthesetscrew.
HydraulicSystem
Maintenance
Checkingthe
Transaxle/HydraulicFluid
ServiceInterval:Every200hours
1.Positionthesprayeronalevelsurface,engage
theparkingbrake,shutoffthesprayerpump,
shutofftheengine,andremovethekey.
2.Removethetransaxledipstickandwipeitwitha
cleanrag(Figure49).
g002002
Figure49
1.Dipstick2.Fillhole
Important:Beverycarefulnottogetdirtor
othercontaminantsintotheopeningwhen
checkingthetransmissionoil.
3.Insertthedipstickintothetubeandmakesure
thatitisseatedfully.Removethedipstickand
checktheoillevel.
4.Thetransaxleuidlevelshouldbeatthetop
oftheatportionofthedipstick.Ifitisnot,ll
thereservoirwiththeappropriateuid;referto
ChangingTransaxle/HydraulicFluid(page52).
5.Installthedipstickrmlyinplace.
51
