CleaningtheSprayer
Valves
•Tocleantherate-controlvalve,refertothe
followingsections:
1.RemovingtheValveActuator(page58)
2.RemovingtheRate-Control-ManifoldValve
(page59)
3.CleaningtheManifoldValve(page62)
4.AssemblingtheManifoldValve(page63)
5.InstallingtheRateControlManifoldValve
(page64)
6.InstallingtheValveActuator(page67)
•Tocleantheagitationvalve;refertothefollowing
sections:
1.RemovingtheValveActuator(page58)
2.RemovingtheAgitation-ManifoldValve
(page59)
3.CleaningtheManifoldValve(page62)
4.AssemblingtheManifoldValve(page63)
5.InstallingtheAgitation-ManifoldValve(page
64)
6.InstallingtheValveActuator(page67)
•Tocleanthemaster-sectionvalve,refertothe
followingsections:
1.RemovingtheValveActuator(page58)
2.RemovingtheMaster-Section-Manifold
Valve(page60)
3.CleaningtheManifoldValve(page62)
4.AssemblingtheManifoldValve(page63)
5.InstallingtheMaster-Section-ManifoldValve
(page65)
6.InstallingtheValveActuator(page67)
•Tocleanthe3sectionvalves;refertothefollowing
sections:
1.RemovingtheValveActuator(page58)
2.RemovingtheSection-ManifoldValve(page
61)
3.CleaningtheManifoldValve(page62)
4.AssemblingtheManifoldValve(page63)
5.InstallingtheSectionManifoldValve(page
66)
6.InstallingtheValveActuator(page67)
RemovingtheValveActuator
1.Positionthesprayeronalevelsurface,engage
theparkingbrake,shutoffthepump,shutoffthe
engine,andremovethekey.
2.Removethe3-pinconnectorofthevalve
actuatorfromthe3socketelectricalconnector
ofthesprayerharness.
3.Removetheretainerthatsecurestheaactuator
tothemanifoldvalvefortheratecontrol,
agitation,mastersection,orsectionvalve
(Figure61).
Note:Squeezethe2legsoftheretainer
togetherwhilepushingitdown.
Note:Retaintheactuatorandretainerfor
installationinInstallingtheValveActuator(page
67).

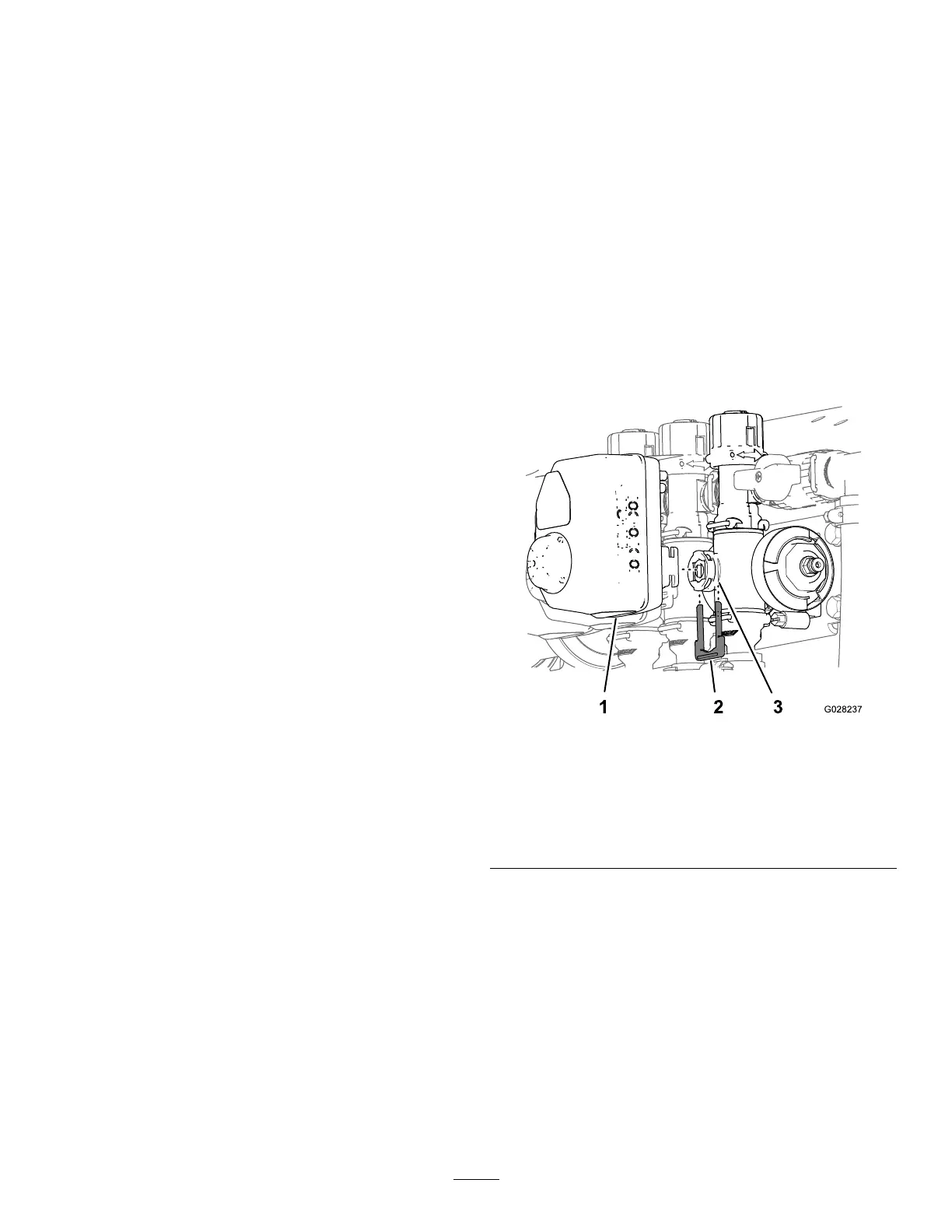

g028237
Figure61
Section-ValveActuatorShown(theagitation-valveactuator
issimilar)
1.Valveactuator(section
valveshown)
3.Stemport
2.Retainer
4.Removetheactuatorfromthemanifoldvalve.
58
