Page #62 background imageLoading...
Page #62 background image
g028239

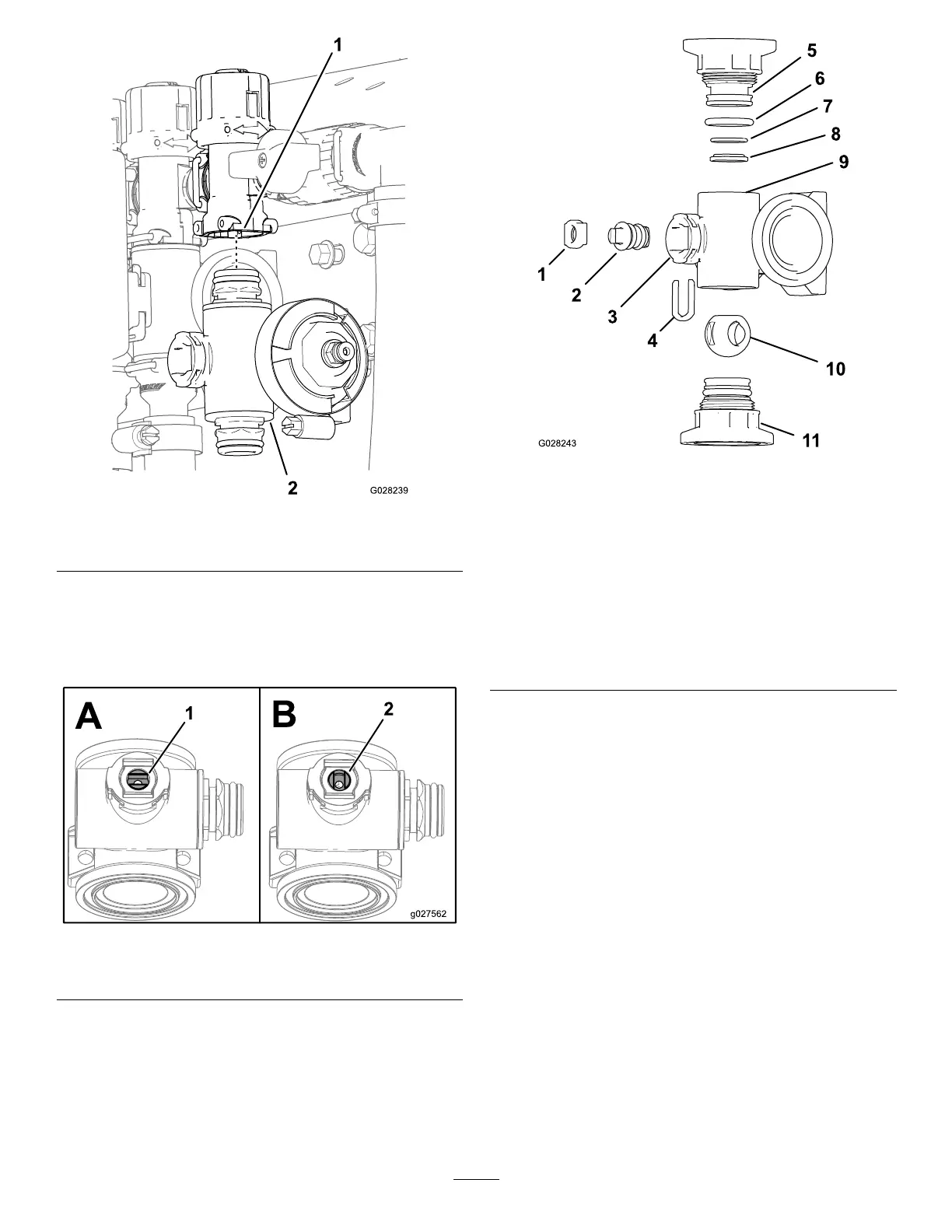

Figure70
1.Bypasstting2.Section-valvemanifold
CleaningtheManifoldValve
1.Positionthevalvestemsothatitisintheclosed
position(Figure71B).
g027562
Figure71
1.Valveopen2.Valveclosed
2.Removethe2end-cap-ttingassembliesfrom
eachendofthemanifoldbody(Figure72and
Figure73).
g028243
Figure72
AgitationValveManifold
1.Stemretainer7.BackseatingO-ring(0.676
x0.07inch)
2.Valvestem8.Valve-seatring
3.Stemport9.Manifoldbody
4.Stem-captureretainer
10.Ballvalve
5.End-captting11.End-cap-ttingassembly
6.End-capsealO-ring
(0.796x0.139inch)
62
