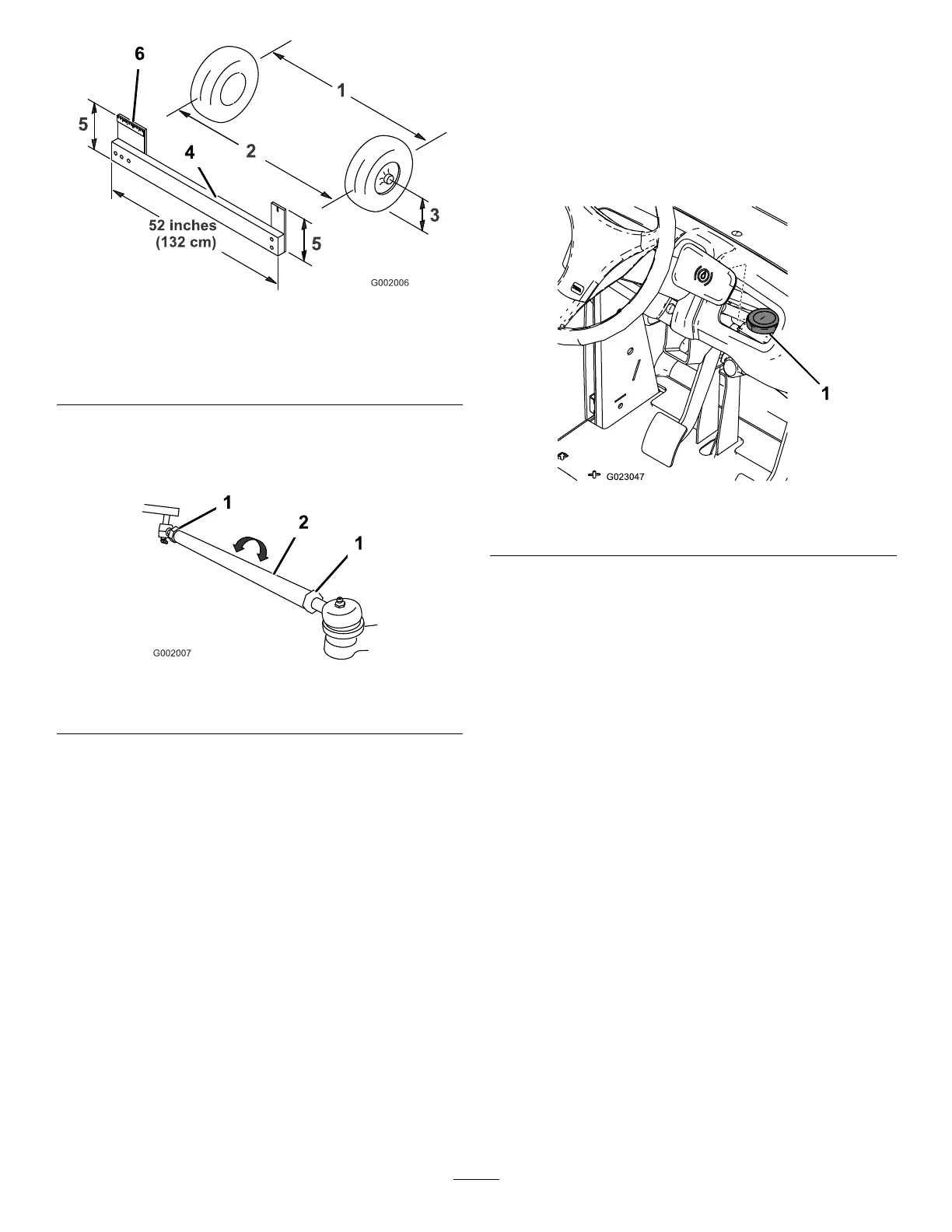

Figure45
1.Tirecenterline—back4.Fixture
2.Tirecenterline—front
5.Axle-centerlinedistance
3.Axlecenterline
6.15cm(6inches)ruler
5.Ifthemeasurementdoesnotfallwithinthe
speciedrange,loosenthejamnutsatboth
endsofthetierods(Figure46).
g002007
Figure46
1.Jamnut2.Tierod
6.Rotatebothtierodstomovethefrontofthetire
inwardoroutward.
Note:Thetierodsmeasurethesamelength.
7.Tightenthetierodjamnutswhentheadjustment
iscorrect.
8.Ensurethatthereisfulltravelofthesteering
wheelinbothdirections.
BrakeMaintenance
CheckingtheBrakeFluid
Thebrake-uidreservoirisshippedfromthefactory
lledwithDOT3brakeuid.Checkthelevelbefore
startingtheengineeachday.
g023047
Figure47
1.Brake-uidreservoir
1.Positionthesprayeronalevelsurface,set
theparkingbrake,stopthepump,shutoffthe
engine,andremovetheignitionkey.
2.TheuidlevelshouldbeuptotheFULLlineon
thereservoir.
3.Iftheuidlevelislow,cleantheareaaround
thereservoircap,removethecap,andllthe
reservoirtotheproperlevel.Donotoverll.
InspectingtheBrakes
ServiceInterval:Every100hours
Thebrakesareacriticalsafetycomponentofthe
sprayer.Inspectthemasfollows:
•Inspectthebrakeshoesforwearordamage.Ifthe
lining(brakepad)thicknessislessthan1.6mm
(1/16inch),replacethebrakeshoes.
•Inspectthebackingplateandothercomponents
forsignsofexcessivewearordeformation.If
anydeformationisfound,replacetheappropriate
components.
50
