Toro ProLine H600 - Page 16

g473687

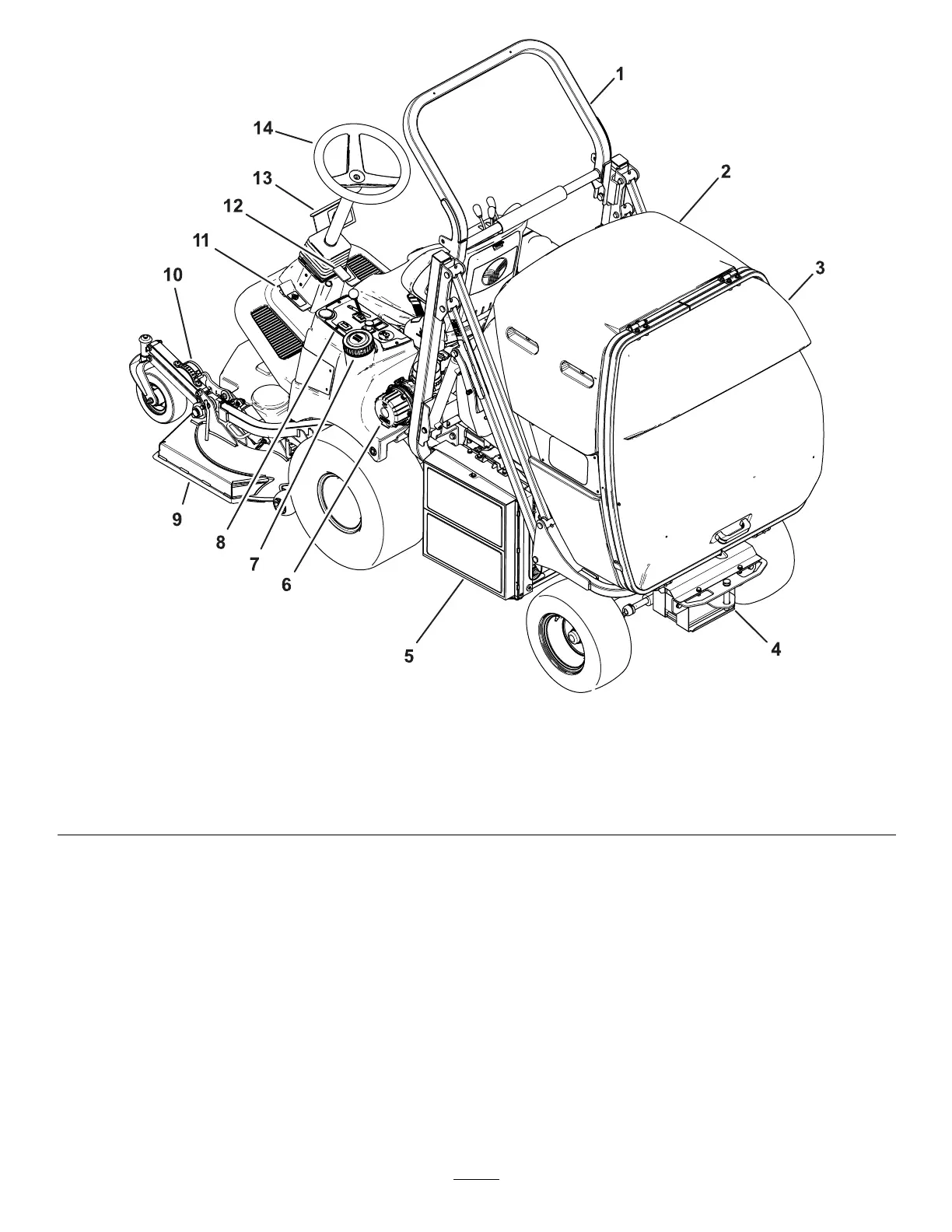

Figure 6
1. Roll bar 5. Radiator
9. Cutting unit
13. T raction pedal
2. Hopper 6. Air cleaner
10. Height-of-cut (HOC) gauge 14. Steering wheel
3. Hopper door 7. Fuel tank
1 1. Dif ferential lock pedal
4. HItch and battery location
8. Left console 12. Steering-column tilt lever
16
