Toro ProLine H600 - Hauling the Machine

Opening the Bypass V alve on the
Hydraulic Pump to Push or T ow
the Machine

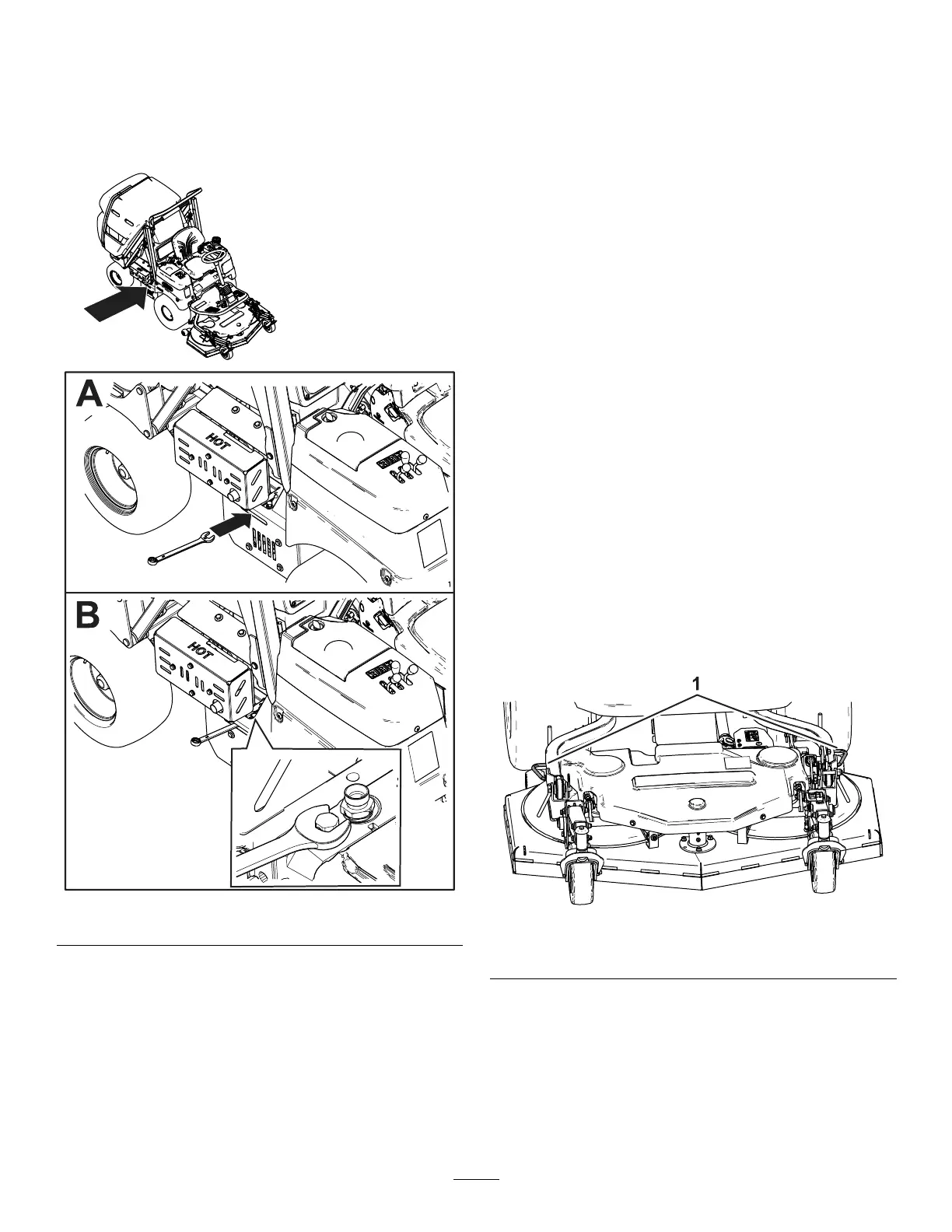

1. Locate the the bypass valve at the right side of
the machine ( Figure 30 ).
g431657
Figure 30
2. Using a 16 mm (5/8 inch) wrench, rotate the
control knob 3 turns counterclockwise ( Figure
30 ).
Important: Do not rotate the control knob
more that 3 turns.
Closing the Bypass V alve on the
Hydraulic Pump to Operate the
Machine
1. Locate the control knob for the bypass valve at
the left side of the hydraulic pump ( Figure 30 ).
2. Using a 16 mm (5/8 inch) wrench, rotate the
control knob ( Figure 30 ) clockwise until you feel
resistance (the bypass valve is closed).
Hauling the Machine
• Use care when loading or unloading the machine
into a trailer or a truck.
• Use full-width ramps for loading the machine into
a trailer or a truck.
• Before tying down machine, lower the cutting unit
completely .
• Bind the machine securely to the transport vehicle
using straps, chains, cable, or ropes. Align both
front and rear straps down and outward from the
machine.
Important: Do not loop tie-down straps,
chains, cable, or ropes across the operator
platform.
Binding the Front of the Machine
Loop tie-downs around the anchor hoops ( Figure 31 ).
g432013
Figure 31
1. Front tie-down locations
37
