Maintaining the Hopper
Aligning the Hopper to the
Chute Seal
Ensure the hopper and chute seal properly and does
not atten the seal.
1. Loosen the 4 bolts that secure the hopper lift
supports to the frame under the hopper ( Figure
107 ).

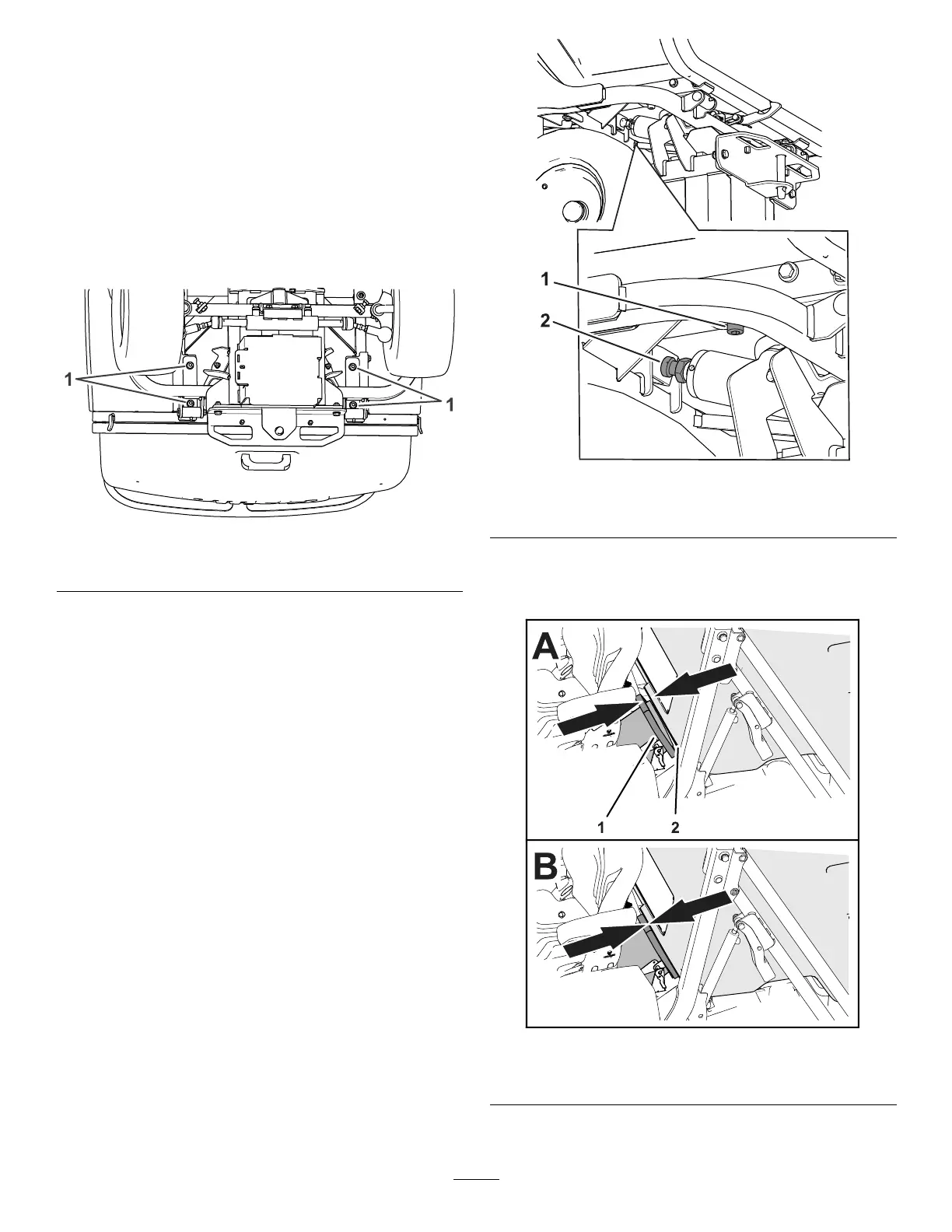

g435869
Figure 107
1. Bolts
2. If you need to get the desired movement of the
hopper , loosen the safety nut at the top of the
hydraulic cylinder rod ( Figure 108 ).
g436325
Figure 108
1. Bolt
2. Safety nut
3. Slide the hopper forward or rearward until the
hopper inlet aligns with the chute seal ( Figure
109 ).
g435870
Figure 109
1. Chute seal
2. Hopper inlet
4. T ighten the 4 bolts ( Figure 107 ).
