Lubrication
Greasing the Cutting Unit
Service Interval : Every 40 hours —Grease the cutting
unit. When operating the machine in
extremely dusty and dirty conditions,
lubricate the cutting unit daily .
Grease specication: No. 2 lithium grease
Important: Dusty and dirty operating conditions
could cause dirt to get into the bearings and
bushings, resulting in accelerated wear .
Note: Lubricate the grease ttings immediately after
every washing, regardless of interval specied.
1. Remove the bolts at the front of the cover and
remove the belt cover .
2. Wipe the grease tting clean so debris is not
forced into the bearing or bushing.
3. Pump grease into the bearing or bushing.
4. Wipe of f excess grease.
5. Install the belt cover and bolts.

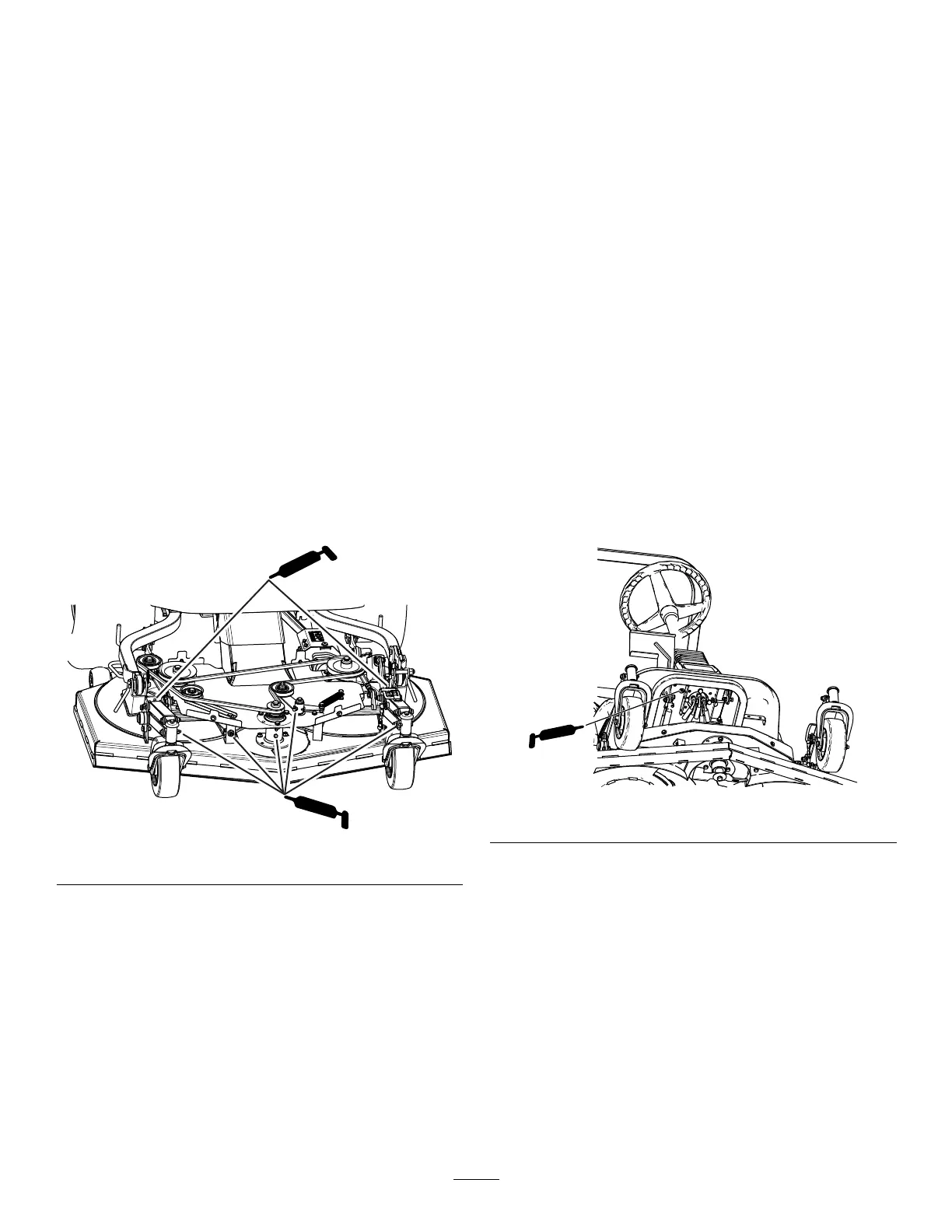

g432134
Figure 37
Greasing the Bearings and
Bushings
Service Interval : Every 40 hours —Grease the
bearings and bushings. When
operating the machine in extremely
dusty and dirty conditions, lubricate
the bearings and bushings daily .
Grease specication: No. 2 lithium grease
Important: Dusty and dirty operating conditions
could cause dirt to get into the bearings and
bushings, resulting in accelerated wear .
Note: Lubricate the grease ttings immediately after
every washing, regardless of interval specied.
1. Wipe the grease tting clean so debris is not
forced into the bearing or bushing.
2. Pump grease into the bearing or bushing.
3. Wipe of f excess grease.
The bearing and bushing lubrication points are as
follows:
• T raction pedal pivot bushing ( Figure 38 )
g432316
Figure 38
