Use the following table when replacing a fuse:

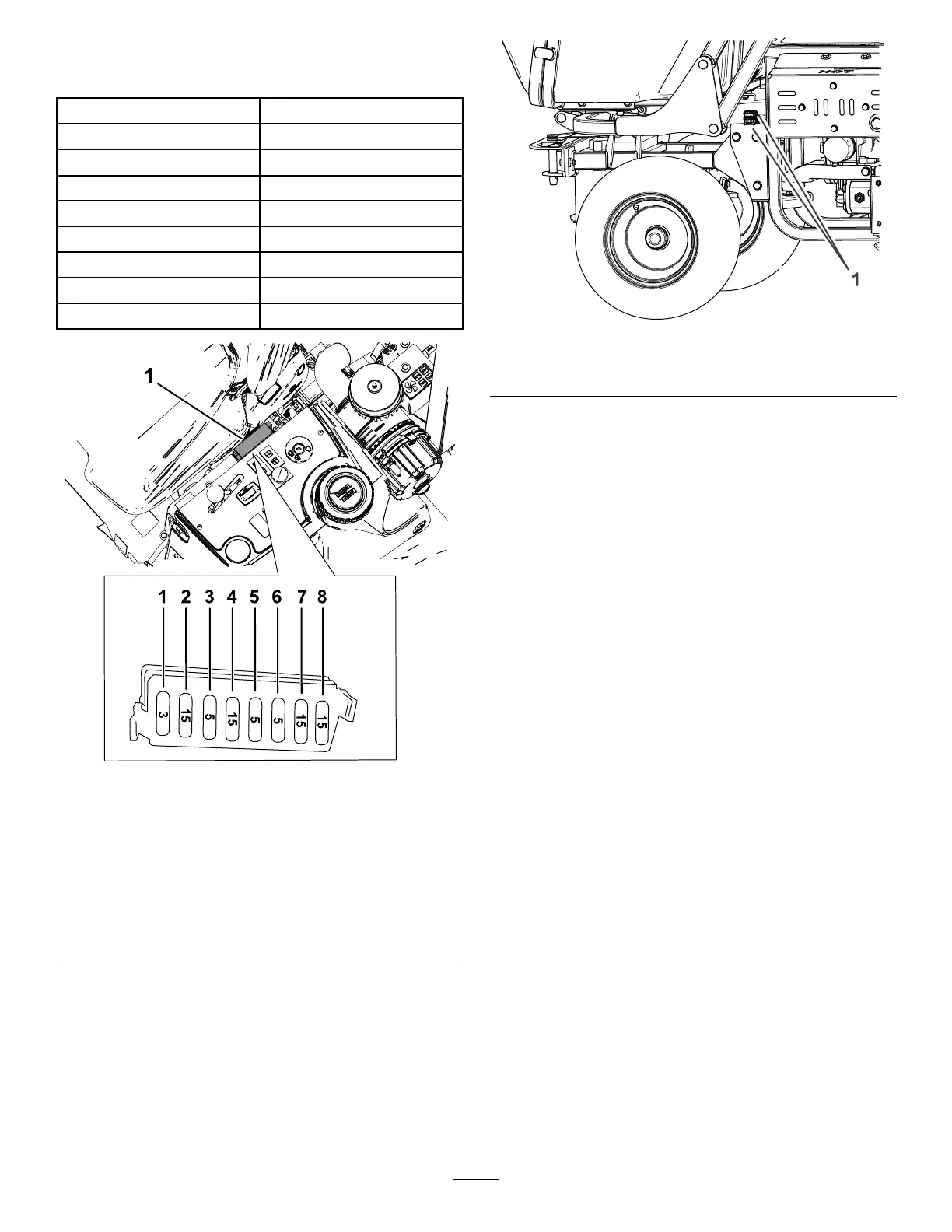

Safety Fuses— Figure 66
Circuit
Fuse T ype
Switches and buzzer
3 A
Grass catcher and PT O clutch
15 A
Electronic control unit 5 A
Cutting unit
15 A
Alternator and dashboard 5 A
Beacon 5 A
Engine 15 A
Reserved for accessories
15 A
g435704
Figure 66
1. Switches and buzzer (3 A)
5. Alternator and dashboard
(5 A)
2. Grass catcher and PT O
clutch (15 A)
6. Beacon (5 A)
3. Electronic control unit (5
A)
7. Engine (15 A)
4. Cutting unit (15 A) 8. Reserved for accessories
(15 A)
There are also 2 fuses (40 A) that protect the main
machine wire harness ( Figure 67 ).
g433190
Figure 67
1. Fuses (40 A)
Servicing the W iring
Harness
Service Interval : Every 40 hours
Prevent corrosion of wiring terminals by applying
Grafo 1 12X (Skin-over) grease, T oro Part No. 505-47,
to the inside of all harness connectors whenever you
replace the harness.
Important: Whenever working with the electrical
system, always disconnect the battery cables,
negative (-) cable rst, to prevent wiring damage
from short-outs.
57
