Toro ProLine H600 - Product Overview

Product Overview
g473686

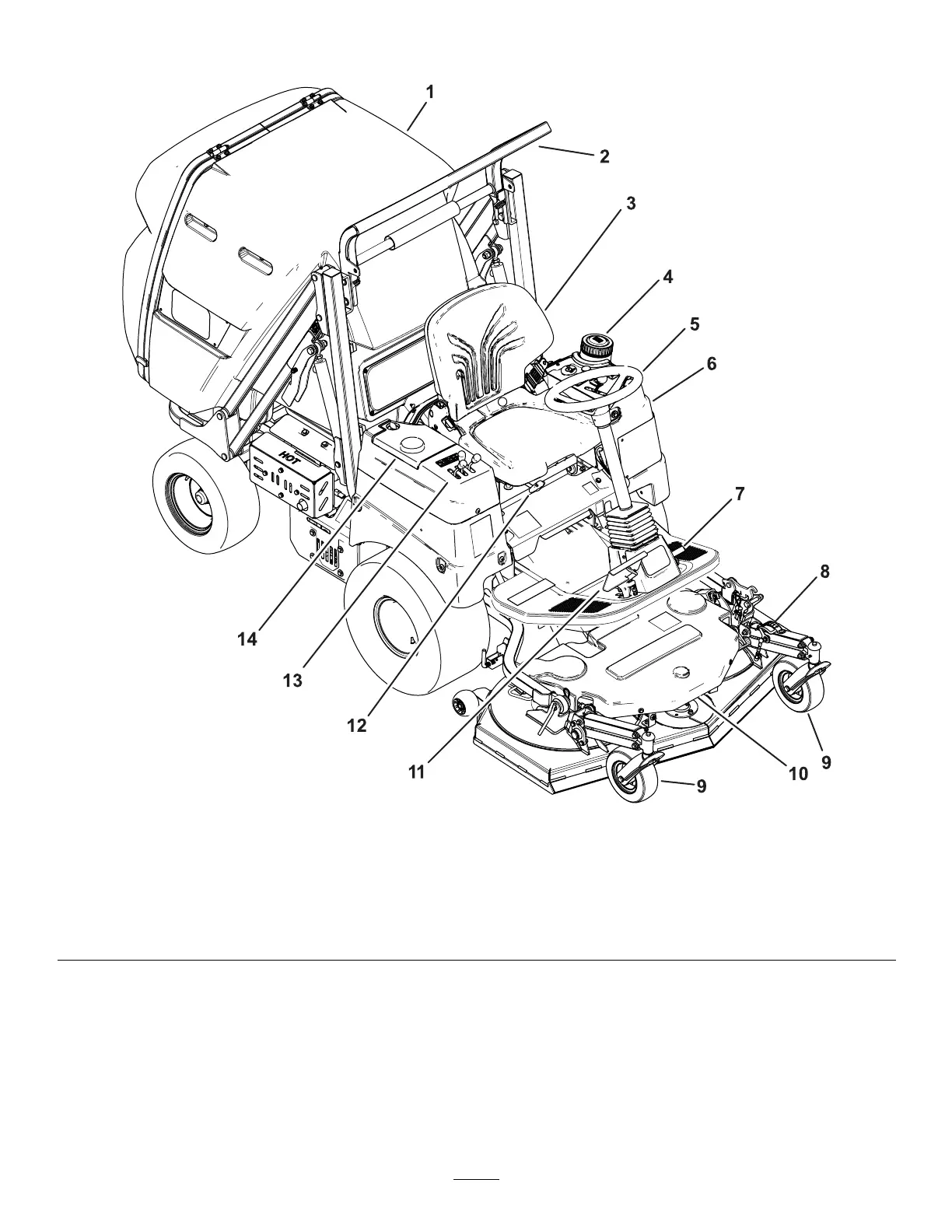

Figure 5
1. Hopper
5. Steering wheel 9. Caster wheel
13. Right console
2. Roll bar
6. Left console
10. Belt cover
14. Cover for coolant and
hydraulic reservoir
3. Seat 7. Dif ferential lock pedal
1 1. T raction pedal
4. Fuel tank
8. Cutting unit 12. Seat adjustment lever
