Adjusting the Hopper Latch
1. Check the gap between the latch and the door .
Ensure it is 2 mm ( 0.079 inches).
2. If necessary , adjust the latch with the latch bolt
to get the correct gap.
Note: If necessary , use the door bolt to change
the automatic opening angle of the door .
g436204

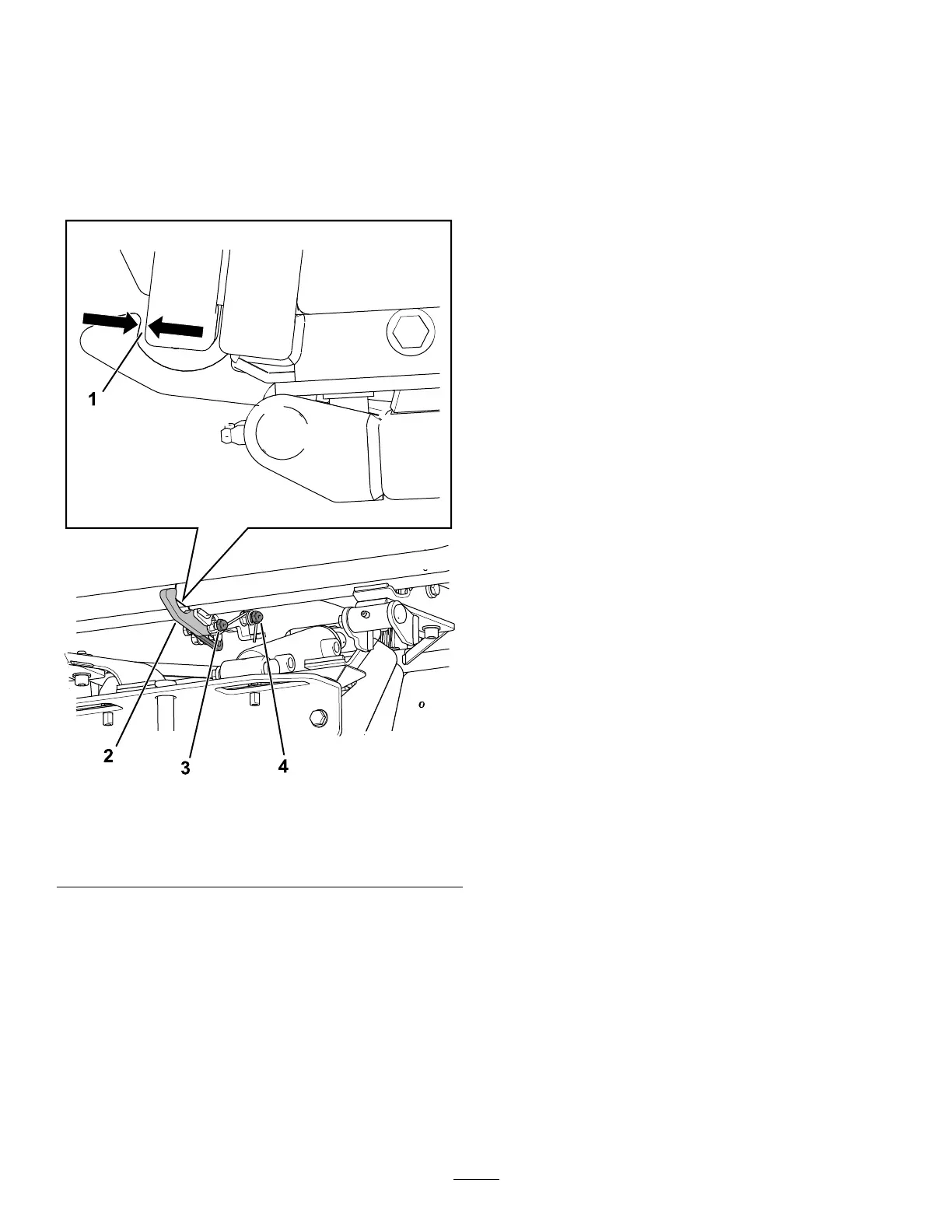

Figure 1 10
1. Gap (2 mm or 0.079
inches)
3. Latch bolt
2. Latch 4. Door bolt
Cleaning
Note: Improper wash-down procedures may
negatively af fect bearing life. Do not wash down
the machine when it is still hot and avoid directing
high-pressure or high-volume spray at the bearings.
Cleaning Under the Cutting
Unit Belt Cover
Service Interval : Before each use or daily
1. Disengage the blade-control switch (PT O) and
engage the parking brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Insert an air nozzle in the gap between the
belt cover and the top of the cutting unit. Use
compressed air to clear any accumulated grass
from under the cutting unit belt cover .
Cleaning Under the Cutting
Unit
Service Interval : Before each use or daily
1. Disengage the blade-control switch (PT O) and
engage the parking brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Prepare the cutting unit for maintenance; refer
to Raising and Lowering the Cutting Unit into the
Maintenance Position ( page 69 ) .
4. Remove any packed grass or debris, and clean
as necessary .
