7. T ilt the seat rearward to the locked position.
g432029

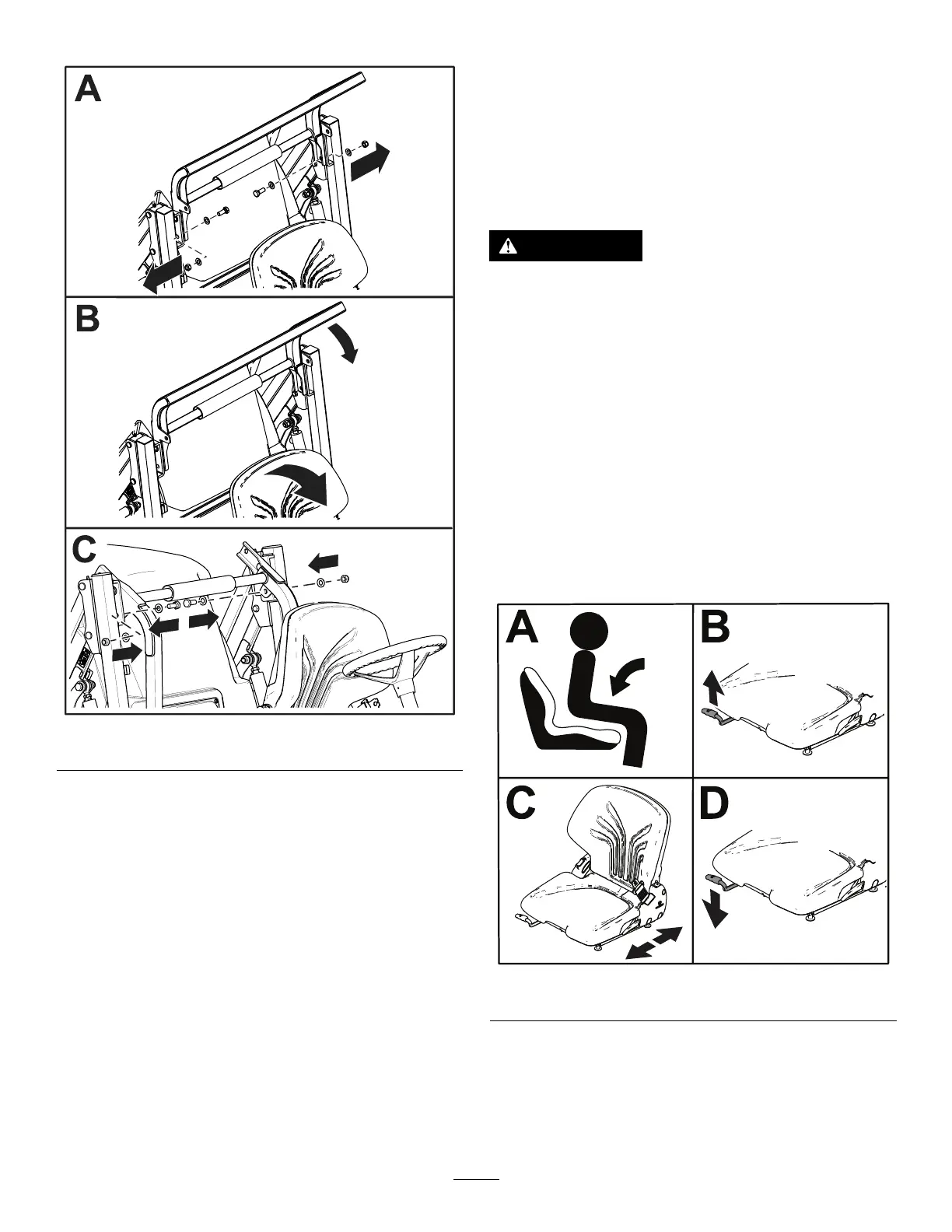

Figure 18
Raising the Roll Bar
Note: Use Figure 18 in reverse order to raise the roll
bar .
1. Park the machine on a level surface.
2. Disengage the PT O, lower the cutting unit, and
engage the parking brake.
3. Shut of f the engine and remove the key .
4. T ilt the seat forward ( Figure 21 ).
5. Remove the nuts, bolts, and washers from the
roll bar ( Figure 18 ).
6. Raise the roll bar and secure it in place with the
nuts, bolts, and washers ( Figure 18 ).
7. T ilt the seat rearward to the locked position.
Adjusting the Steering
Column
Adjust the steering column to your desired position as
shown in Figure 9 .
Positioning the Seat
W ARNING
If you hang your belongings, such as items
of clothing or a bag, over the back of the
operator ’ s seat, they could fall off and contact
hot or moving parts of the machine. This
could cause a re or objects to be thrown
toward you and/or bystanders, possibly
resulting in serious injury .
Do not hang your belongings over the back
of the operator ’ s seat.
The seat moves forward and backward. Position the
seat where you have the best control of the machine
and are most comfortable.
T o adjust, pull the lever upward and move the seat
forward or rearward ( Figure 19 ).
