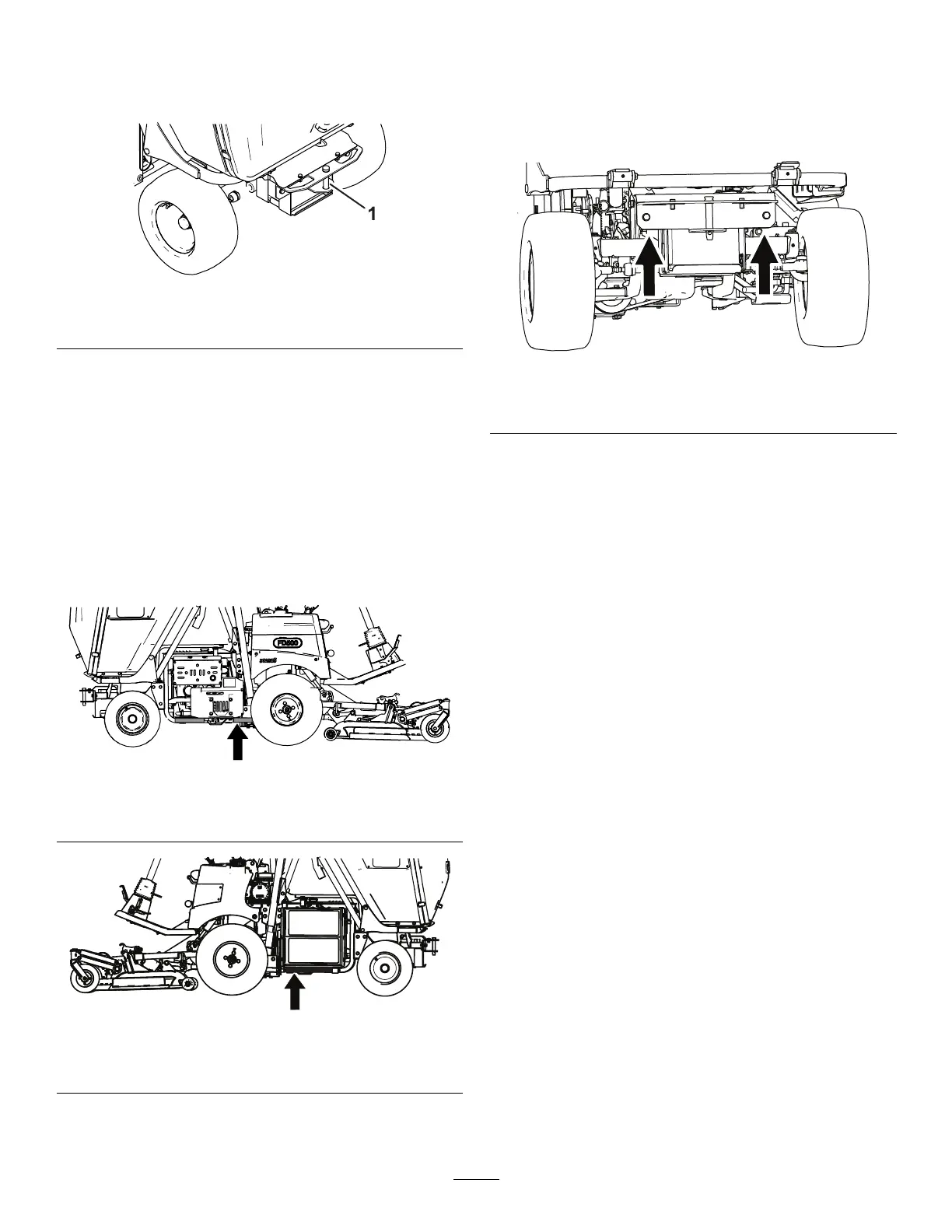

Binding the Back of the Machine
Insert a bolt or drawbar pin into the hitch and use it as
the rear tie-down point ( Figure 32 ).
g432519
Figure 32
1. Rear tie-down location
Jacking Up the Front, Right
and Front, Left Sides of the
Machine
1. Rotate the radiator; refer to Accessing the
Engine from the Left Side ( page 48 ) .
2. Place a jack under the frame tube ( Figure 33
and Figure 34 ), directly under the ROPS tube,
or as close as possible.
g435000
Figure 33
Frame tube
g434427
Figure 34
Frame tube
Jacking Up the Rear of the
Machine
Jack up the rear , left or rear , right side of the machine
using the jacking points shown in Figure 35 .
g434999
Figure 35
Rear jacking points
