Accessing the Engine from the
Left Side

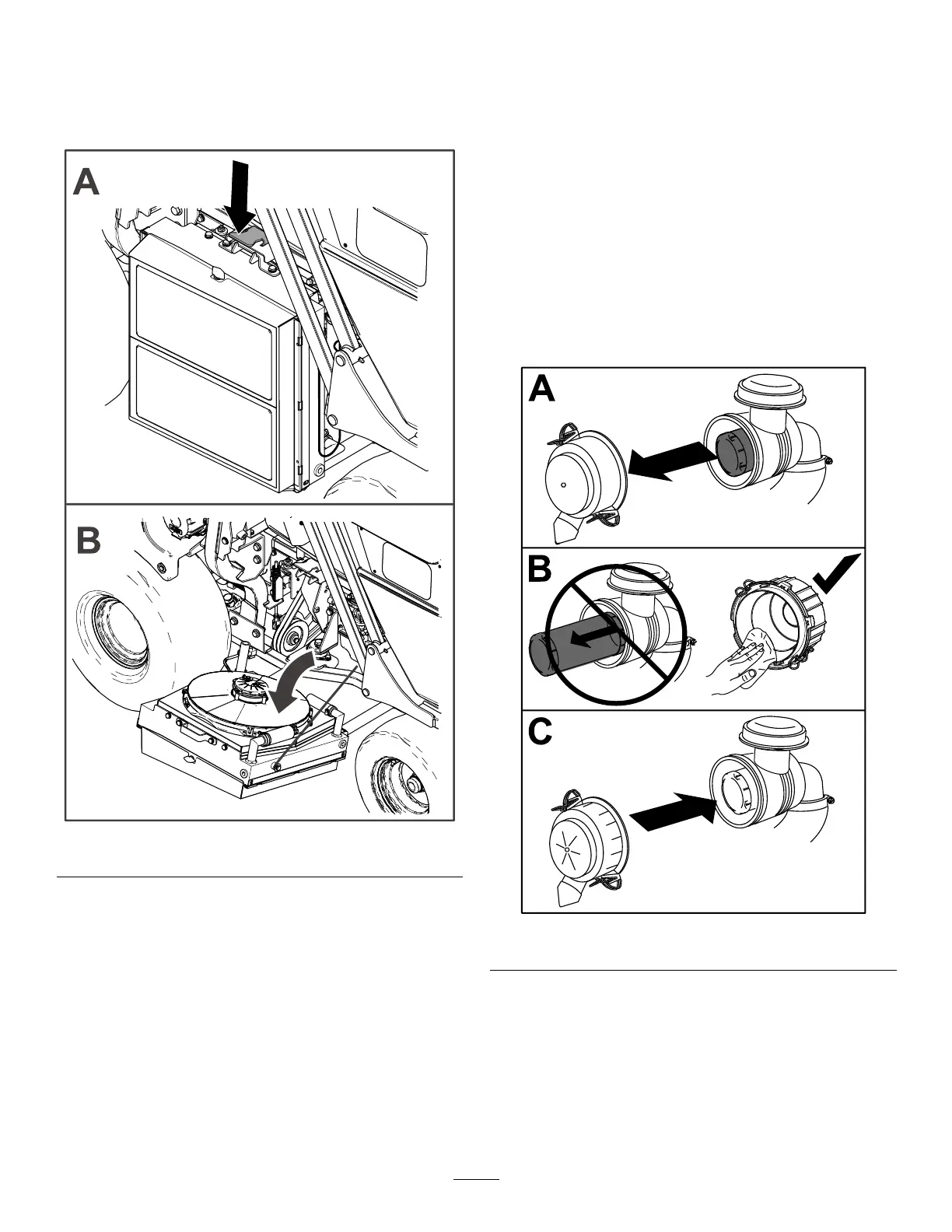

Push down on the latch and lower the radiator to
access the engine ( Figure 52 ).
g432591
Figure 52
Servicing the Air Cleaner
Note: Replace the air cleaner more frequently (every
few hours) if operating conditions are extremely dusty
or sandy .
Cleaning the Air-Cleaner Cover
Service Interval : Every 50 hours —Remove the
air-cleaner cover and clean out the
debris. Do not remove the lter .
Check the air-cleaner body for damage which could
cause an air leak. Replace a damaged air-cleaner
body .
Clean the air-cleaner cover as shown in Figure 53 .
g21681 1
Figure 53
48
