Changing the Front Axle Oil
Service Interval : After the rst 500 hours —Replace
the front axle oil.
Every 1,000 hours —Replace the front axle oil.
Front axle capacity: 1.5 L (50.7 US oz)
Axle oil specication: ISO VG220
1. Park the machine on a level surface.
2. Disengage the PT O, lower the cutting unit, and
engage the parking brake.
3. Raise and secure the hopper; refer to Raising
the Hopper ( page 32 ) .
4. Rotate the seat forward.
5. Remove the grass chute; refer to Clearing the
Grass Chute ( page 34 ) .
6. Shut of f the engine and remove the key .
7. Place a drain pan under the drain plug.
8. Remove the drain plug and allow the oil to drain.

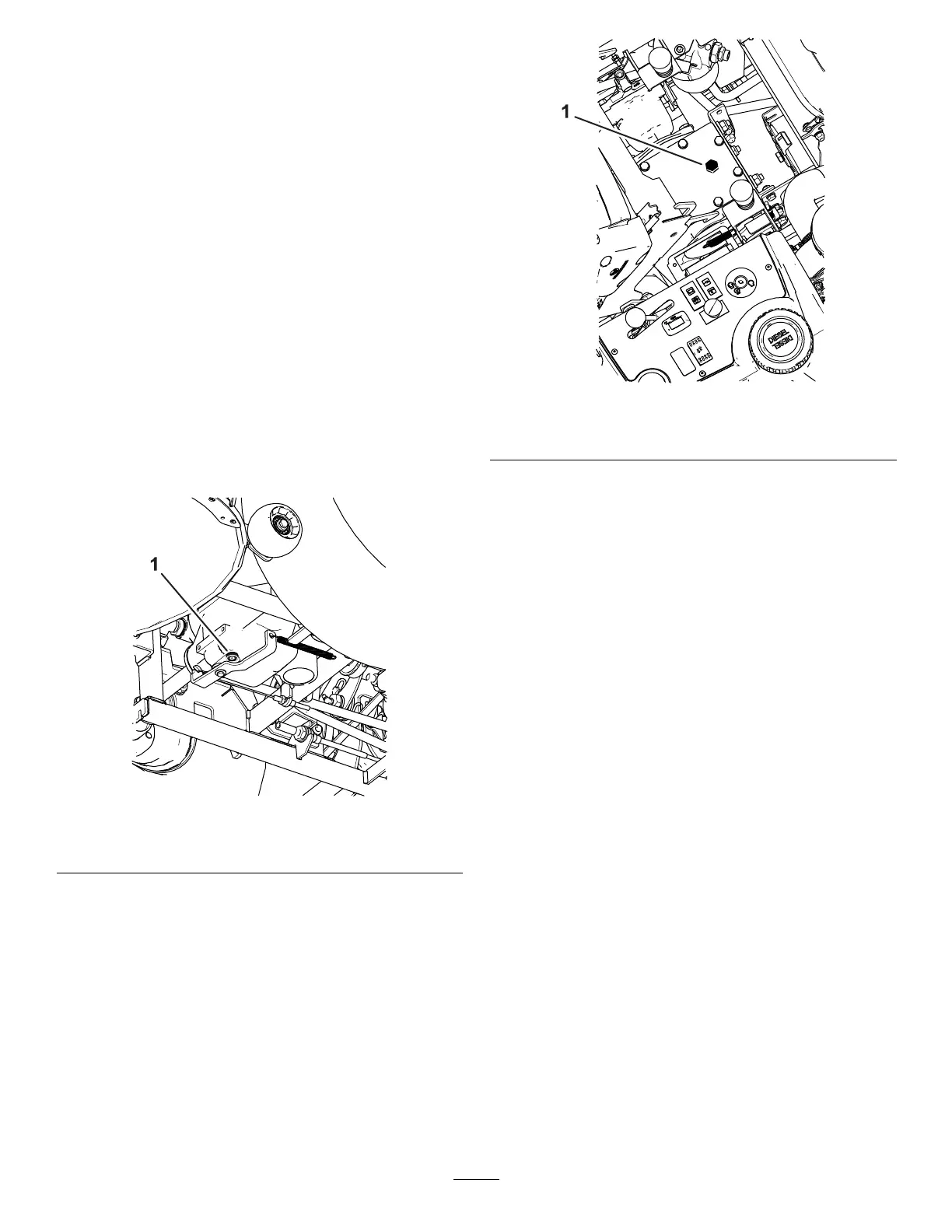

g436336
Figure 71
1. Drain plug
9. Install the drain plug.
10. Remove the ll plug.
g436337
Figure 72
1. Fill plug
1 1. Using a funnel, add the correct amount of new
oil.
12. Install the grass chute.
13. Lower the hopper; refer to Lowering the Hopper
( page 33 ) .
