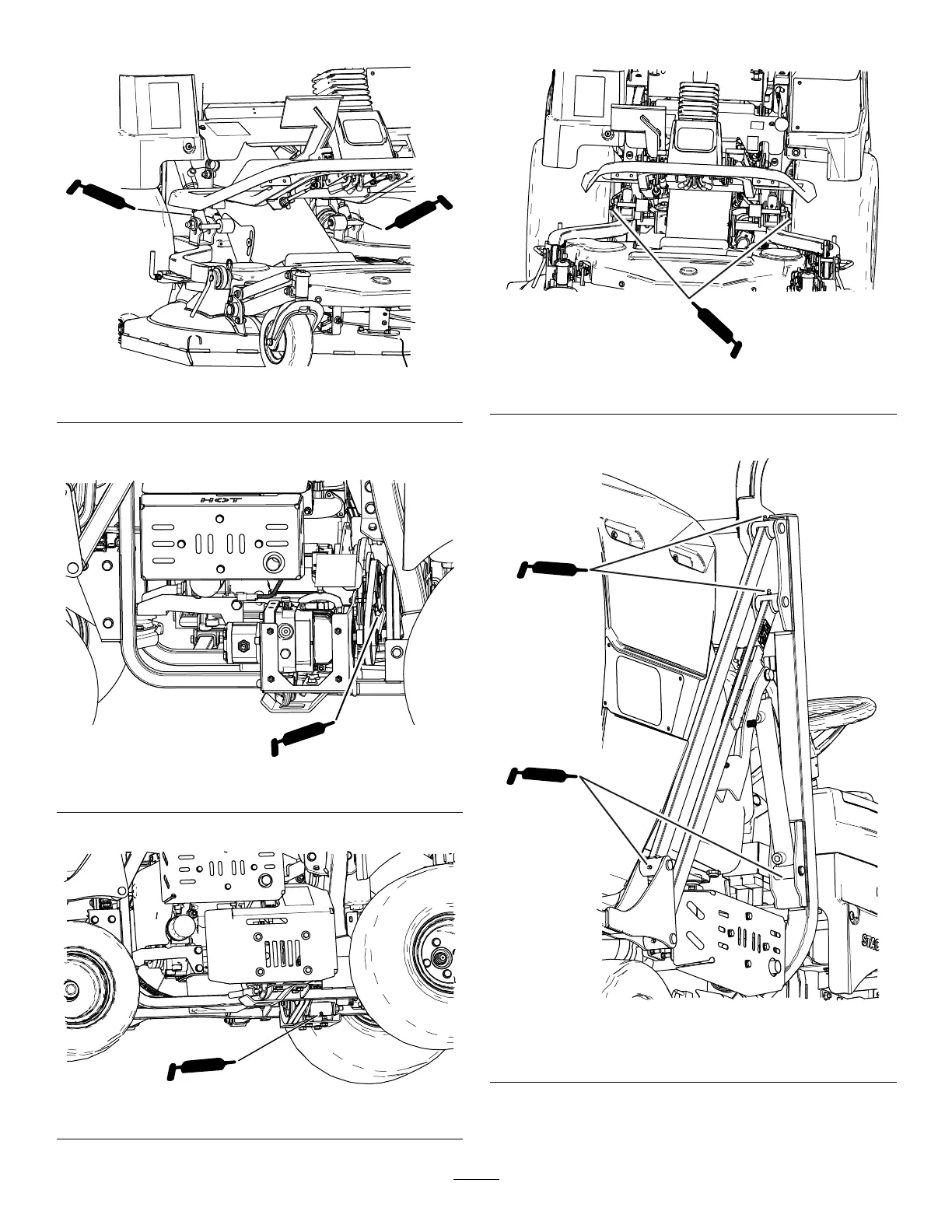

• Cutting unit lift arm pivot points ( Figure 39 )
g432449
Figure 39
• Remove the cover and grease PT O idler-pulley
bracket ( Figure 40 )
g433147
Figure 40
• T ransmission idler ( Figure 41 ).
g432490
Figure 41
• Front wheel bearings ( Figure 42 )
g432473
Figure 42
• Hopper arms ( Figure 43 )
g432494
Figure 43
Right side shown; repeat on other side
