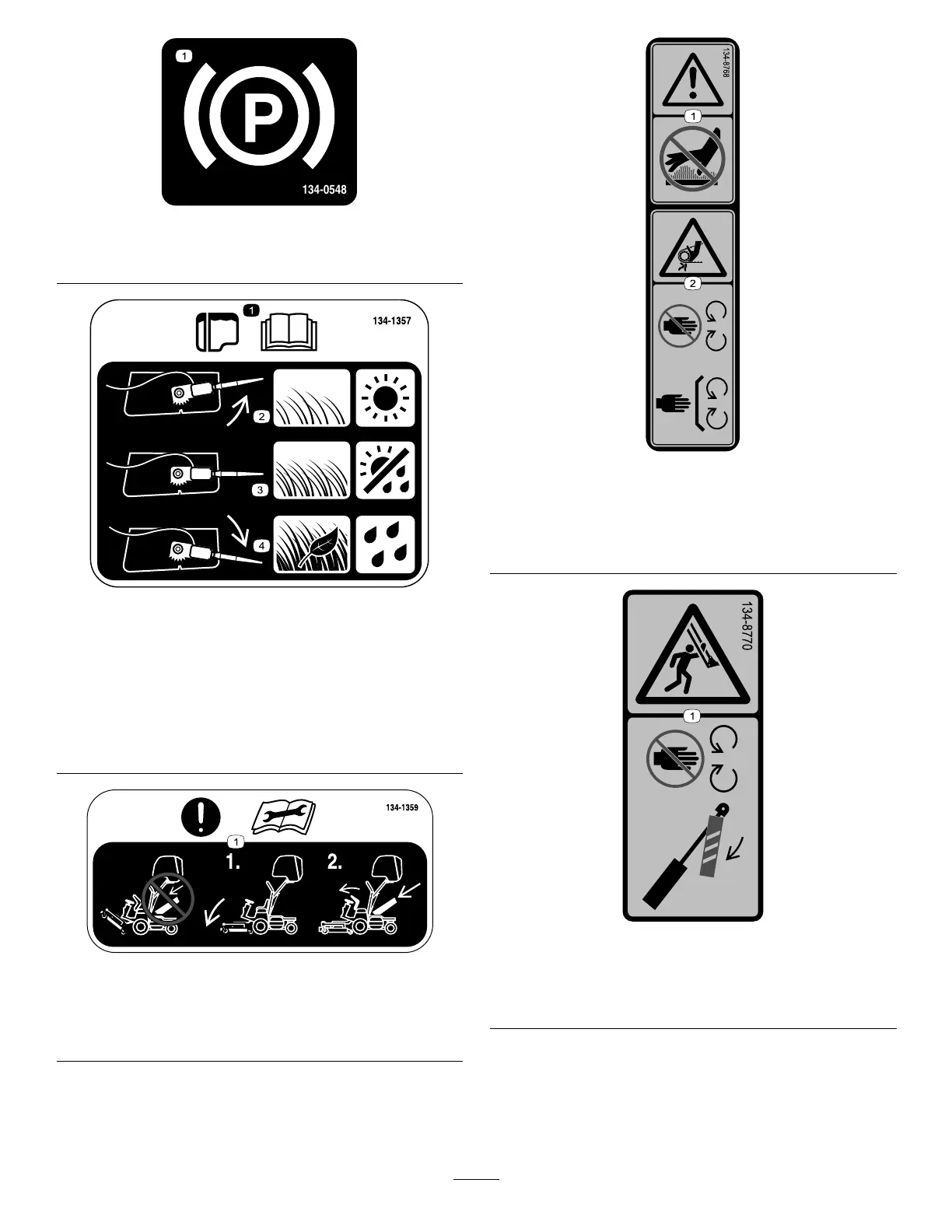

decal134-0548
134-0548
1. Parking brake
decal134-1357
134-1357
1. Read the Operator ’ s
Manual for hopper
information.
3. Position the hopper sensor
in the middle when grass
and weather conditions
are normal.
2. Position the hopper sensor
upward when grass is thin
or conditions are dry .
4. Position the hopper sensor
downward when grass is
thick, contains leaves, or
conditions are wet.
decal134-1359
134-1359
1. Attention—read the Operator ’ s Manual before performing
maintenance; do not install the grass chute while the deck
is raised or in the maintenance position.
decal134-8768
134-8768
1. W arning—do not touch hot
surfaces.
2. Entanglement hazard,
belt—stay away from
moving parts; keep guards
in place.
decal134-8770
134-8770
1. Arm entanglement hazard—keep away from moving parts;
secure the lifting cylinders with a locking device before
entering the hazardous area.
7
