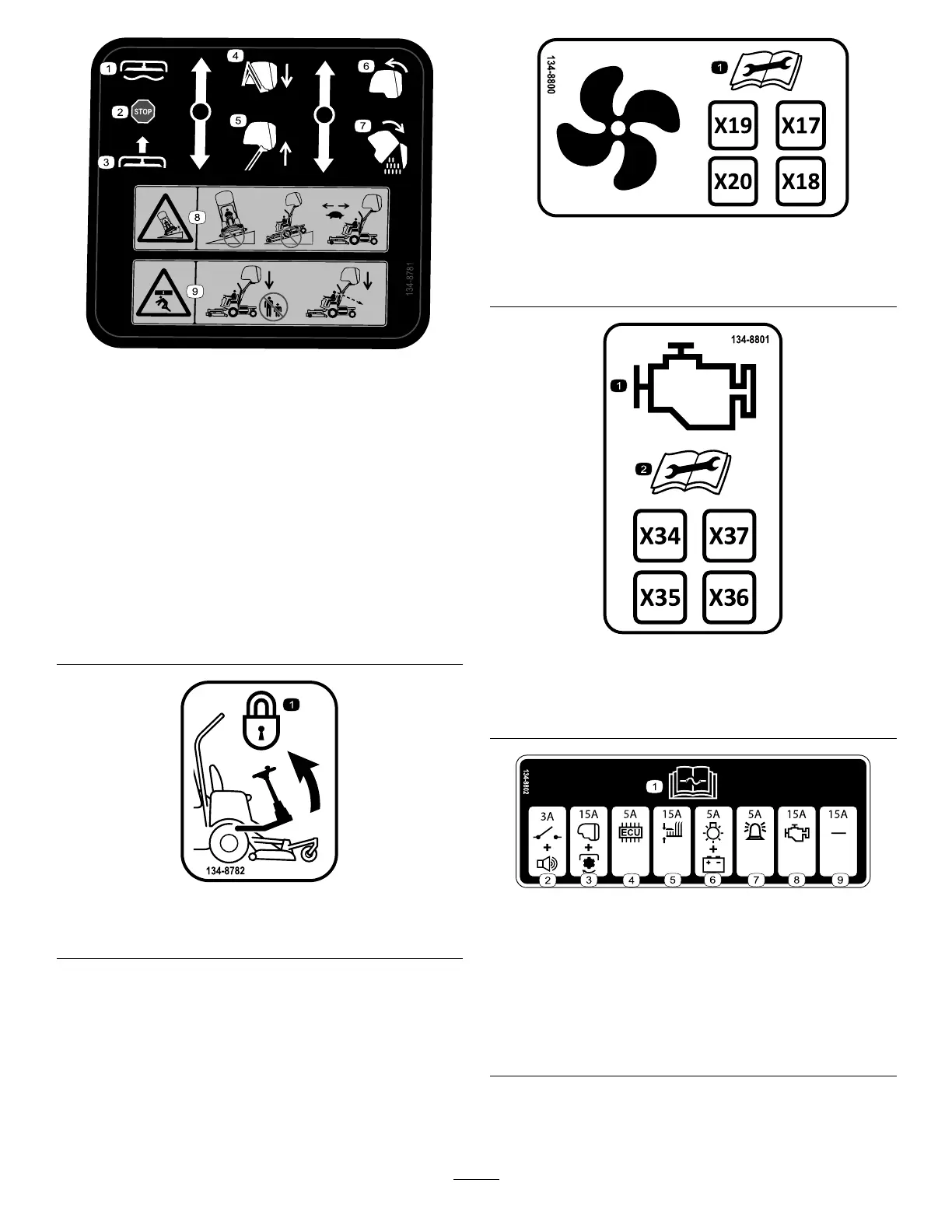

decal134-8781
134-8781
1. Lower/oat the deck 6. Close the hopper
2. Deck hold position 7. Dump the hopper
3. Raise the deck 8. T ipping hazard—do not
drive on slopes with the
hopper raised; slow the
machine when driving with
the hopper raised.
4. Lower the hopper
9. Crushing hazard, from
above—ensure that
there are no bystanders
nearby before lowering the
hopper , look behind and
down before lowering the
hopper .
5. Raise the hopper
decal134-8782
134-8782
1. Lock the footplate column in the raised position.
decal134-8800
134-8800
1. Read the Operator ’ s Manual before performing
maintenance.
decal134-8801
134-8801
1. Engine check
2. Read the Operator ’ s
Manual before performing
maintenance.
decal134-8802
134-8802
1. Read the Operator ’ s
Manual for information on
fuses.
6. Alternator and dashboard
2. Switches and buzzer
7. Beacon
3. Grass catcher and PT O
8. Engine
4. Electronic control unit
9. Spare fuse
5. Cutting unit
