TestingtheMowCircuit–CircuitPressure(5610-D)

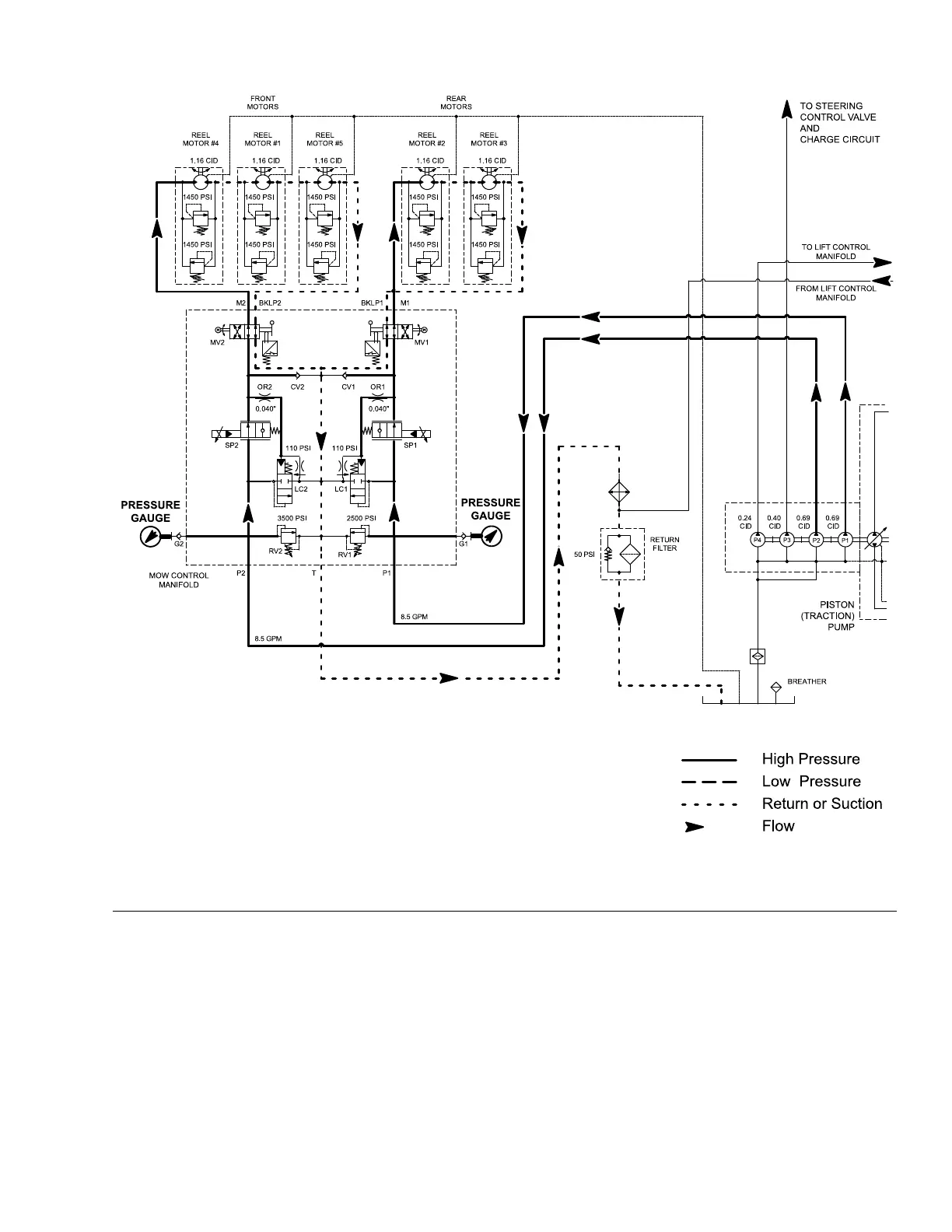

g216141
Figure122
Thecuttingunitcircuitpressureistherstinaseriesoftestsrecommendedto
checkthecuttingunitcircuitperformance.Theresultsfromthistestwillhelp
determinewhichcomponent(s)arethecauseofcuttingunitperformanceissues.
SpecialEquipmentRequired:Pressuregaugewithextensionhose.
Reelmaster
®
5410/5510/5610Series
Page6–113
HydraulicSystem:TestingtheHydraulicSystem
15216SLRevC
