RearWheelBearings(Machineswith2-WheelDrive)

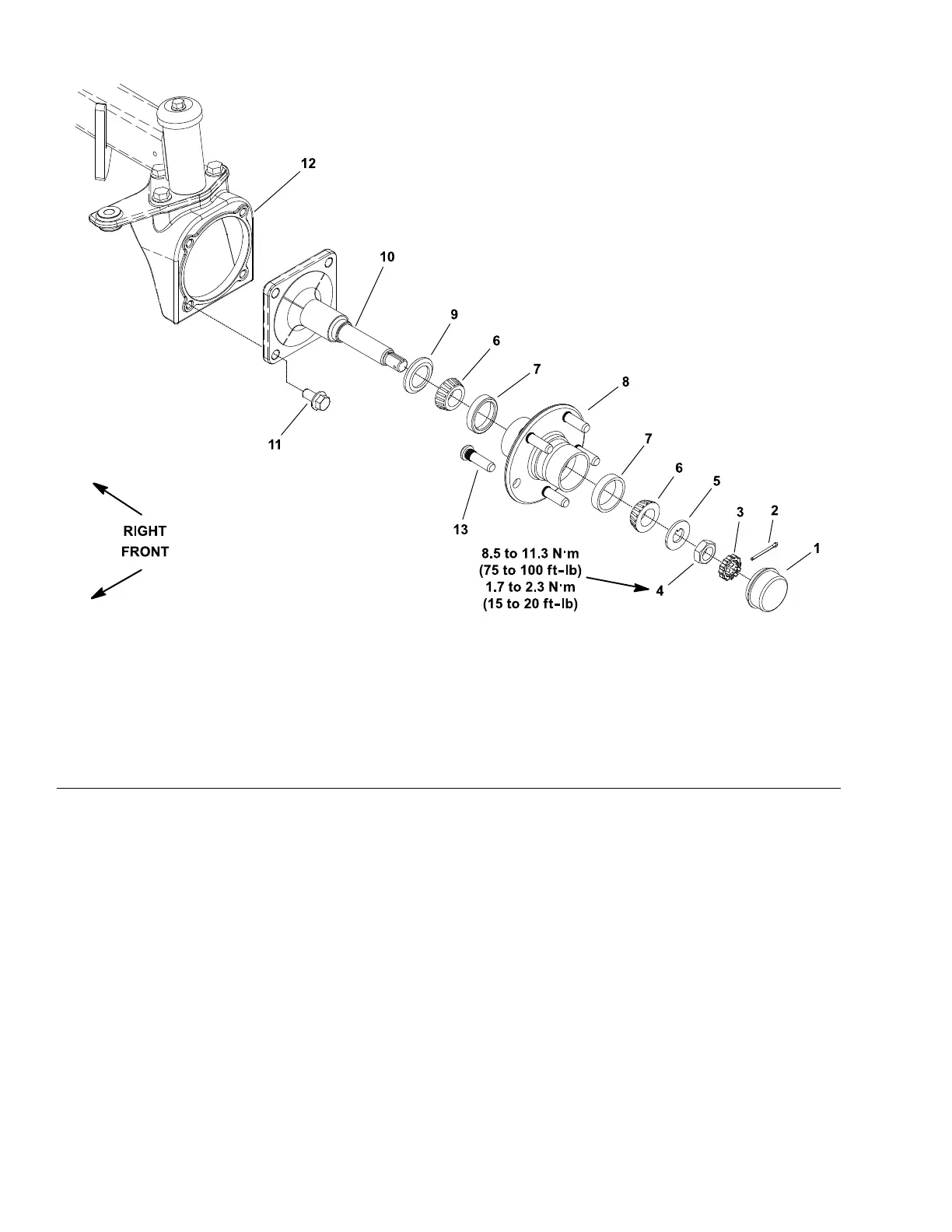

g228650
Figure297
1.Dustcap6.Bearingcone
11.Flange-headscrew(4each)
2.Cotterpin
7.Bearingcup12.Housing
3.Retainer8.Wheelhub
13.Wheelstud(5each)
4.Jamnut
9.Seal
5.T abwasher
10.Spindle
DisassemblingtheRearWheelBearings(Machineswith2-WheelDrive)
1.Chockfrontwheelstopreventmachinefromshifting.
2.Removerearwheel;refertoWheels(page8–5).Ensuretosupportmachine
withjackstands.
3.Removethedustcapfromthewheelhub.
4.Removethecotterpin,retainer,jamnut,andtabwasher.Slidethewheel
hubfromthespindleshaft.
5.Pullthesealoutofthewheelhub.Discardseal.
6.Removethebearingconesfrombothsidesofthewheelhub.Cleanthe
bearingsinsolvent.Ensurethatthebearingsareingoodoperatingcondition.
Cleantheinsideofthewheelhub.Checkthebearingcupsforwear,pittingor
otherdamage.Replacewornordamagedparts.
7.Cleanspindlesurfaceandcheckforwearordamage.Replacespindle
ifnecessary.
Chassis:ServiceandRepairs
Page8–14
Reelmaster
®
5410/5510/5610Series
15216SLRevC
