FI2464

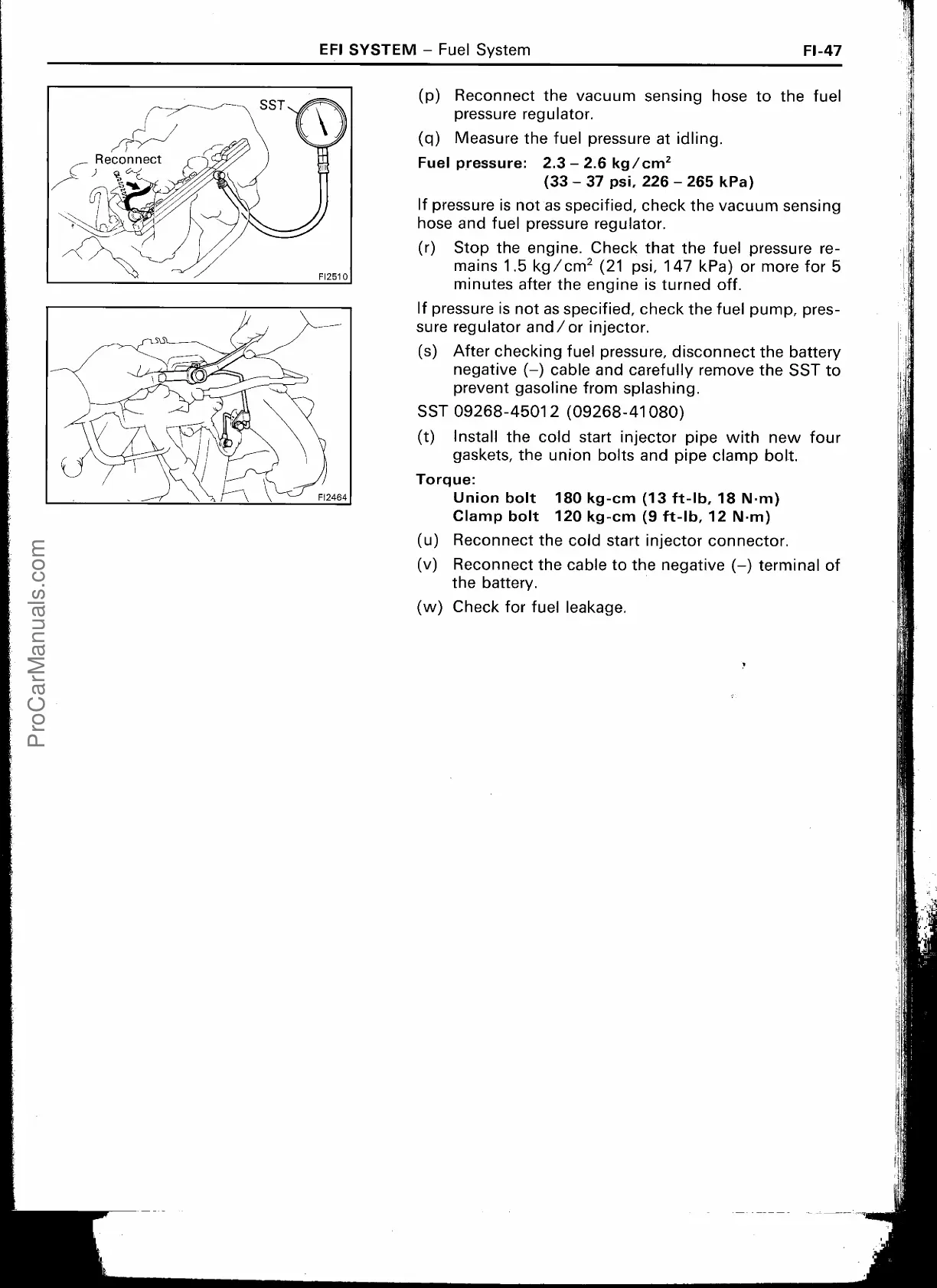

EFI SYSTEM — Fuel System
F I -47
SST
^^/
O
Reconnect
ti
F I2510
(p)
Reconnect the vacuum sensing hose to the fuel
pressure regulator.
(q)
Measure the fuel pressure at idling.
Fuel pressure: 2.3 — 2.6 kg/cm2
(33 — 37 psi, 226 — 265 kPa)
If pressure is not as specified, check the vacuum sensing
hose and fuel pressure regulator.
(r)
Stop the engine. Check that the fuel pressure re-
mains 1.5 kg/cm
2
(21 psi, 147 kPa) or more for 5
minutes after the engine is turned off.
If pressure is not as specified, check the fuel pump, pres-
sure regulator and/or injector.
(s)
After checking fuel pressure, disconnect the battery
negative (—) cable and carefully remove the SST to
prevent gasoline from splashing.
SST 09268-45012 (09268-41080)
(t)
Install the cold start injector pipe with new four
gaskets, the union bolts and pipe clamp bolt.
Torque:
Union bolt 180 kg-cm (13 ft-lb, 18 N•m)
Clamp bolt 120 kg-cm (9 ft-lb, 12 N•m)
(u)
Reconnect the cold start injector connector.
(v)
Reconnect the cable to the negative (—) terminal of
the battery.
(w)
Check for fuel leakage.
