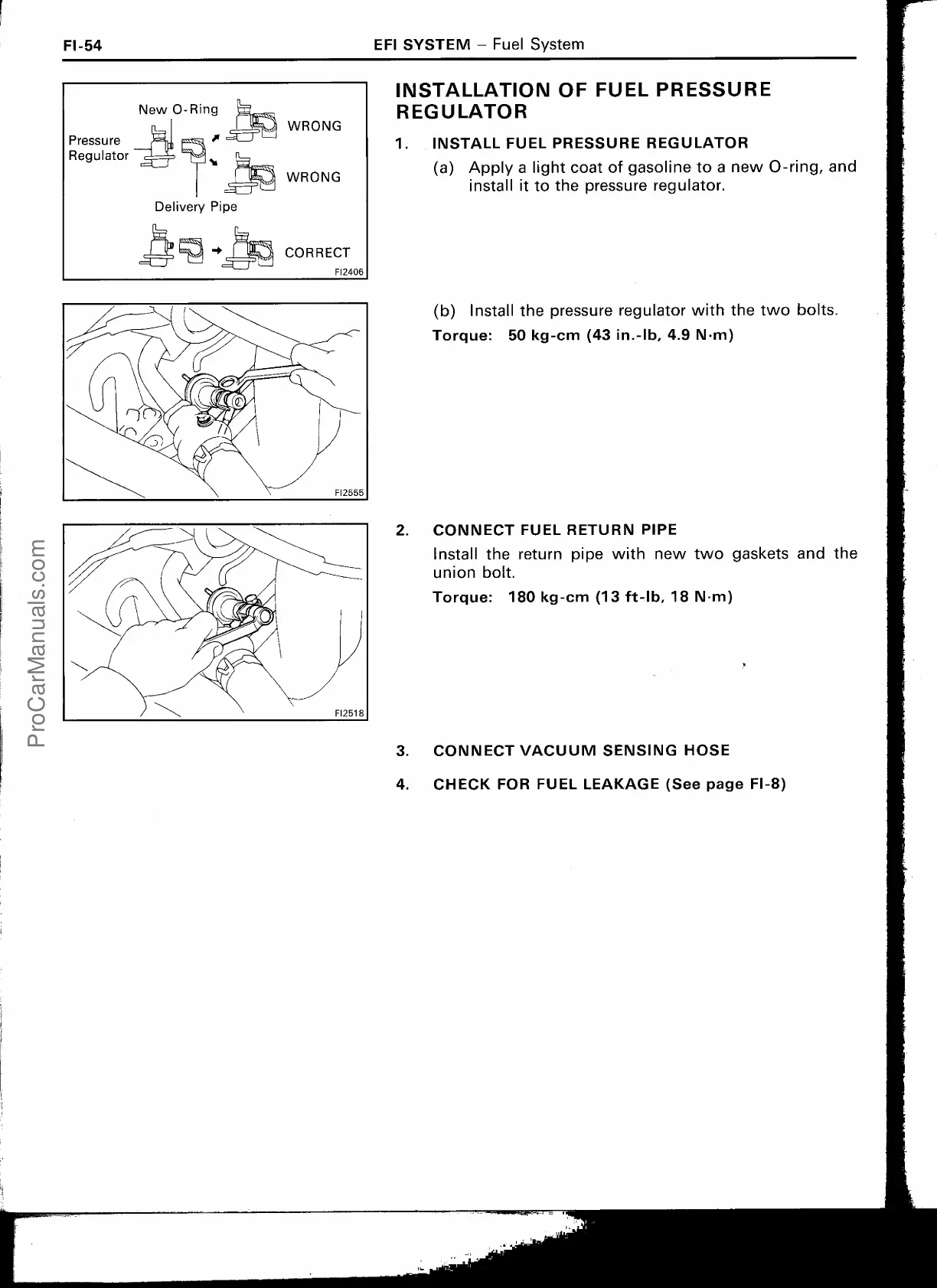

I
NSTALLATION OF FUEL PRESSURE
REGULATOR
1.
INSTALL FUEL PRESSURE REGULATOR
(a)
Apply a light coat of gasoline to a new 0-ring, and
install it to the pressure regulator.
(b)
Install the pressure regulator with the two bolts.
Torque: 50 kg-cm (43 in.-lb, 4.9 N•m)
2.
CONNECT FUEL RETURN PIPE
Install the return pipe with new two gaskets and the
union bolt.
Torque: 180 kg-cm (13 ft-lb, 18 N•m)
FI-54
EFI SYSTEM — Fuel System
3.
CONNECT VACUUM SENSING HOSE
4.
CHECK FOR FUEL LEAKAGE (See page FI-8)
