Toyota 3F-E - Installation of Fuel Pump

F123
70I

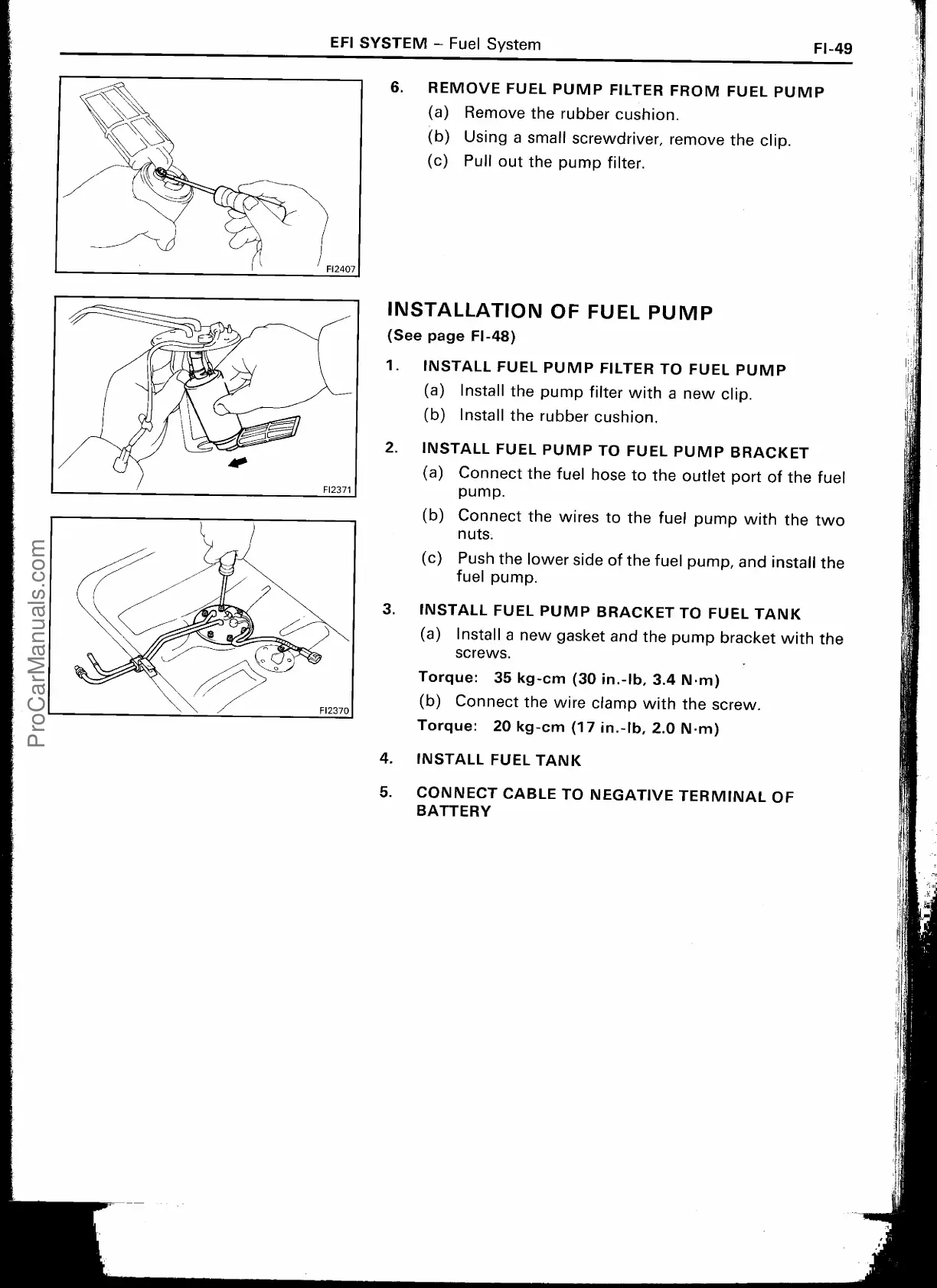

EFI SYSTEM — Fuel System
FI-49
6.
REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a)
Remove the rubber cushion.
(b)
Using a small screwdriver, remove the clip.
(c)
Pull out the pump filter.
I
NSTALLATION OF FUEL PUMP
(See page FI-48)
1.
INSTALL FUEL PUMP FILTER TO FUEL PUMP
(a)
Install the pump filter with a new clip.
(b)
Install the rubber cushion.
2.
INSTALL FUEL PUMP TO FUEL PUMP BRACKET
(a)
Connect the fuel hose to the outlet port of the fuel
pump.
(b)
Connect the wires to the fuel pump with the two
nuts.
(c)
Push the lower side of the fuel pump, and install the
fuel pump.
3.
INSTALL FUEL PUMP BRACKET TO FUEL TANK
(a)
Install a new gasket and the pump bracket with the
screws.
Torque: 35 kg-cm (30 in.-lb, 3.4 N•m)
(b)
Connect the wire clamp with the screw.
Torque: 20 kg-cm (17 in.-Ib, 2.0 N•m)
4.
INSTALL FUEL TANK
5.
CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
