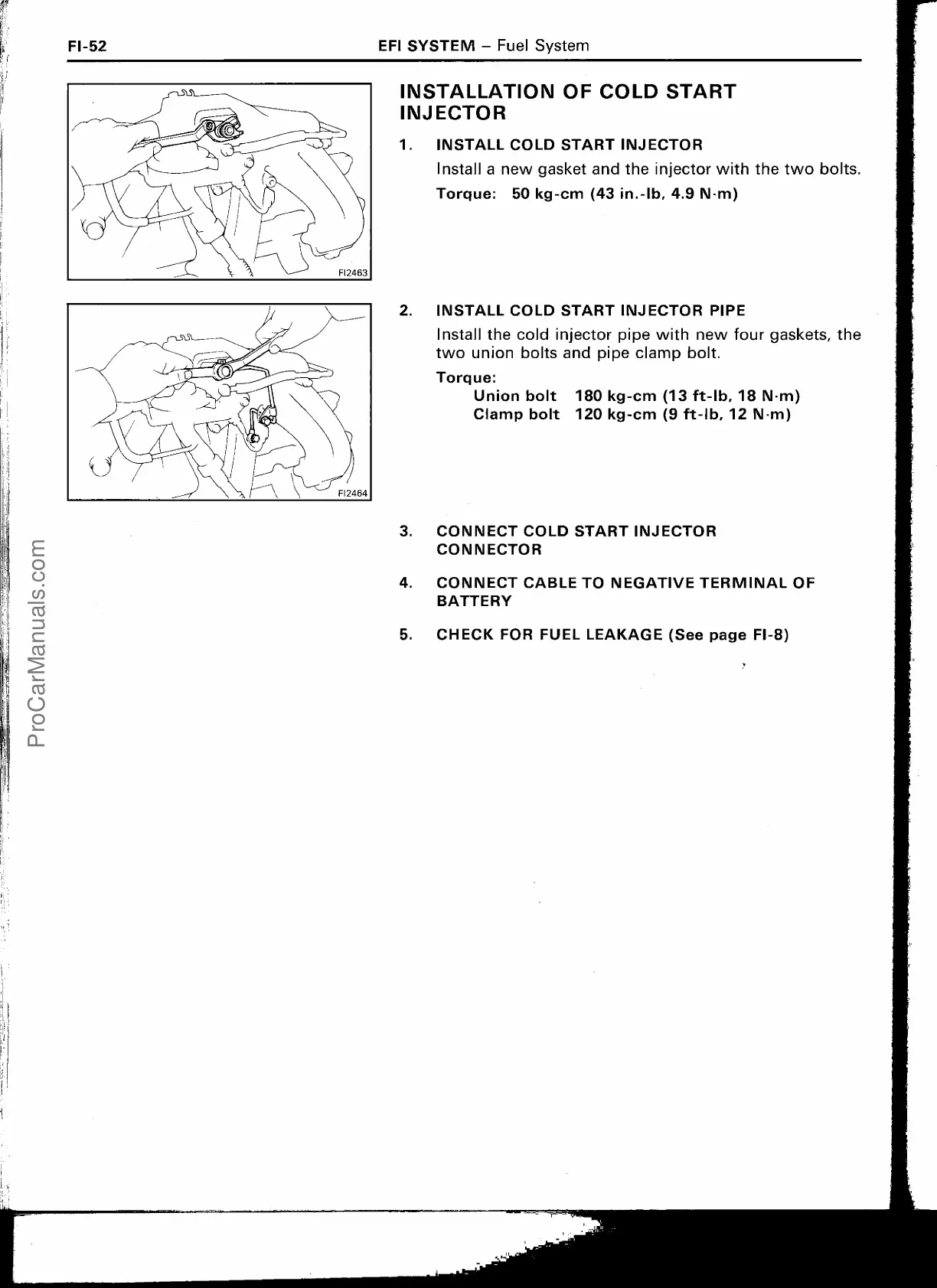

Toyota 3F-E - Installation of Cold Start Injector

FI-52
EFI SYSTEM - Fuel System
I NSTALLATION OF COLD START
I NJECTOR
1. INSTALL COLD START INJECTOR
Install a new gasket and the injector with the two bolts.
Torque: 50 kg-cm (43 in.-lb, 4.9 N•m)
2. INSTALL COLD START INJECTOR PIPE
Install the cold injector pipe with new four gaskets, the
t
wo union bolts and pipe clamp bolt.
Torque:
Union bolt 180 kg-cm (13 ft-lb, 18 N•m)
Clamp bolt 120 kg-cm (9 ft-lb, 12 N•m)
3. CONNECT COLD START INJECTOR
CONNECTOR
4.
CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
5. CHECK FOR FUEL LEAKAGE (See page FI-8)
