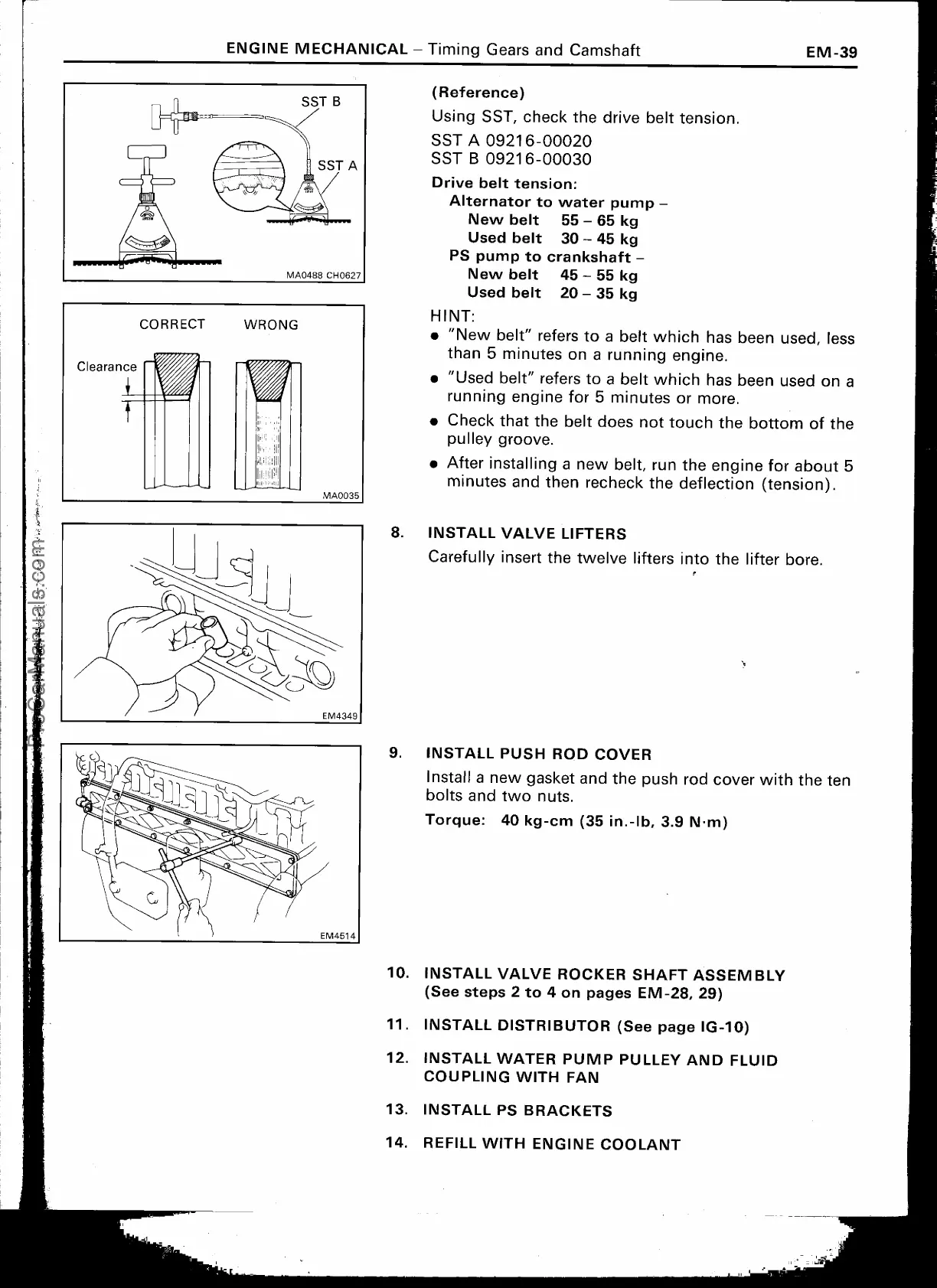

Reference)
Using SST, check the drive belt tension.
SST A 09216-00020
SST B 09216-00030
Drive belt tension:
Alternator to water pump -
New belt
55 — 65 kg
Used belt
30 — 45
kg
PS pump to crankshaft -
New belt
45 — 55 kg
Used belt
20 — 35
kg
HINT:
• "New belt" refers to a belt which has been used, less
than 5 minutes on a running engine.
• "Used belt" refers to a belt which has been used on a
running engine for 5 minutes or more.
• Check that the belt does not touch the bottom of the
pulley groove.
• After installing a new belt, run the engine for about 5
minutes and then recheck the deflection (tension).
8.
INSTALL VALVE LIFTERS
Carefully insert the twelve lifters into the lifter bore.
R
9.
INSTALL PUSH ROD COVER
Install a new gasket and the push rod cover with the ten
bolts and two nuts.
Torque: 40 kg-cm
(35
in.-Ib, 3.9 N•m)
ENGINE MECHANICAL — Timing Gears and Camshaft
EM
-39
CORRECT
WRONG
Clearance
I!lul
'I
MA0035
EM4349
10. INSTALL VALVE ROCKER SHAFT ASSEMBLY
(See steps 2 to 4 on pages EM-28, 29)
11. INSTALL DISTRIBUTOR (See page IG-10)
12. INSTALL WATER PUMP PULLEY AND FLUID
COUPLING WITH FAN
13. INSTALL PS BRACKETS
14. REFILL WITH ENGINE COOLANT
U
