Toyota 3F-E - Replacement of Distributor Driven Gear

IGNITION SYSTEM — Distributor
IG-9

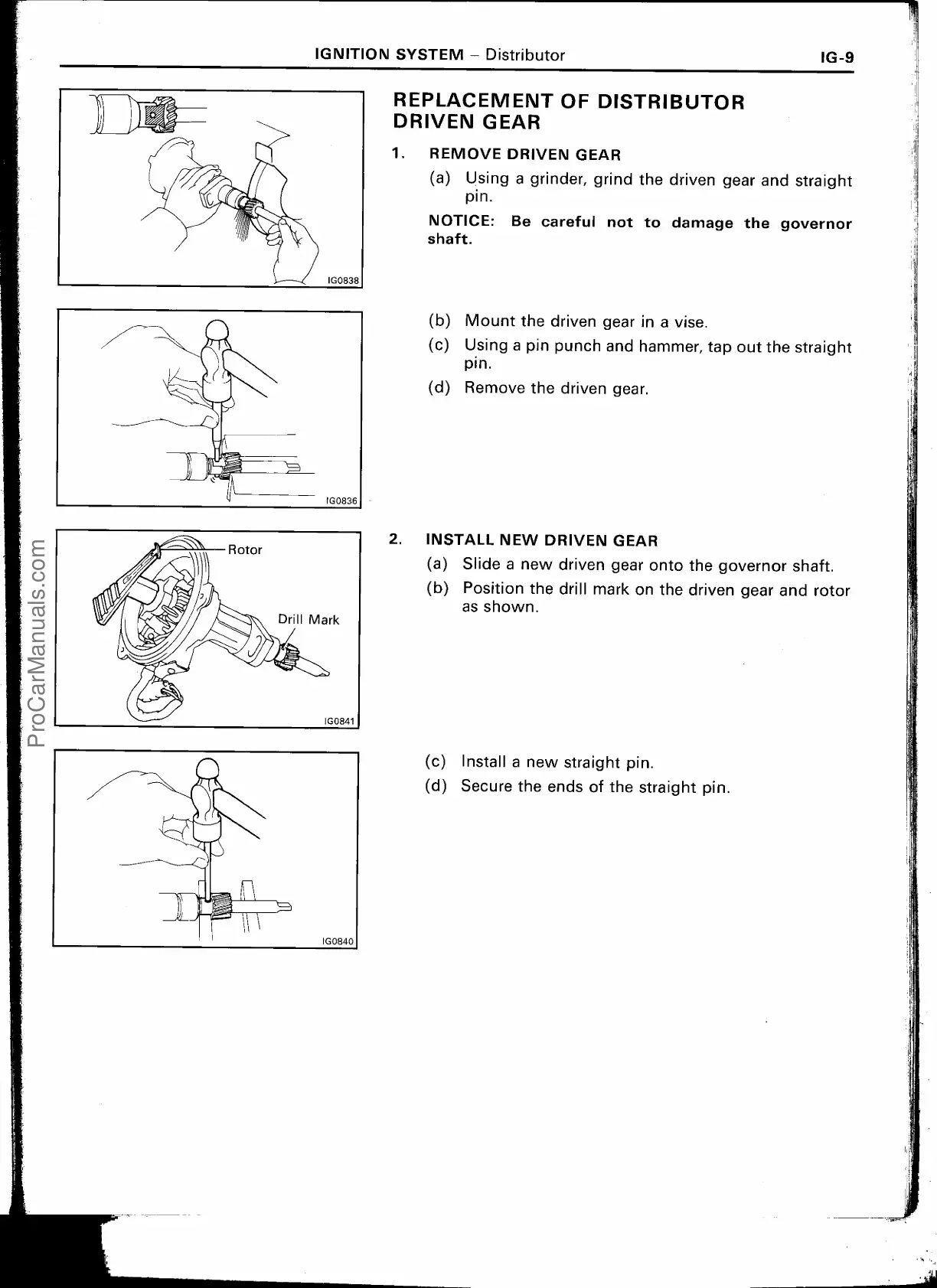

REPLACEMENT OF DISTRIBUTOR
DRIVEN GEAR
1.
REMOVE DRIVEN GEAR
(a)
Using a grinder, grind the driven gear and straight
pin.
NOTICE: Be careful not to damage the governor
shaft.
(b)
Mount the driven gear in a vise.
(c)
Using a pin punch and hammer, tap out the straight
pin.
(d)
Remove the driven gear.
2.
INSTALL NEW DRIVEN GEAR
(a)
Slide a new driven gear onto the governor shaft.
(b)
Position the drill mark on the driven gear and rotor
as shown.
(c)
Install a new straight pin.
(d)
Secure the ends of the straight pin.
