Toyota 3F-E - Location of Electronic Control Parts

EFI
S
Y
S
TEM —
Electronic Control System
FI-69
ELECTRONIC CONTROL SYSTEM

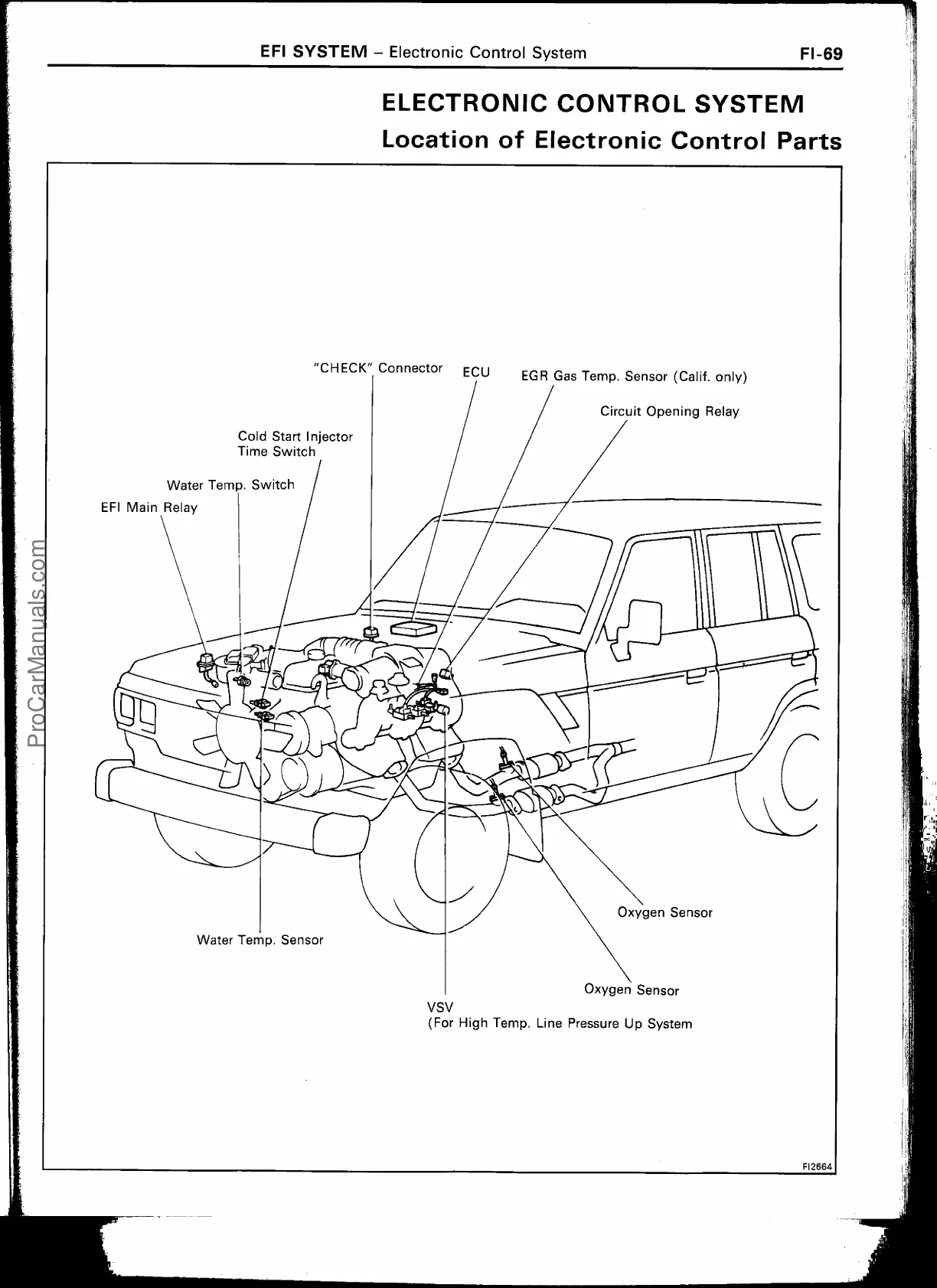

Location of Electronic Control Parts
"CHECK" Connector
ECU
EGR Gas Temp. Sensor (Calif. only)
Circuit Opening Relay
Cold Start Injector
Time Switch
Water Temp. Switch
EFI Main Relay
Oxygen Sensor
Water Temp. Sensor
Oxygen Sensor
VSV
(For High Temp. Line Pressure Up System
F12664
