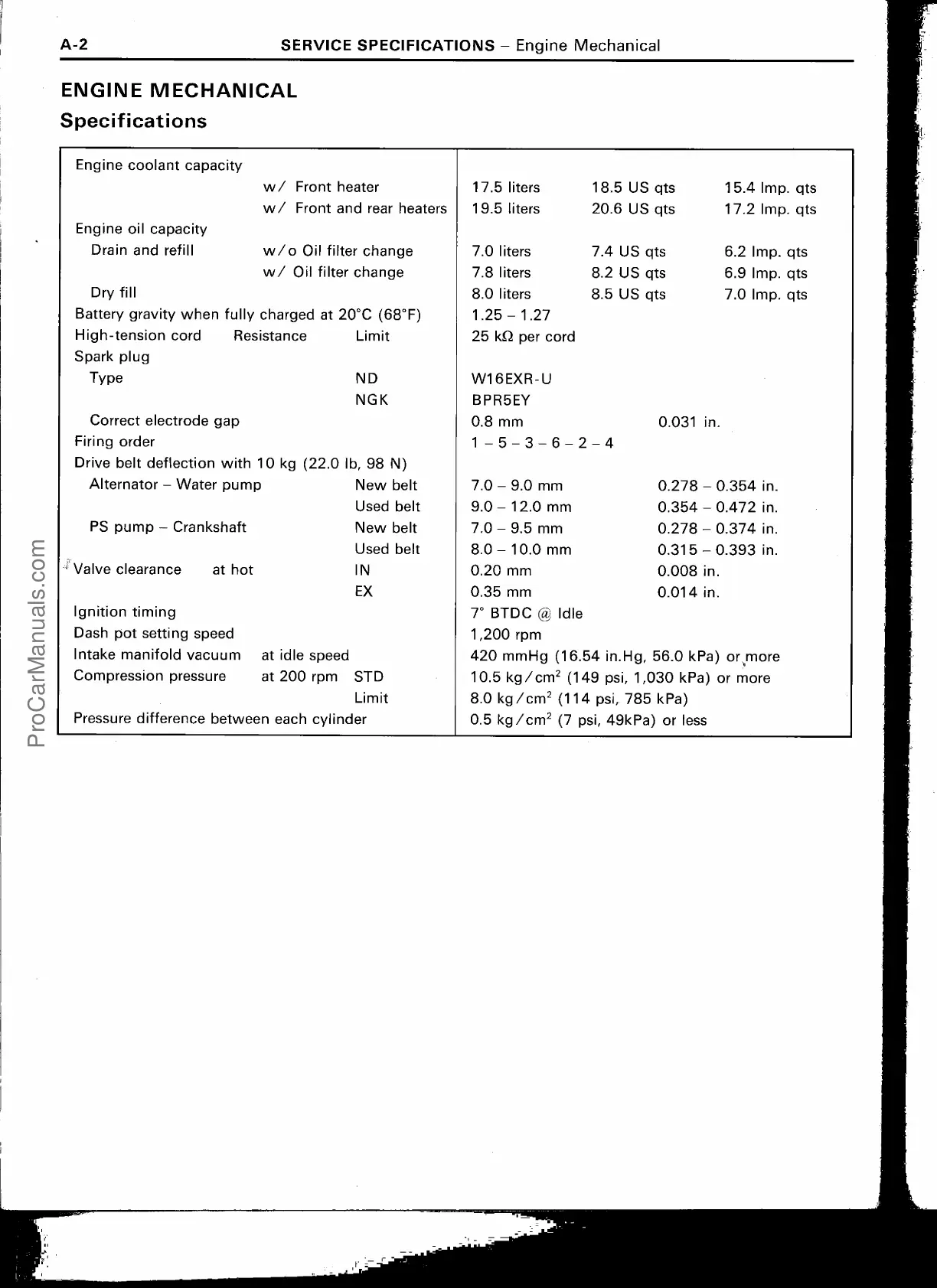

Toyota 3F-E - ENGINE MECHANICAL Specifications

A-2
SERVICE SPECIFICATIONS -
Engine Mechanical
ENGINE MECHANICAL
Specifications
Engine coolant capacity
w/ Front heater
17.5 liters
18.5 US qts
1
5.4 Imp. qts
w/ Front and rear heaters
1 9.5 liters
20.6 US qts
1 7.2 Imp. qts
Engine oil capacity
Drain and refill
w/o Oil filter change
w/ Oil filter change
Dry fill
Battery gravity when fully charged at 20°C (68°F)
High-tension cord
Resistance
Limit
Spark plug
Type
ND
NGK
Correct electrode gap
Firing order
Drive belt deflection with 10 kg (22.0 Ib, 98 N)
Alternator - Water pump
New belt
Used belt
PS pump - Crankshaft
New belt
Used belt
Valve clearance
at hot
IN
EX
Ignition timing
Dash pot setting speed
Intake manifold vacuum
at idle speed
Compression pressure
at 200 rpm STD
Limit
Pressure difference between each cylinder
7.0 liters 7.4 US qts 6.2 Imp. qts
7.8 liters
8.2 US qts
6.9 Imp. qts
8.0 liters
8.5 US qts 7.0 Imp. qts
1 .25 - 1.27
25 k52 per cord
W16EXR-U
BPR5EY
0.8 mm
0.031 in.
1
-5-3-6-2-4
7.0 - 9.0 mm
0.278 - 0.354 in.
9.0 - 12.0 mm
0.354 - 0.472 in.
7.0-9.5 mm
0.278-0.374 in.
8.0-10.0 mm
0.315-0.393 in.
0.20 mm
0.008 in.
0.35 mm
0.014 in.
7° BTDC
L
Idle
1,200 rpm
420 mmHg (16.54 in.Hg, 56.0 kPa) or more
10.5 kg/cm
2
(149 psi, 1,030 kPa) or more
8.0 kg/cm
2
(114 psi, 785 kPa)
0.5 kg/cm
2
(7 psi, 49kPa) or less
