Toyota 3F-E - ON-VEHICLE INSPECTION

CH0625

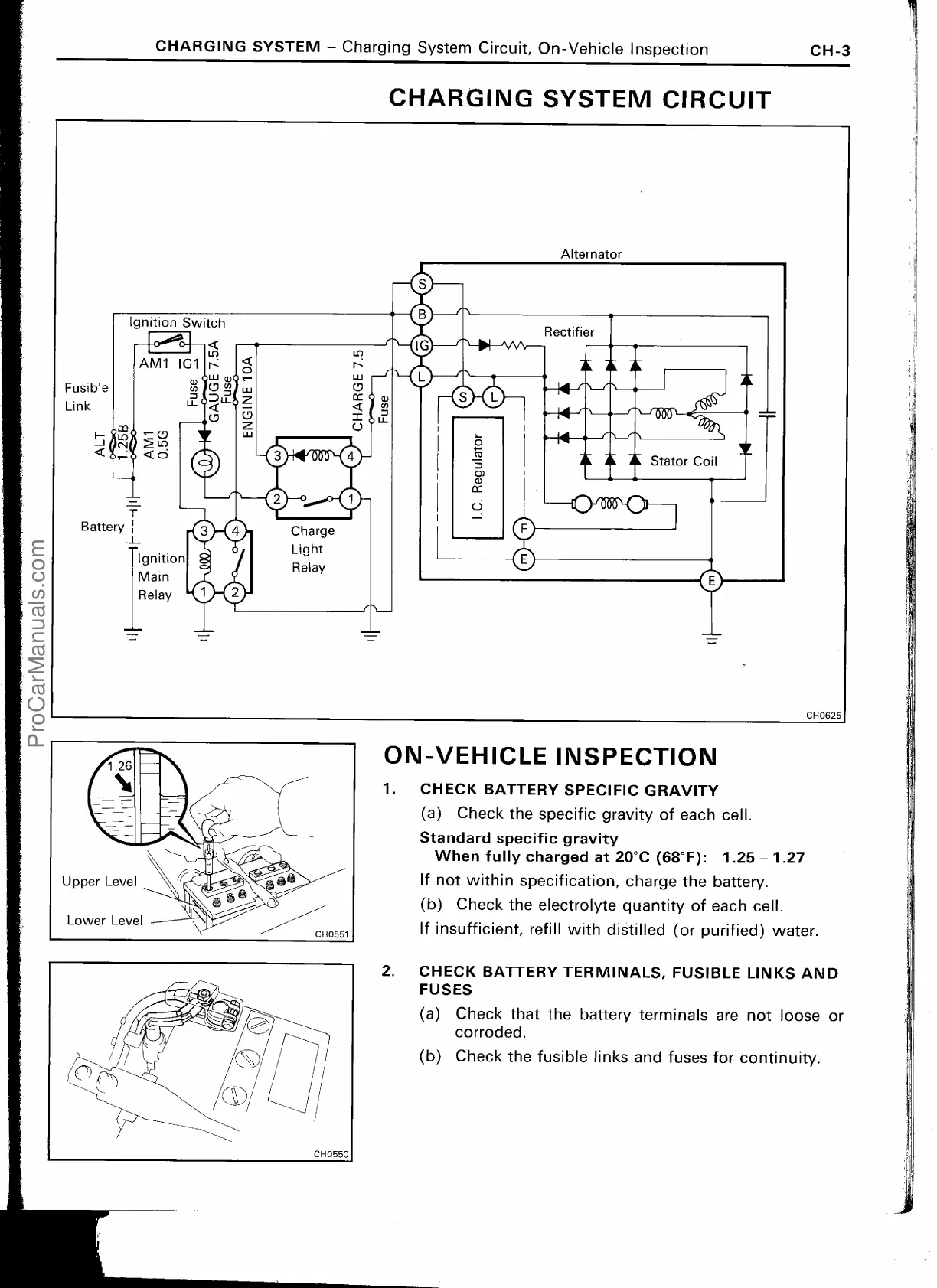

CHARGING SYSTEM — Charging System Circuit, On-Vehicle Inspection
CH-3
CHARGING SYSTEM CIRCUIT
Alternator
Fusible
Link
Battery
T
Ignition
Main
Relay
•m
•
I NI
• <6
0 0
0°4
Rectifier
. 6:40
"Wiln
ri
8
Mid
11
Stator Coil
,
0 . 0
6
le
efi •
0
Charge
Light
Relay
ON-VEHICLE INSPECTION
1.
CHECK BATTERY SPECIFIC GRAVITY
(a)
Check the specific gravity of each cell.
Standard specific gravity
When fully
charged at
20°C (68°F): 1.25 — 1.27
If not within specification, charge the battery.
(b)
Check the electrolyte quantity of each cell.
If insufficient, refill with distilled (or purified) water.
2.
CHECK BATTERY TERMINALS, FUSIBLE LINKS AND
FUSES
(a)
Check that the battery terminals are not loose or
corroded.
(b)
Check the fusible links and fuses for continuity.
