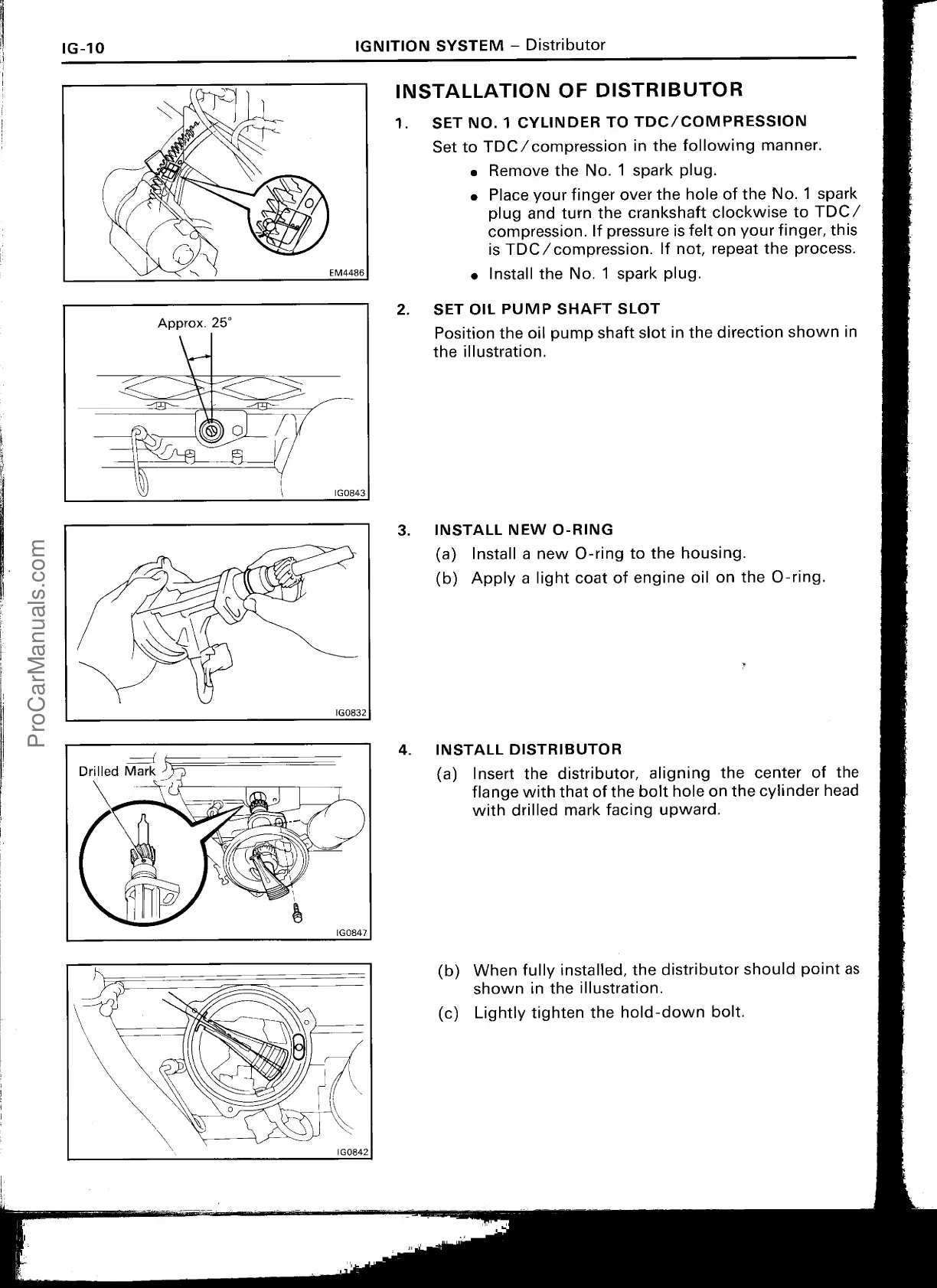

IGNITION SYSTEM — Distributor
I
NSTALLATION OF DISTRIBUTOR
1.
SET NO. 1 CYLINDER TO TDC/COMPRESSION
Set to TDC /compression in the following manner.
•
Remove the No. 1 spark plug.
•
Place your finger over the hole of the No. 1 spark
plug and turn the crankshaft clockwise to TDC/
compression. If pressure is felt on your finger, this
is TDC / compression. If not, repeat the process.
•
Install the No. 1 spark plug.
2.
SET OIL PUMP SHAFT SLOT
Position the oil pump shaft slot in the direction shown in
the illustration.
3.
INSTALL NEW 0-RING
(a)
Install a new 0-ring to the housing.
(b)
Apply a light coat of engine oil on the 0-ring.
4.
INSTALL DISTRIBUTOR
(a) Insert the distributor, aligning the center of the
flange with that of the bolt hole on the cylinder head
with drilled mark facing upward.
(b)
When fully installed, the distributor should point as
shown in the illustration.
(c)
Lightly tighten the hold-down bolt.
