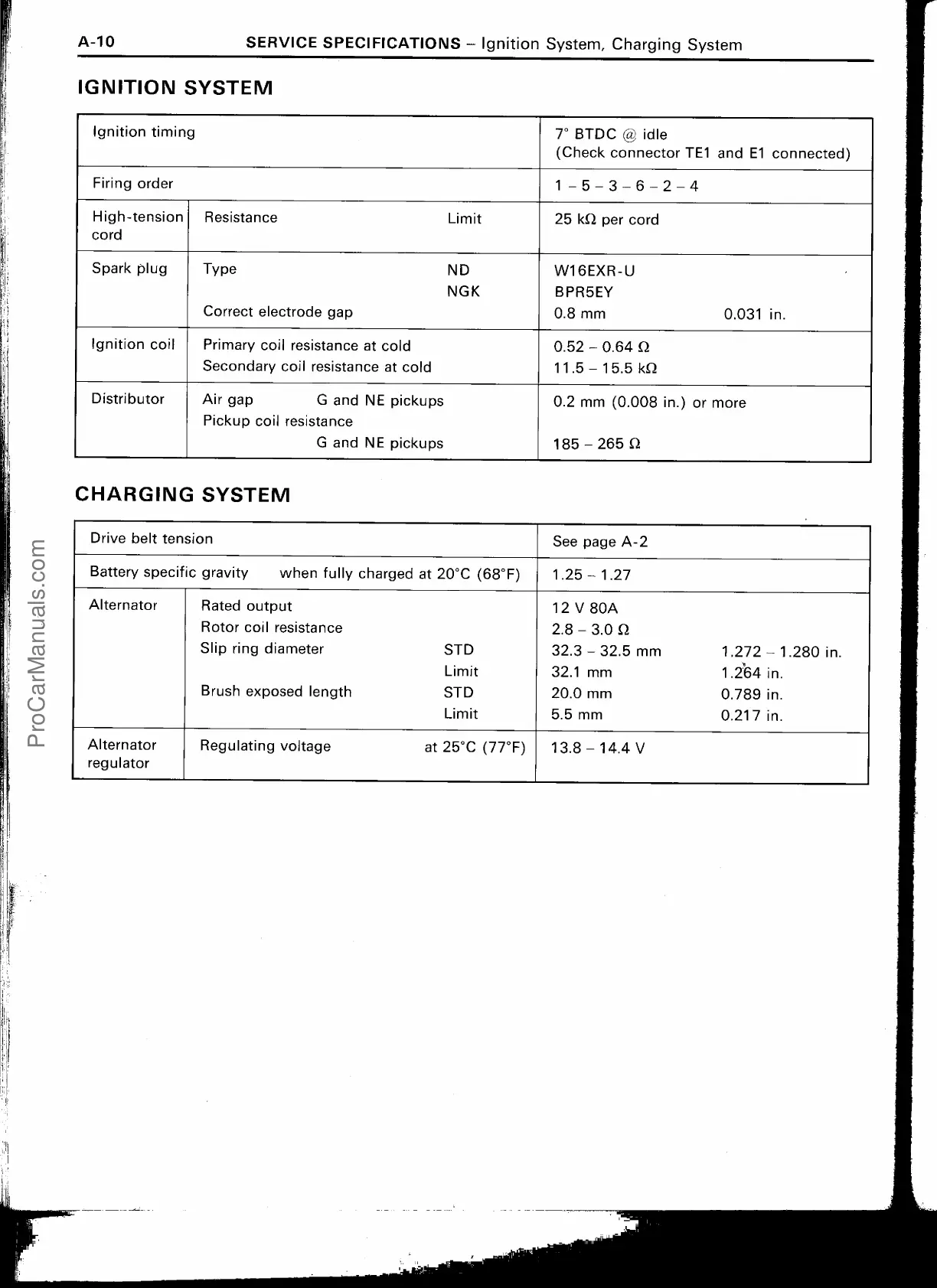

Toyota 3F-E - Charging System; Ignition System

A-10
SERVICE SPECIFICATIONS —
Ignition System, Charging System
1"
I
GNITION SYSTEM
Ignition timing
7° BTDC @ idle
(Check connector TE1 and El connected)
Firing order
1 —5-3-6-2-4
High-tension
Resistance
Limit
25 kQ per cord
cord
Spark plug
Type
ND
W16EXR-U
NGK
BPR5EY
Correct electrode gap
0.8 mm
0.031 in.
Ignition coil
Primary coil resistance at cold
0.52 — 0.64 S2
Secondary coil resistance at cold
11 .5 — 15.5 k12
Distributor
Air gap
G and NE pickups
0.2 mm (0.008 in.) or more
Pickup coil resistance
G and NE pickups
1 85
265 S2
CHARGING SYST
Drive belt tension
Battery specific gravity
Alternator
Rated o
Rotor cc
Slip rinc
Brush e;
Alternator
Regulati
regulator
