Toyota 3F-E - Removal of Cylinder Head

EM-18
ENGINE MECHANICAL —
Cylinder Head

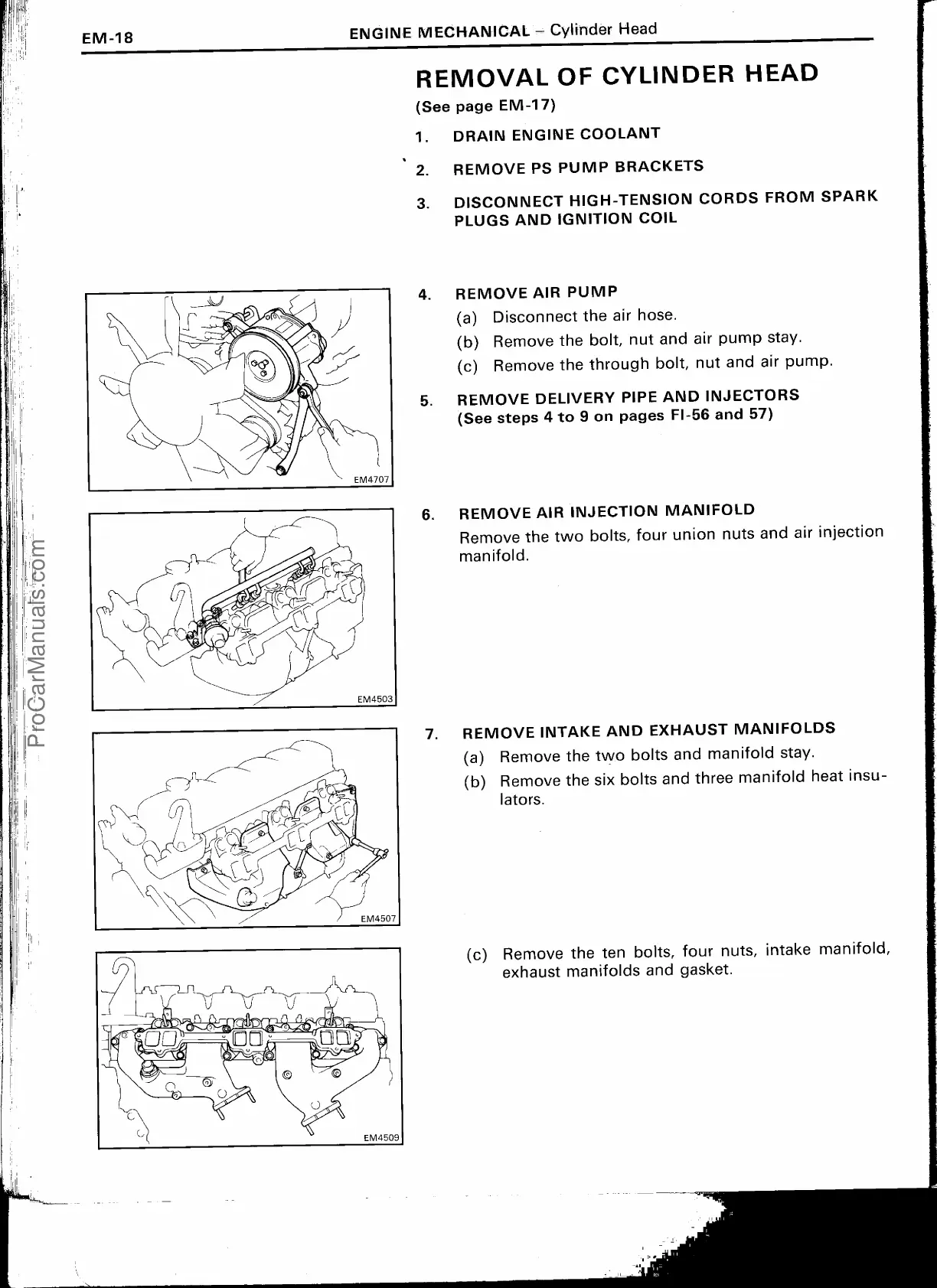

REMOVAL OF CYLINDER HEAD
(See page EM-17)
1.
DRAIN ENGINE COOLANT
2.
REMOVE PS PUMP BRACKETS
3.
DISCONNECT HIGH-TENSION CORDS FROM SPARK
PLUGS AND IGNITION COIL
4.
REMOVE AIR PUMP
(a)
Disconnect the air hose.
(b)
Remove the bolt, nut and air pump stay.
(c)
Remove the through bolt, nut and air pump.
5.
REMOVE DELIVERY PIPE AND INJECTORS
(
See steps 4 to 9 on pages FI-56 and 57)
6.
REMOVE AIR INJECTION MANIFOLD
Remove the two bolts, four union nuts and air injection
manifold.
7.
REMOVE INTAKE AND EXHAUST MANIFOLDS
(a)
Remove the two bolts and manifold stay.
(b)
Remove the six bolts and three manifold heat insu-
lators.
(c) Remove the ten bolts, four nuts, intake manifold,
exhaust manifolds and gasket.
