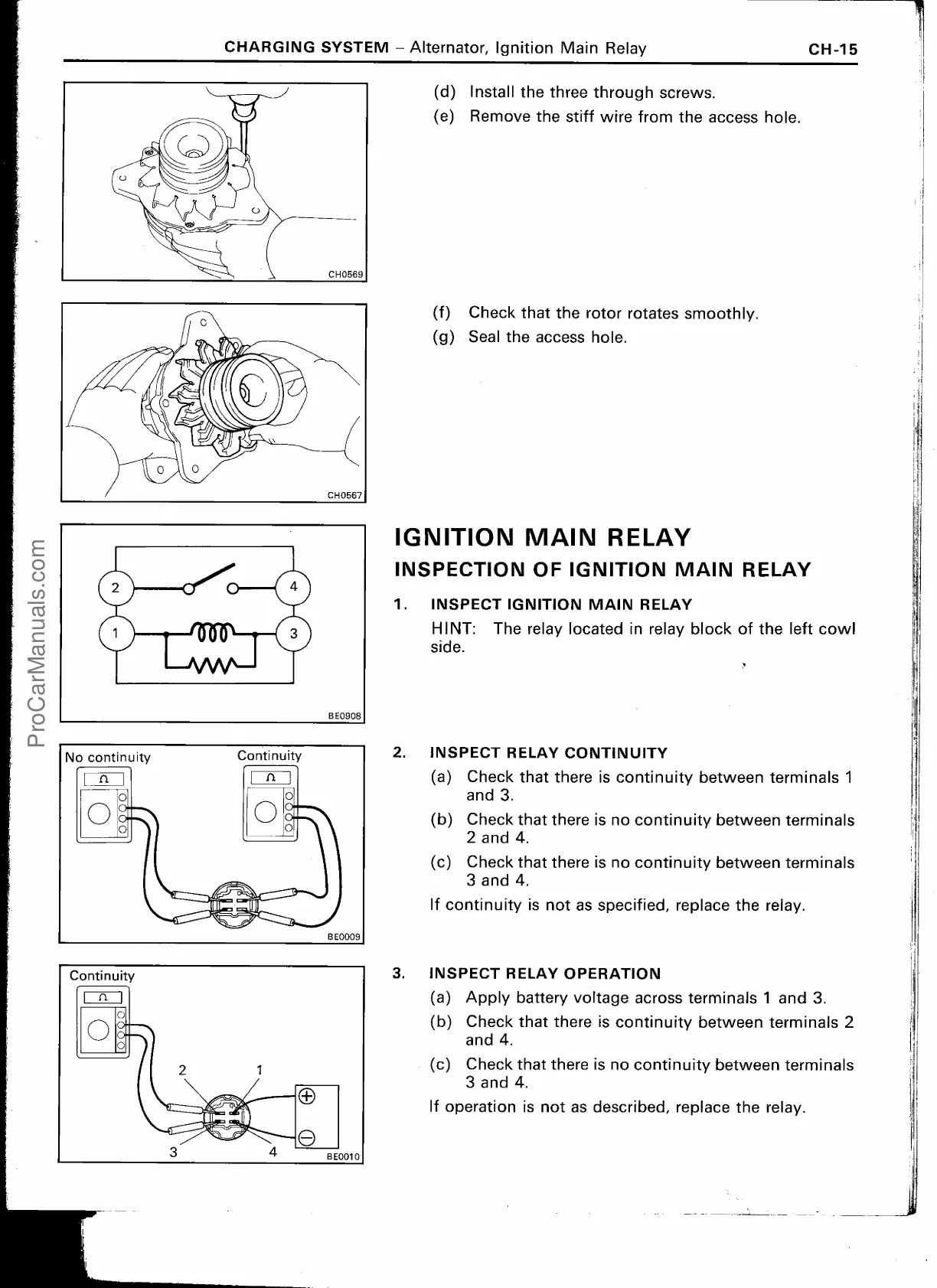

CHARGING SYSTEM —
Alternator, Ignition Main Relay
CH-15
(d)
Install the three through screws.
(e)
Remove the stiff wire from the access hole.
(f)
Check that the rotor rotates smoothly.
(g)
Seal the access hole.
I
GNITION MAIN RELAY
I
NSPECTION OF IGNITION MAIN RELAY
1.
INSPECT IGNITION MAIN RELAY
HINT: The relay located in relay block of the left cowl
side.
2.
INSPECT RELAY CONTINUITY
(a) Check that there is continuity between terminals 1
and 3.
(b) Check that there is no continuity between terminals
2 and 4.
(c) Check that there is no continuity between terminals
3 and 4.
If continuity is not as specified, replace the relay.
3.
INSPECT RELAY OPERATION
(a)
Apply battery voltage across terminals 1 and 3.
(b)
Check that there is continuity between terminals 2
and 4.
(c)
Check that there is no continuity between terminals
3 and 4.
If operation is not as described, replace the relay.
