CH0570
(g)
Slide the fan, pulley and spring washer onto the
rotor shaft.
(h)
Install and torque the nut.
Torque: 900 kg-cm (65 ft-lb, 88 N•m)
I
5.
ASSEMBLE DRIVE END FRAME AND RECTIFIER
END FRAME
(a)
Bend the rectifier lead wires back to clear the rotor.
(b)
Using a curved tool, push the brushes in as far as
they will go and hold them in place by inserting a
stiff wire through the access hole in the rectifier end
frame.
W
CH-14

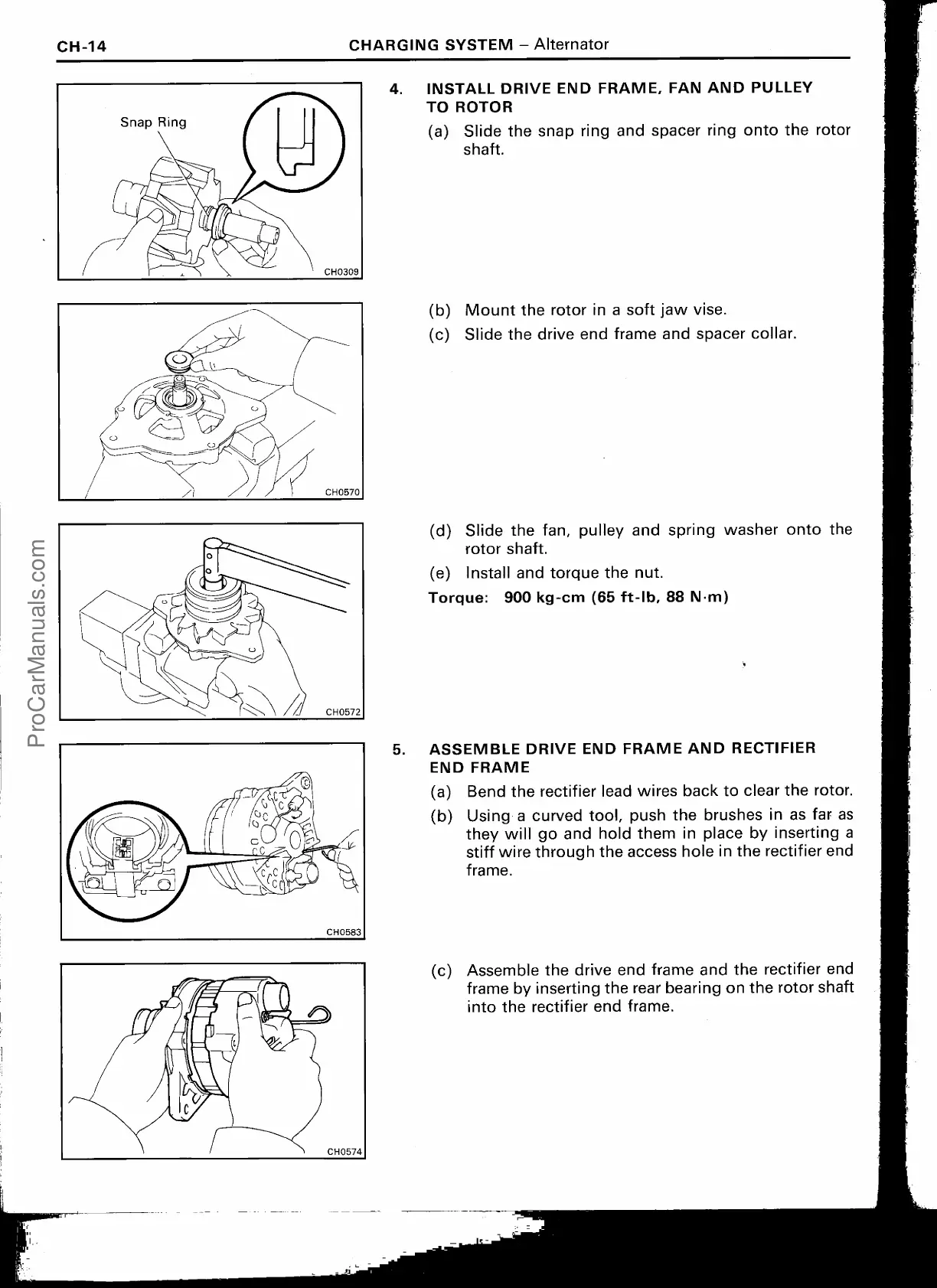

CHARGING SYSTEM — Alternator
4.
INSTALL DRIVE END FRAME, FAN AND PULLEY
TO ROTOR
(a) Slide the snap ring and spacer ring onto the rotor
shaft.
V
309
(b)
Mount the rotor in a soft jaw vise.
(c)
Slide the drive end frame and spacer collar
