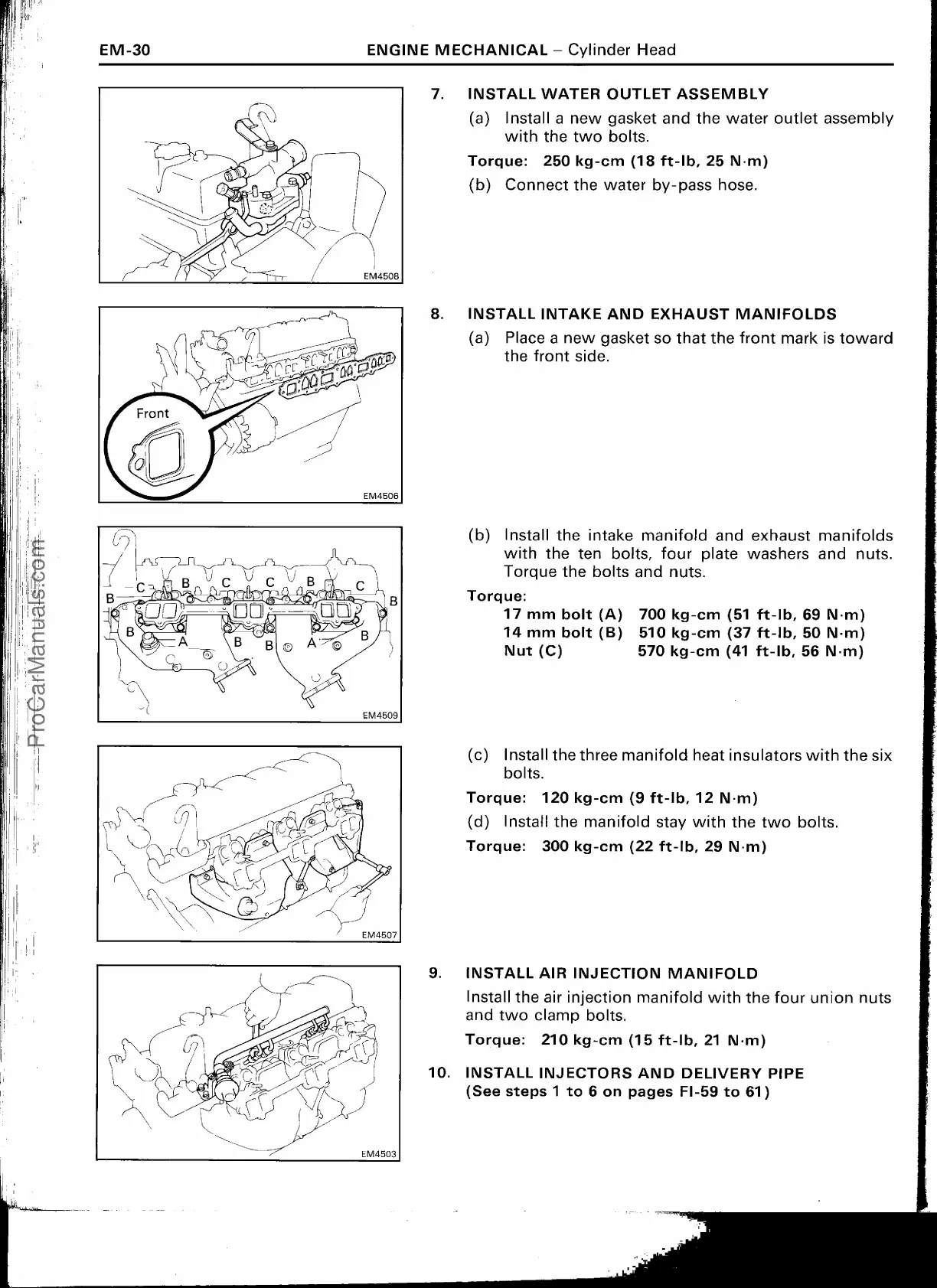

EM-30 ENGINE MECHANICAL — Cylinder Head
7.
INSTALL WATER OUTLET ASSEMBLY
(a) Install a new gasket and the water outlet assembly
with the two bolts.
Torque: 250 kg-cm (18 ft-lb, 25 N•m)
(b) Connect the water by-pass hose.
8. INSTALL INTAKE AND EXHAUST MANIFOLDS
(a) Place a new gasket so that the front mark is toward
the front side.
(b) Install the intake manifold and exhaust manifolds
with the ten bolts, four plate washers and nuts.
Torque the bolts and nuts.
Torque:
17 mm bolt (A) 700 kg-cm (51 ft-lb, 69 N•m)
14 mm bolt (B) 510 kg-cm (37 ft-lb, 50 N•m)
Nut (C)
570 kg-cm (41 ft-lb, 56 N•m)
(c)
Install the three manifold heat insulators with the six
bolts.
Torque: 120 kg-cm (9 ft-lb, 12 N•m)
(d)
Install the manifold stay with the two bolts.
Torque: 300 kg-cm (22 ft-lb, 29 N•m)
9.
INSTALL AIR INJECTION MANIFOLD
Install the air injection manifold with the four union nuts
and two clamp bolts.
Torque: 210 kg-cm (15 ft-lb, 21 N•m)
10. INSTALL INJECTORS AND DELIVERY PIPE
(See steps 1 to 6 on pages FI-59 to 61)
